PPG-16 Series

Catalog

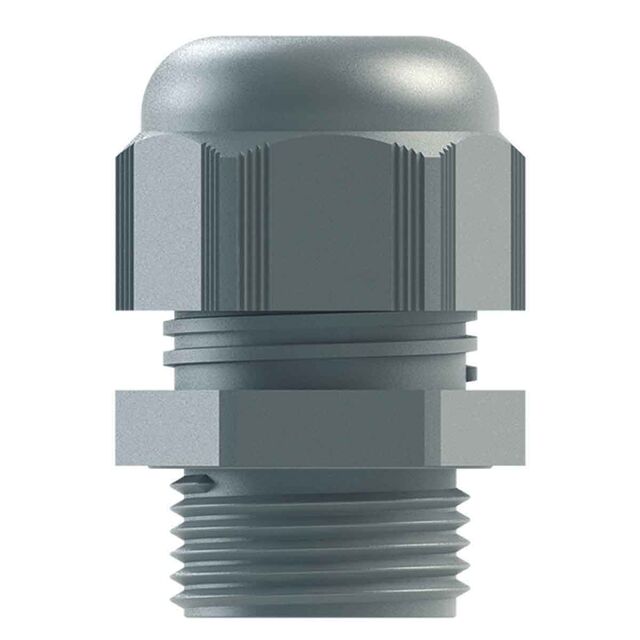

CABLE GLAND 7-12.01MM PG16

Part	Panel Hole Size	Panel Hole Size	Type	Includes	Color	Thread Length	Thread Length	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Outside Cable Diameter (Min)	Outside Cable Diameter (Min)	Ingress Protection	Thread Size
SAB North America PPG-16R	0.886 in	22.5 mm	Cable Gland	Locknut	Gray	0.394 in	10 mm	12.01 mm	0.473 in	-20 ░C	100 °C	7 mm	0.276 in	IP68 - Dust Tight Waterproof	PG16
