FSC Series

Manufacturer: OptiFuse

Catalog

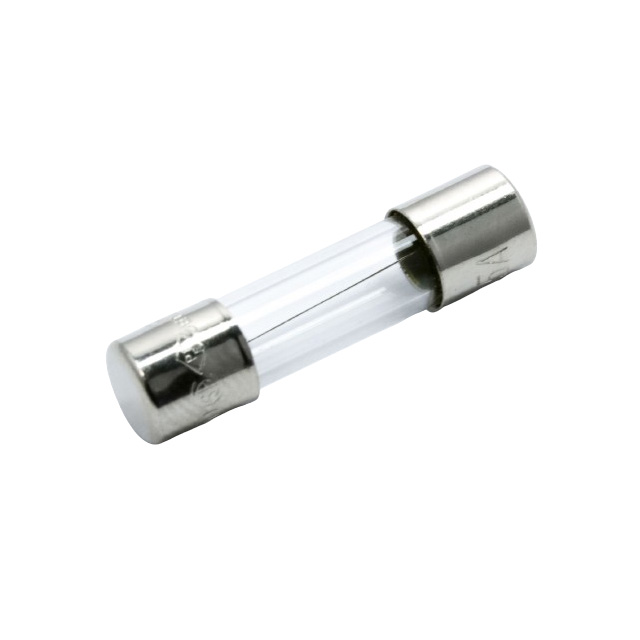

FUSE GLASS 125MA 250VAC 5X20MM

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [x]	Package / Case [y]	Mounting Type	Breaking Capacity @ Rated Voltage	Current Rating (Amps)	Voltage Rating - AC	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Approval Agency	Response Time	Fuse Type	DC Cold Resistance
OptiFuse FSC-125MA	90 °C	-55 C	5 mm	20 mm	Requires Holder	100 A	0.125 Amps	250 V	20 mm	0.205 in	0.787 "	5.2 mm	cULus UL 248	Fast Blow	Cartridge Glass
OptiFuse FSC-6.3A	90 °C	-55 C	5 mm	20 mm	Requires Holder	200 A	6.3 A	250 V	20 mm	0.205 in	0.787 "	5.2 mm	cULus UL 248	Fast Blow	Cartridge Glass	59.24 Ohms
OptiFuse FSC-5A	90 °C	-55 C	5 mm	20 mm	Requires Holder	200 A	5 A	250 V	20 mm	0.205 in	0.787 "	5.2 mm	cULus UL 248	Fast Blow	Cartridge Glass	29.11 Ohms
OptiFuse FSC-18A	90 °C	-55 C	5 mm	20 mm	Requires Holder	1 kA	18 A	250 V	20 mm	0.205 in	0.787 "	5.2 mm	UL 248	Fast Blow	Cartridge Glass
OptiFuse FSC-100MA	90 °C	-55 C	5 mm	20 mm	Requires Holder	100 A	100 mA	250 V	20 mm	0.205 in	0.787 "	5.2 mm	cULus UL 248	Fast Blow	Cartridge Glass
OptiFuse FSC-200MA	90 °C	-55 C	5 mm	20 mm	Requires Holder	100 A	0.2 A	250 V	20 mm	0.205 in	0.787 "	5.2 mm	cULus UL 248	Fast Blow	Cartridge Glass	0.02697 Ohms
OptiFuse FSC-2.5A	90 °C	-55 C	5 mm	20 mm	Requires Holder	100 A	2.5 A	250 V	20 mm	0.205 in	0.787 "	5.2 mm	cULus UL 248	Fast Blow	Cartridge Glass	5.761 Ohms
OptiFuse FSC-3.15A	90 °C	-55 C	5 mm	20 mm	Requires Holder	100 A	3.15 A	250 V	20 mm	0.205 in	0.787 "	5.2 mm	cULus UL 248	Fast Blow	Cartridge Glass	9.835 Ohms
OptiFuse FSC-300MA	90 °C	-55 C	5 mm	20 mm	Requires Holder	100 A	0.3 A	250 V	20 mm	0.205 in	0.787 "	5.2 mm	cULus UL 248	Fast Blow	Cartridge Glass	0.04045 Ohms
OptiFuse FSC-315MA	90 °C	-55 C	5 mm	20 mm	Requires Holder	100 A	0.315 A	250 V	20 mm	0.205 in	0.787 "	5.2 mm	cULus UL 248	Fast Blow	Cartridge Glass	0.04247 Ohms
