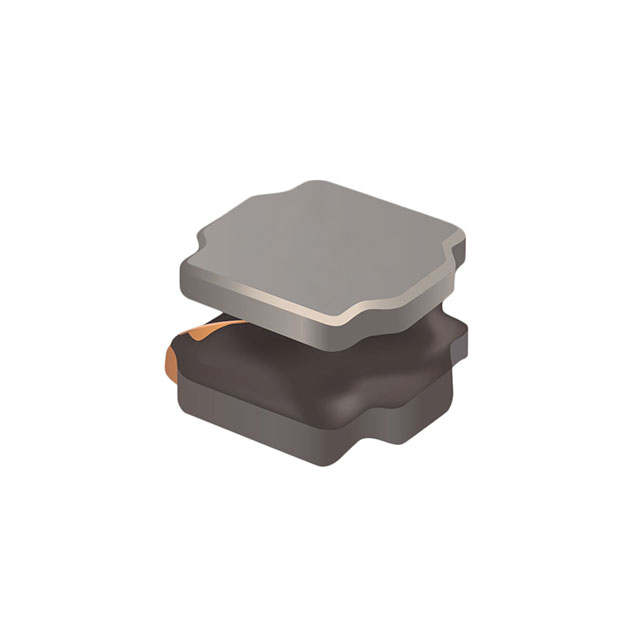

SRN6045TA Series

Catalog

POWER INDUCTOR, 82UH, SEMISHIELDED, 9.8A ROHS COMPLIANT: YES

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	DC Resistance (DCR)	Shielding	Current Rating (Amps)	Frequency - Self Resonant	Type	Ratings	Inductance Frequency - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Core	Package / Case	Inductance	Tolerance	Q @ Freq	Current - Saturation (Isat)
Bourns Inc. SRN6045TA-820M	0.236 "	6 mm	0.236 in	6 mm	Surface Mount	365 mOhm	Shielded	0.98 A	9 MHz	Drum Core Wirewound	AEC-Q200	1 MHz	4.5 mm	0.177 in	-55 C	125 °C	Ferrite	Nonstandard	82 µH	20 %	1 MHz 15
Bourns Inc. SRN6045TA-3R3Y	0.236 "	6 mm	0.236 in	6 mm	Surface Mount	21 mOhm	Shielded	5 A	45 MHz	Drum Core Wirewound	AEC-Q200	1 MHz	4.5 mm	0.177 in	-55 C	125 °C	Ferrite	Nonstandard	3.3 µH	30 %	1 MHz 15	7.8 A
Bourns Inc. SRN6045TA-4R7M	0.236 "	6 mm	0.236 in	6 mm	Surface Mount	26 mOhm	Shielded	4.5 A	40 MHz	Drum Core Wirewound	AEC-Q200	1 MHz	4.5 mm	0.177 in	-55 C	125 °C	Ferrite	Nonstandard	4.7 ÁH	20 %	1 MHz 15	6.8 A
Bourns Inc. SRN6045TA-101M	0.236 "	6 mm	0.236 in	6 mm	Surface Mount	456 mOhm	Shielded	920 mA	8.5 MHz	Drum Core Wirewound	AEC-Q200	1 MHz	4.5 mm	0.177 in	-55 C	125 °C	Ferrite	Nonstandard	100 µH	20 %	1 MHz 15	1.33 A
Bourns Inc. SRN6045TA-100M	0.236 "	6 mm	0.236 in	6 mm	Surface Mount	52 mOhm	Shielded	3.2 A	25 MHz	Drum Core Wirewound	AEC-Q200	1 MHz	4.5 mm	0.177 in	-55 C	125 °C	Ferrite	Nonstandard	10 µH	20 %	1 MHz 15	4.6 A
Bourns Inc. SRN6045TA-221M	0.236 "	6 mm	0.236 in	6 mm	Surface Mount	900 mOhm	Shielded	600 mA	5 MHz	Drum Core Wirewound	AEC-Q200	1 MHz	4.5 mm	0.177 in	-55 C	125 °C	Ferrite	Nonstandard	220 µH	20 %	1 MHz 15	880 mA
