320567 Series

Catalog

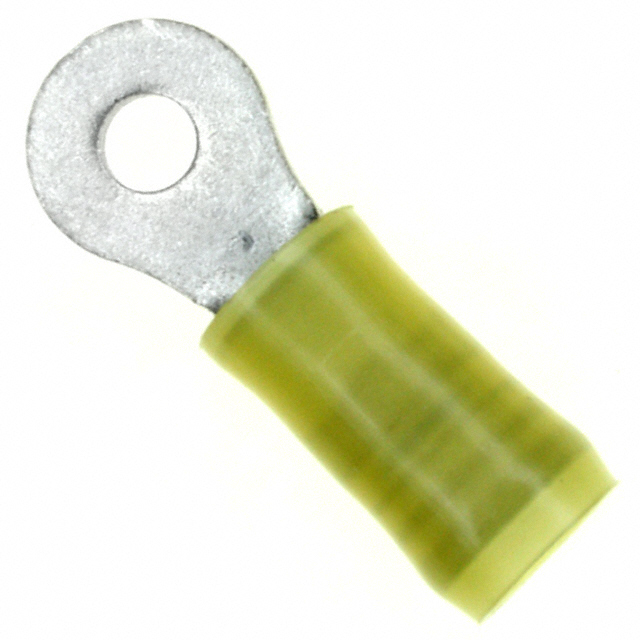

CONN RING CIRC 10-12AWG #6 CRIMP

Part	Color	Contact Material	Material - Insulation	Stud/Tab Size	Wire Gauge [Max]	Wire Gauge [Min]	Thickness	Thickness	Terminal Type	Features	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Overall [x]	Length - Overall [x]	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Termination	Insulation	Contact Finish	Mounting Type
TE Connectivity Raychem Cable Protection 8-320567-2	Yellow	Copper	Nylon Polyamide (PA)	6 Stud	12 AWG	10 AWG	0.04 in	1.02 mm	Circular	Serrated Termination	0.375 in	9.53 mm	27.51 mm	1.083 in	0.15 "	3.81 mm	0.23 in	5.84 mm	Crimp	Insulated	Tin	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 2-320567-2	Yellow	Copper	Nylon Polyamide (PA)	6 Stud	12 AWG	10 AWG	0.04 in	1.02 mm	Circular	Serrated Termination	0.375 in	9.53 mm	27.51 mm	1.083 in	0.15 "	3.81 mm	0.23 in	5.84 mm	Crimp	Insulated	Tin	Free Hanging (In-Line)
