TV05 Series
Manufacturer: Amphenol Anytek
Beta
⌘K

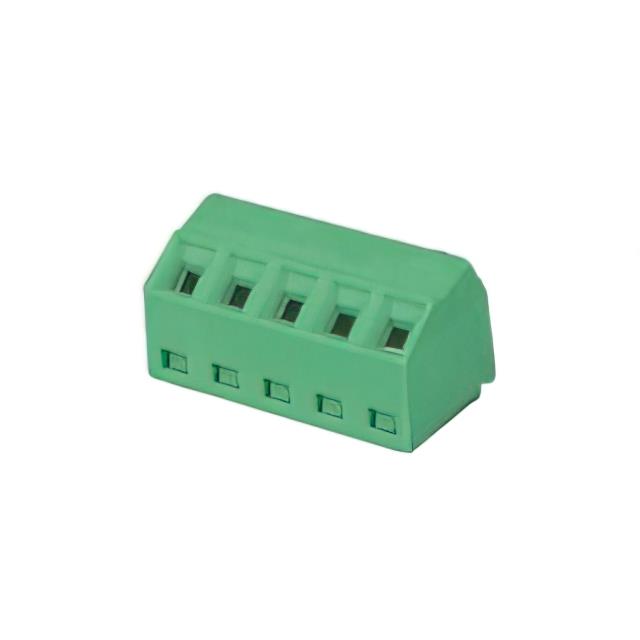

TERM BLOCK 5POS 55DEG 3.5MM PCB
| Part | Mating Orientation | Mating Orientation | Wire Gauge [Max] | Wire Gauge [Min] | Current | Color | Screw Material - Plating | Positions Per Level | Mounting Type | Screw Thread | Clamp Material - Plating | Torque - Screw | Torque - Screw | Voltage | Pitch [x] | Pitch [x] | Number of Levels | Housing Material | Wire Termination | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Anytek | 125 ° | 55 ° | 28 AWG | 16 AWG | 10 A | Green | Steel Zinc Plated | 5 | Through Hole | M2 | Brass - Nickel Plated | 0.2 Nm | 1.7 Lb-In | 300 V | 3.5 mm | 0.138 in | 1 | Thermoplastic | Screw - Rising Cage Clamp | -40 °C | 115 °C |
