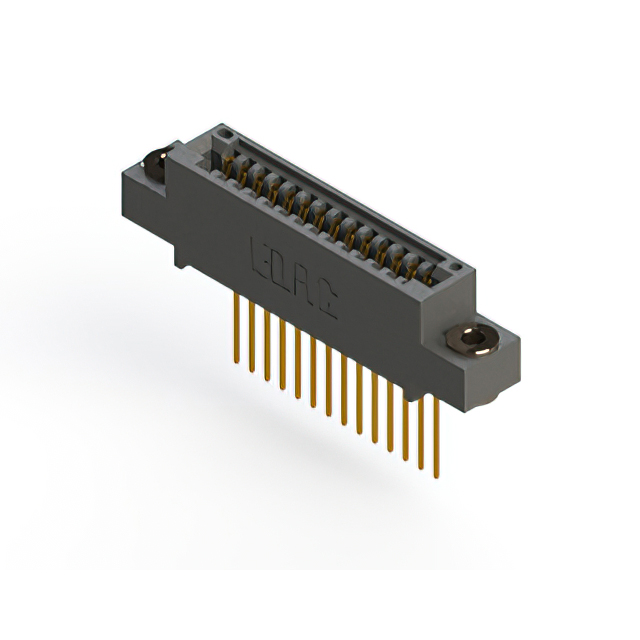

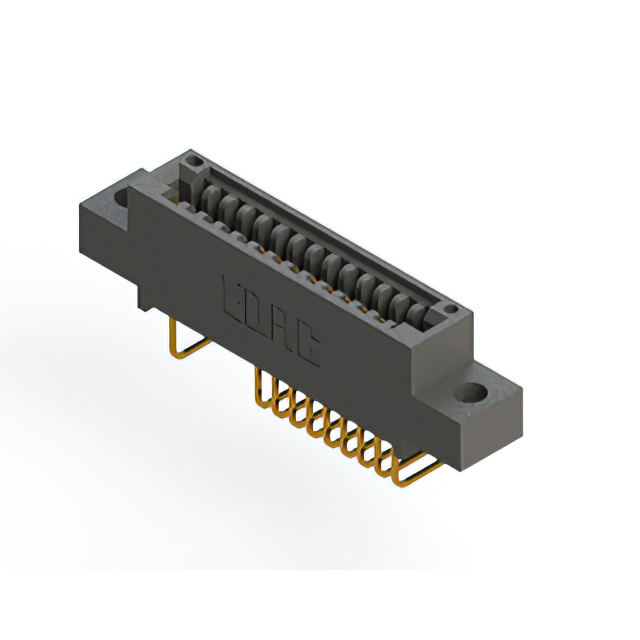

395-014 Series
Manufacturer: EDAC Inc.
Beta
⌘K
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
| Part | Material - Insulation | Termination Rows | Flange Feature | Number of Positions | Features | Card Thickness [Max] | Card Thickness [Min] | Contact Material | Pitch | Pitch | Color | Termination | Number of Positions/Bay/Row | Contact Type | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Card Type | Number of Rows | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Read Out | Termination Rows [custom] | Flange Feature [diameter] | Flange Feature [diameter] | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | 4-40 Threaded Insert Top Mount Opening | 14 | Card Guides | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 0.1 " | 2.54 mm | Black | Solder | 14 | Cantilever | Right Angle Through Hole | 0.25 Ám | 10 Áin | Non Specified - Single Edge | 1 | Gold | -40 C | 105 ░C | Female | Single | ||||
 EDAC Inc. | Polyester Thermoplastic | Floating Bobbin Flush Mount | 14 | Card Extender | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 0.1 " | 2.54 mm | Black | Solder | 7 | Cantilever | Board Edge Straddle Mount | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Gold | -40 C | 105 ░C | Female | Dual | 2 | 0.116 " | 2.95 mm | 2 | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 4-40 Threaded Insert Top Mount Opening | 14 | Card Guides | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 0.1 " | 2.54 mm | Black | Wire Wrap | 14 | Cantilever | Through Hole | 0.25 Ám | 10 Áin | Non Specified - Single Edge | 1 | Gold | -40 C | 105 ░C | Female | Single | ||||
 EDAC Inc. | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | 14 | Card Extender Card Guides | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 0.1 " | 2.54 mm | Black | Solder | 7 | Cantilever | Board Edge Straddle Mount | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Gold | -40 C | 105 ░C | Female | Dual | 2 | 2 | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 4-40 Flush Mount Threaded Insert Top Opening | 14 | Card Guides | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 0.1 " | 2.54 mm | Black | Solder | 14 | Cantilever | Right Angle Through Hole | 0.25 Ám | 10 Áin | Non Specified - Single Edge | 1 | Gold | -40 C | 105 ░C | Female | Single | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Flush Mount Top Opening Unthreaded | 14 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 0.1 " | 2.54 mm | Black | Solder | 14 | Cantilever | Through Hole | 0.25 Ám | 10 Áin | Non Specified - Single Edge | 1 | Gold | -40 C | 105 ░C | Female | Single | 0.128 " | 3.25 mm | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 14 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 0.1 " | 2.54 mm | Black | Solder | 14 | Cantilever | Right Angle Through Hole | 0.25 Ám | 10 Áin | Non Specified - Single Edge | 1 | Gold | -40 C | 105 ░C | Female | Single | 0.156 " | 3.96 mm | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 4-40 Threaded Insert Top Mount Opening | 14 | Card Guides | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 0.1 " | 2.54 mm | Black | Solder | 14 | Cantilever | Through Hole | 0.25 Ám | 10 Áin | Non Specified - Single Edge | 1 | Gold | -40 C | 105 ░C | Female | Single | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Floating Bobbin Top Mount Opening | 14 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 0.1 " | 2.54 mm | Black | Solder | 14 | Cantilever | Through Hole | 0.25 Ám | 10 Áin | Non Specified - Single Edge | 1 | Gold | -40 C | 105 ░C | Female | Single | 0.116 " | 2.95 mm | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Side Mount Opening Unthreaded | 14 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 0.1 " | 2.54 mm | Black | Solder | 14 | Cantilever | Right Angle Through Hole | 0.25 Ám | 10 Áin | Non Specified - Single Edge | 1 | Gold | -40 C | 105 ░C | Female | Single | 0.128 " | 3.25 mm |
