6GG5E Series

Catalog

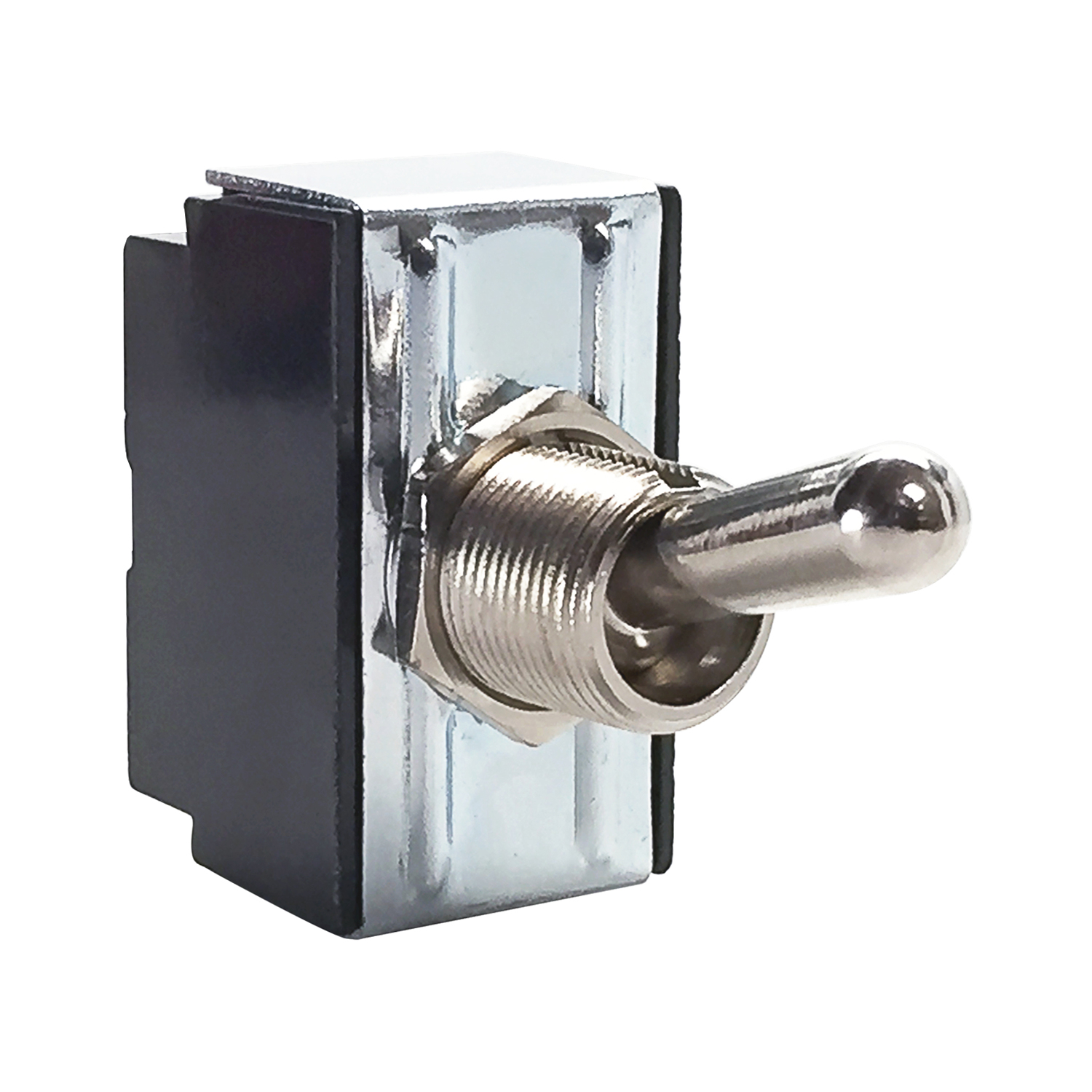

TOGGLE SWITCH, BAT STYLE, (ON)-ON-OFF, (ON)-NONE-OFF, DPDT, NON ILLUMINATED, G SERIES, PANEL MOUNT

Part	Voltage Rating - AC	Circuit	Bushing Thread	Actuator Type	Illumination	Termination Style	Operating Temperature [Max]	Current Rating (Amps)	Electrical Life	Switch Function	Panel Cutout Dimensions [diameter]	Actuator Length [x]
Carling Technologies 6GG5E-73	125 V	DPDT	15/32-32	Standard Round	Non-Illuminated	Screw Terminal	85 °C	15 A	25000 Steps	Mom-On-Off	12.7 mm	17.45 mm
Carling Technologies 6GG5E-78/2 HEX	125 V	DPDT	15/32-32	Standard Round	Non-Illuminated	Screw Terminal	85 °C	15 A	25000 Steps	Mom-On-Off	12.7 mm	17.45 mm
Carling Technologies 6GG5E-D-4B-B	125 V	DPDT	15/32-32	Paddle	Non-Illuminated	Screw Terminal	85 °C	15 A	25000 Steps	Mom-On-Off	12.7 mm	17.45 mm
