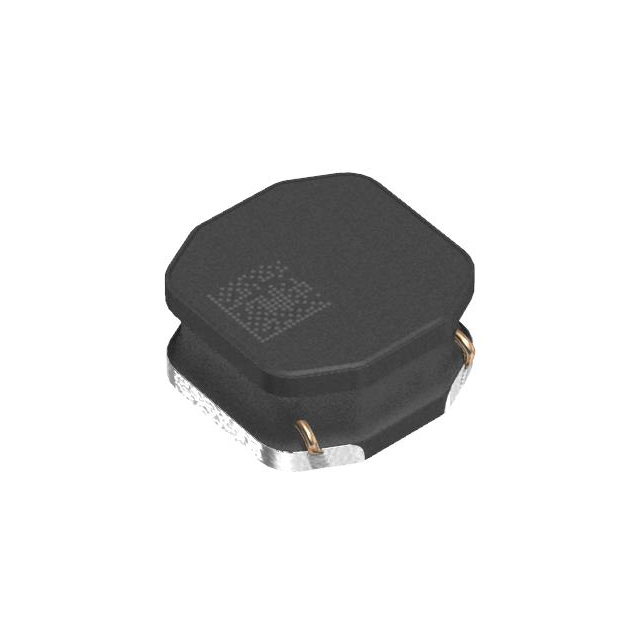

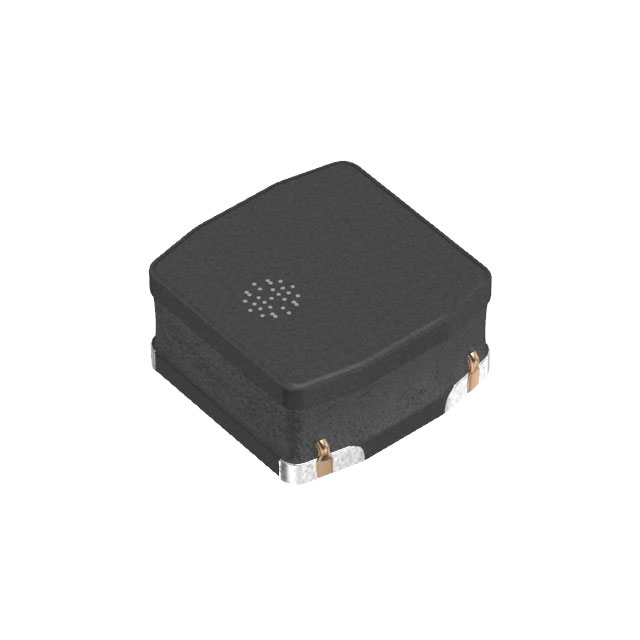

VLS3015CX Series
Manufacturer: TDK Corporation
Beta
⌘K
FIXED IND 1UH 3.33A 0.042OHM SMD
| Part | Current Rating (Amps) | Shielding | Inductance | Supplier Device Package | Current - Saturation (Isat) | Tolerance | DC Resistance (DCR) [Max] | Material - Core | Inductance Frequency - Test | Type | Operating Temperature [Min] | Operating Temperature [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Package / Case | Mounting Type | Ratings | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 3.33 A | Shielded | 1 µH | 3015 | 2.59 A | 20 % | 42 mOhm | Ferrite | 1 MHz | Drum Core Wirewound | -40 C | 105 ░C | 0.059 " | 1.5 mm | 3 mm | 0.118 in | 3 mm | 0.118 " | Nonstandard | Surface Mount | ||
TDK Corporation | 1.17 A | Shielded | 10 µH | 3015 | 920 mA | 20 % | 287 mOhm | Ferrite | 1 MHz | Drum Core Wirewound | -40 C | 105 ░C | 0.059 " | 1.5 mm | 3 mm | 0.118 in | 3 mm | 0.118 " | Nonstandard | Surface Mount | ||
 TDK Corporation | 2.4 A | Shielded | 1.5 µH | 3015 | 1.73 A | 20 % | 54 mOhm | Ferrite | 1 MHz | Drum Core Wirewound | -40 C | 125 °C | 0.059 " | 1.5 mm | 3 mm | 0.118 in | 3 mm | 0.118 " | Nonstandard | Surface Mount | AEC-Q200 | |
TDK Corporation | 0.87 A | Shielded | 22 µH | 3015 | 570 mA | 20 % | 496 mOhm | Ferrite | 1 MHz | Drum Core Wirewound | -40 C | 105 ░C | 0.059 " | 1.5 mm | 3 mm | 0.118 in | 3 mm | 0.118 " | Nonstandard | Surface Mount | ||
 TDK Corporation | 0.5 A | Shielded | 68 µH | 3015 | 320 mA | 20 % | 1.657 Ohm | Ferrite | 1 MHz | Drum Core Wirewound | -40 C | 105 ░C | 0.059 " | 1.5 mm | 3 mm | 0.118 in | 3 mm | 0.118 " | Nonstandard | Surface Mount | ||
TDK Corporation | 1.67 A | Shielded | 4.7 ÁH | 3015 | 1.37 A | 20 % | 137 mOhm | Ferrite | 1 MHz | Drum Core Wirewound | -40 C | 105 ░C | 0.059 " | 1.5 mm | 3 mm | 0.118 in | 3 mm | 0.118 " | Nonstandard | Surface Mount | ||
 TDK Corporation | 2.03 A | Shielded | 3.3 µH | 3015 | 1.66 A | 20 % | Ferrite | 1 MHz | Drum Core Wirewound | -40 C | 105 ░C | 0.059 " | 1.5 mm | 3 mm | 0.118 in | 3 mm | 0.118 " | Nonstandard | Surface Mount | 100 mOhm | ||
TDK Corporation | 0.84 A | Shielded | 15 µH | 3015 | 570 mA | 20 % | 428 mOhm | Ferrite | 1 MHz | Drum Core Wirewound | -40 C | 125 °C | 0.059 " | 1.5 mm | 3 mm | 0.118 in | 3 mm | 0.118 " | Nonstandard | Surface Mount | AEC-Q200 | |
TDK Corporation | 900 mA | Shielded | 10 µH | 3015 | 670 mA | 20 % | Ferrite | 1 MHz | Drum Core Wirewound | -40 C | 125 °C | 0.059 " | 1.5 mm | 3 mm | 0.118 in | 3 mm | 0.118 " | Nonstandard | Surface Mount | AEC-Q200 | 286 mOhm | |
TDK Corporation | 2.96 A | Shielded | 1 µH | 3015 | 2.3 A | 20 % | Ferrite | 1 MHz | Drum Core Wirewound | -40 C | 125 °C | 0.059 " | 1.5 mm | 3 mm | 0.118 in | 3 mm | 0.118 " | Nonstandard | Surface Mount | AEC-Q200 | 38 mOhm |
