4794R Series
Manufacturer: Belden Inc.
Beta
⌘K

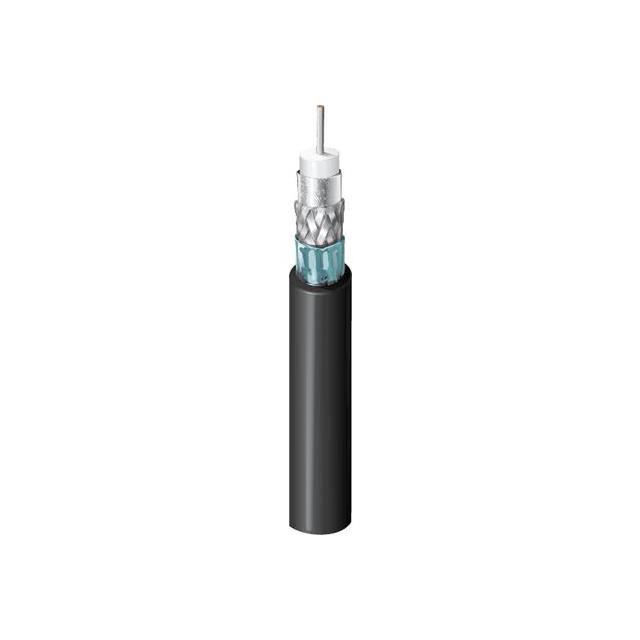

CABLE COAXIAL RISER 16AWG 1000'
| Part | Shield Material | VoP, Velocity of Propagation | Shield Coverage | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Conductor Material | Jacket Color | Usage | Shield Type | Wire Gauge | Length [x] | Length [x] | Conductor Strand | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Polyester Copper Tinned | 85 | 95 % 100 % | 5.72 mm | 0.225 in | Copper Silver Coated | Orange | Video | Double Braid Foil | 16 AWG | 304.8 m | 1000 ft | Solid | 0.32 in | 8.13 mm | Poly-Vinyl Chloride (PVC) | Coaxial - Riser |
Belden Inc. | Aluminum Polyester Copper Tinned | 85 | 95 % 100 % | 5.72 mm | 0.225 in | Copper Silver Coated | Red | Video | Double Braid Foil | 16 AWG | 304.8 m | 1000 ft | Solid | 0.32 in | 8.13 mm | Poly-Vinyl Chloride (PVC) | Coaxial - Riser |
Belden Inc. | Aluminum Polyester Copper Tinned | 85 | 95 % 100 % | 5.72 mm | 0.225 in | Copper Silver Coated | Yellow | Video | Double Braid Foil | 16 AWG | 304.8 m | 1000 ft | Solid | 0.32 in | 8.13 mm | Poly-Vinyl Chloride (PVC) | Coaxial - Riser |
Belden Inc. | Aluminum Polyester Copper Tinned | 85 | 95 % 100 % | 5.72 mm | 0.225 in | Copper Silver Coated | Black | Video | Double Braid Foil | 16 AWG | 304.8 m | 1000 ft | Solid | 0.32 in | 8.13 mm | Poly-Vinyl Chloride (PVC) | Coaxial - Riser |
Belden Inc. | Aluminum Polyester Copper Tinned | 85 | 95 % 100 % | 5.72 mm | 0.225 in | Copper Silver Coated | Blue | Video | Double Braid Foil | 16 AWG | 304.8 m | 1000 ft | Solid | 0.32 in | 8.13 mm | Poly-Vinyl Chloride (PVC) | Coaxial - Riser |
Belden Inc. | Aluminum Polyester Copper Tinned | 85 | 95 % 100 % | 5.72 mm | 0.225 in | Copper Silver Coated | Green | Video | Double Braid Foil | 16 AWG | 304.8 m | 1000 ft | Solid | 0.32 in | 8.13 mm | Poly-Vinyl Chloride (PVC) | Coaxial - Riser |
Belden Inc. | Aluminum Polyester Copper Tinned | 85 | 95 % 100 % | 5.72 mm | 0.225 in | Copper Silver Coated | Black | Video | Double Braid Foil | 16 AWG | 762 m | 2500 ' | Solid | 0.32 in | 8.13 mm | Poly-Vinyl Chloride (PVC) | Coaxial - Riser |
Belden Inc. | Aluminum Polyester Copper Tinned | 85 | 95 % 100 % | 5.72 mm | 0.225 in | Copper Silver Coated | Purple | Video | Double Braid Foil | 16 AWG | 304.8 m | 1000 ft | Solid | 0.32 in | 8.13 mm | Poly-Vinyl Chloride (PVC) | Coaxial - Riser |
