QS32X384 Series

QuickSwitch Products High-Speed CMOS 20-Bit Bus Switch

Manufacturer: Renesas Electronics Corporation

Catalog

QuickSwitch Products High-Speed CMOS 20-Bit Bus Switch

Part	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Independent Circuits	Package / Case [custom]	Package / Case	Voltage Supply Source	Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Circuit [custom]	Circuit [custom]	Mounting Type

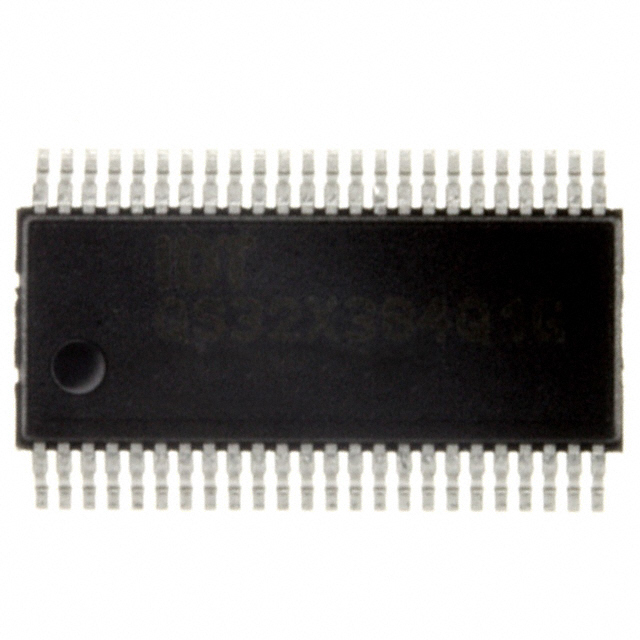

Renesas Electronics Corporation QS32X384Q1G8	85 °C	-40 °C	48-QVSOP	4	0.154 " 3.9 mm	48-FSOP	Single Supply	Bus Switch	4.75 V	5.25 V	1:1	5	Surface Mount
Renesas Electronics Corporation QS32X384Q1G5

Catalog

QuickSwitch Products High-Speed CMOS 20-Bit Bus Switch

Description

The QS32X384 provides a set of twenty high-speed CMOS TTL-compatible bus switches. The low ON resistance of the QS32X384 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. Four Bus Enable signals are provided, one for each of five bits of the 20-bit bus. The QS32X384 is ideal for switching wide digital buses, as well as hotplug buffering, and 5V to 3V conversion. The QS32X384 operates at -40C to +85C.
