G800LQ59 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

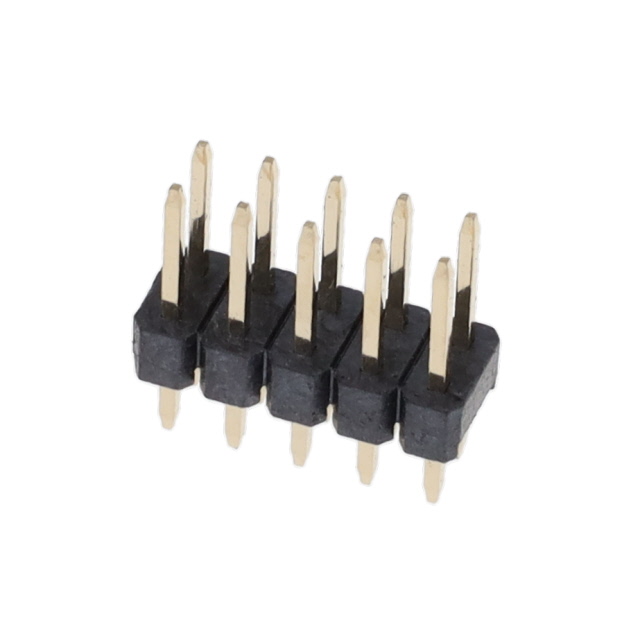

PIN HEADER 2.54MM PITCH STR DIP,
| Part | Contact Finish Thickness - Post | Contact Finish - Post | Contact Type | Contact Material | Contact Length - Post | Contact Length - Post | Termination | Current Rating (Amps) | Shrouding | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Mounting Type | Connector Type | Insulation Color | Overall Contact Length | Overall Contact Length | Contact Finish Thickness - Mating | Fastening Type | Insulation Height | Insulation Height | Insulation Material | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Shape | Contact Length - Mating | Contact Length - Mating | Number of Positions | Contact Finish - Mating | Number of Rows [custom] | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Flash | Gold | Male Pin | Copper Alloy | 0.118 in | 3 mm | Solder | 3 A | Unshrouded | All | 105 ░C | -25 °C | UL94 V-0 | Through Hole | Header | Black | 0.453 in | 11.5 mm | Flash | Push-Pull | 0.098 " | 2.5 mm | Liquid Crystal Polymer (LCP) | 0.1 in | 2.54 mm | Square | 6 mm | 0.236 in | 10 | Gold | 2 | 0.1 " | 2.54 mm |
