2299286 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

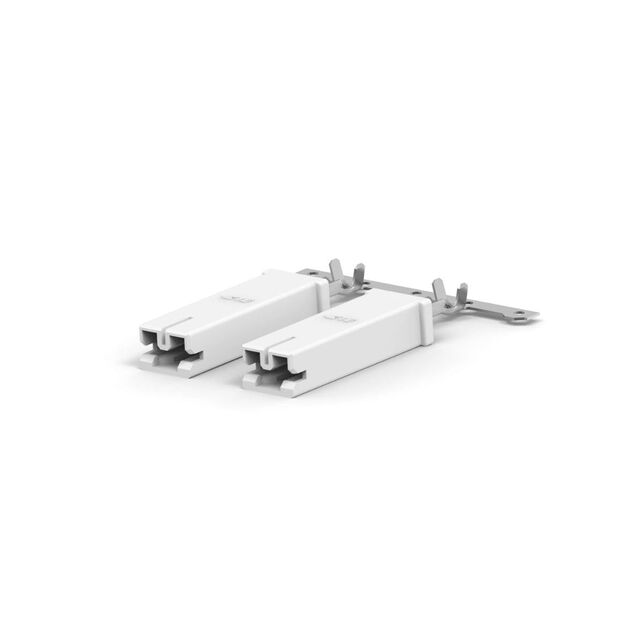

POD-LOK 187 STR. AWG 24-20 PTPBR
| Part | Insulation | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Contact Material | Contact Finish | Length - Overall [x] | Length - Overall [x] | Terminal Type | Mounting Type | Gender | Wire Gauge [Min] | Wire Gauge [Max] | Tab Width | Tab Width | Tab Length | Tab Length | Tab Thickness | Tab Thickness | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Mating End Insulated | 2.79 mm | 0.11 " | 1.52 mm | 0.06 in | Brass | Tin | 1.331 in | 33.8 mm | Standard | Free Hanging (In-Line) Right Angle | Female | 20 AWG | 24 AWG | 4.75 mm | 0.187 in | 8.35 mm | 0.329 in | 0.02 " | 0.51 mm | Crimp |
