846-080 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 80POS 0.125

...

Part	Material - Insulation	Termination Rows [custom]	Contact Finish	Termination	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Mounting Type	Contact Type	Flange Feature [diameter]	Flange Feature [diameter]	Card Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions/Bay/Row [custom]	Contact Material	Number of Positions	Color	Read Out	Gender	Flange Feature	Features
EDAC Inc. 846-080-526-804	Diallyl Phthalate (DAP)	2	Gold	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	0.25 Ám	10 Áin	2	Through Hole	Cantilever	0.156 "	3.96 mm	Non Specified - Dual Edge	125 °C	-40 C	40	Copper Alloy	80	Green	Dual	Female

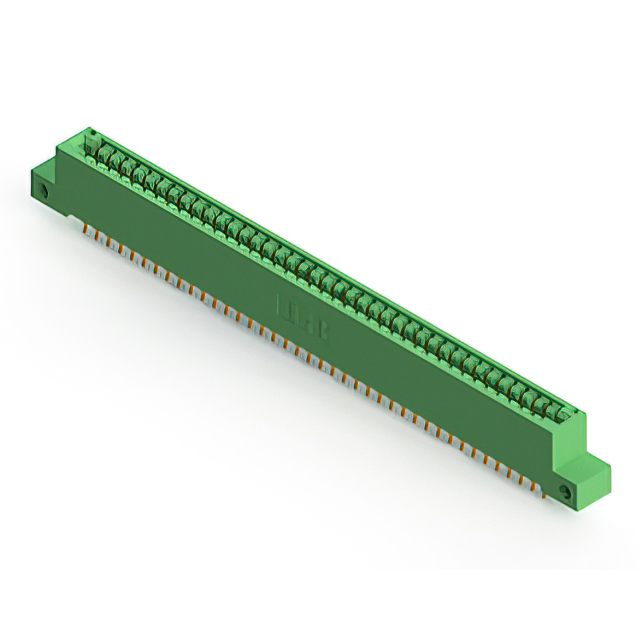

EDAC Inc. 846-080-556-212	Diallyl Phthalate (DAP)	2	Gold	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	0.25 Ám	10 Áin	2	Board Edge Straddle Mount	Cantilever	0.128 "	3.25 mm	Non Specified - Dual Edge	125 °C	-40 C	40	Copper Alloy	80	Green	Dual	Female	Flush Mount Side Opening Unthreaded	Card Extender

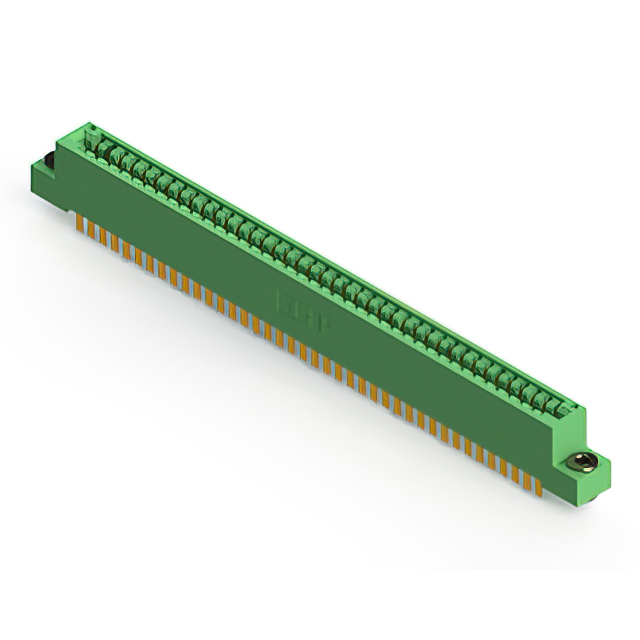

EDAC Inc. 846-080-500-203	Diallyl Phthalate (DAP)	2	Gold	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	0.25 Ám	10 Áin	2	Through Hole	Cantilever	0.116 "	2.95 mm	Non Specified - Dual Edge	125 °C	-40 C	40	Copper Alloy	80	Green	Dual	Female	Floating Bobbin Flush Mount
EDAC Inc. 846-080-560-212	Diallyl Phthalate (DAP)	2	Gold	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	0.25 Ám	10 Áin	2	Board Edge Straddle Mount	Cantilever	0.128 "	3.25 mm	Non Specified - Dual Edge	125 °C	-40 C	40	Copper Alloy	80	Green	Dual	Female	Flush Mount Side Opening Unthreaded	Card Extender

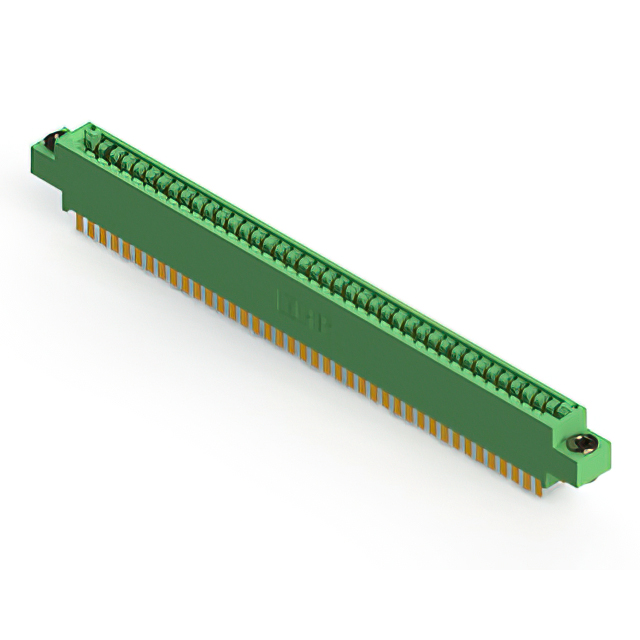

EDAC Inc. 846-080-500-803	Diallyl Phthalate (DAP)	2	Gold	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	0.25 Ám	10 Áin	2	Through Hole	Cantilever	0.116 "	2.95 mm	Non Specified - Dual Edge	125 °C	-40 C	40	Copper Alloy	80	Green	Dual	Female	Floating Bobbin Top Mount Opening

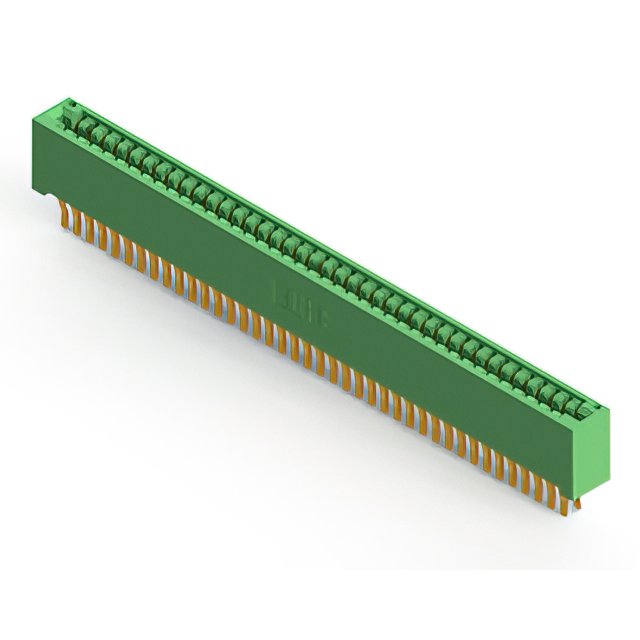

EDAC Inc. 846-080-560-201	Diallyl Phthalate (DAP)	2	Gold	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	0.25 Ám	10 Áin	2	Board Edge Straddle Mount	Cantilever			Non Specified - Dual Edge	125 °C	-40 C	40	Copper Alloy	80	Green	Dual	Female		Card Extender
EDAC Inc. 846-080-541-803	Diallyl Phthalate (DAP)	2	Gold	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	0.25 Ám	10 Áin	2	Through Hole	Cantilever	0.116 "	2.95 mm	Non Specified - Dual Edge	125 °C	-40 C	40	Copper Alloy	80	Green	Dual	Female	Floating Bobbin Top Mount Opening
EDAC Inc. 846-080-520-808	Diallyl Phthalate (DAP)	2	Gold	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	0.25 Ám	10 Áin	2	Through Hole	Cantilever			Non Specified - Dual Edge	125 °C	-40 C	40	Copper Alloy	80	Green	Dual	Female	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 846-080-520-212	Diallyl Phthalate (DAP)	2	Gold	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	0.25 Ám	10 Áin	2	Through Hole	Cantilever	0.128 "	3.25 mm	Non Specified - Dual Edge	125 °C	-40 C	40	Copper Alloy	80	Green	Dual	Female	Flush Mount Side Opening Unthreaded
EDAC Inc. 846-080-559-212	Diallyl Phthalate (DAP)	2	Gold	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	0.25 Ám	10 Áin	2	Right Angle Through Hole	Cantilever	0.128 "	3.25 mm	Non Specified - Dual Edge	125 °C	-40 C	40	Copper Alloy	80	Green	Dual	Female	Flush Mount Side Opening Unthreaded
