8279 Series
Manufacturer: Belden Inc.
Beta
⌘K

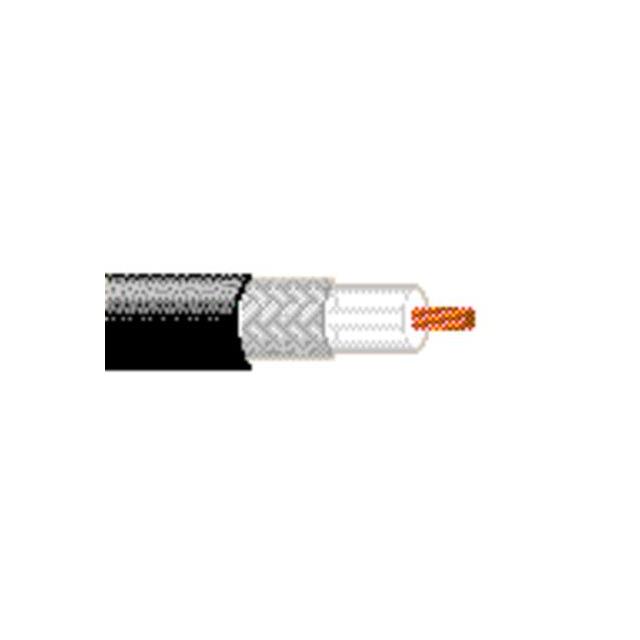

MINI VIDEO CABLE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | VoP, Velocity of Propagation | Shield Material | Shield Coverage | Conductor Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Wire Gauge | Shield Type | Cable Group | Impedance | Features | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Jacket Color | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | -55 C | 80 °C | 66 | Copper Tinned | 95 % | Copper Bare | 3.71 mm | 0.146 in | 152.4 m | 500 ft | 5.59 mm | 0.22 in | Coaxial | 23 AWG | Braid | RG-59 Mini | 75 Ohms | Direct Burial | 32 AWG | 7 Strands | Video | Black | Polyethylene (PE) |
