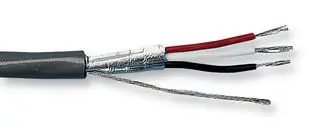

9537 Series
Manufacturer: Belden Inc.
Beta
⌘K
CABLE 7COND 24AWG CHRM SHD
| Part | Shield Coverage | Shield Material | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Usage | Conductor Insulation | Length | Length | Features | Ratings | Conductor Material | Wire Gauge | Jacket (Insulation) Material | Number of Conductors | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Chrome | 0.209 in | 5.31 mm | Computer | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Drain Wire | UL Style 2464 | Copper Tinned | 24 AWG | Poly-Vinyl Chloride (PVC) | 7 | 300 VDC | 80 °C | -30 ░C | 7 | 32 AWG | Foil | 0.813 mm | 0.032 in | Multi-Conductor |
Belden Inc. | 100 % | Aluminum | Chrome | 0.209 in | 5.31 mm | Computer | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | Drain Wire | UL Style 2464 | Copper Tinned | 24 AWG | Poly-Vinyl Chloride (PVC) | 7 | 300 VDC | 80 °C | -30 ░C | 7 | 32 AWG | Foil | 0.813 mm | 0.032 in | Multi-Conductor |
Belden Inc. | 100 % | Aluminum | Chrome | 0.209 in | 5.31 mm | Computer | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | Drain Wire | UL Style 2464 | Copper Tinned | 24 AWG | Poly-Vinyl Chloride (PVC) | 7 | 300 VDC | 80 °C | -30 ░C | 7 | 32 AWG | Foil | 0.813 mm | 0.032 in | Multi-Conductor |
 Belden Inc. | 100 % | Aluminum | Chrome | 0.209 in | 5.31 mm | Computer | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Drain Wire | UL Style 2464 | Copper Tinned | 24 AWG | Poly-Vinyl Chloride (PVC) | 7 | 300 VDC | 80 °C | -30 ░C | 7 | 32 AWG | Foil | 0.813 mm | 0.032 in | Multi-Conductor |
