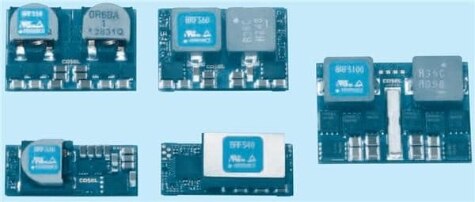

BRFS Series

Catalog

NON-ISOLATED DC/DC CONVERTERS 4.5-14VIN 0.6-1.8V 150A POS LOGIC POL

Part	Current - Output (Max) [Max]	Package / Case	Approval Agency	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Applications	Control Features	Mounting Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Number of Outputs	Type	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
Cosel USA, Inc. BRFS150-R	150 A	20-SMD Module	CE cURus TUV	14 V	38 mm	0.54 "	1.09 "	27.7 mm	13.8 mm	1.5 in	89 %	ITE (Commercial)	Active High Enable	Surface Mount	OCP Remote On/Off Remote Sensing	-40 °C	85 °C	4.5 V	1	Non-Isolated PoL Module	0.6 V	1.8 V
Cosel USA, Inc. BRFS120-R	120 A	14-SMD Module	CE cURus TUV	14 V	1.3 in			22.86 mm	12.7 mm		89 %	ITE (Commercial)	Active High Enable	Surface Mount	OCP Remote On/Off Remote Sensing	-40 °C	85 °C	4.5 V	1	Non-Isolated PoL Module	0.6 V	1.8 V	12.7 mm	33 mm	22.9 mm
