19K102 Series
Manufacturer: Rosenberger
Beta
⌘K
SMP NON MAGNETIC STRAIGHT JACK
| Part | Body Finish | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Dielectric Material | Mating Cycles | Body Material | Connector Type | Contact Termination | Shield Termination | Number of Ports | Frequency - Max [Max] | Cable Group | Mounting Type | Fastening Type | Impedance | Housing Color | Center Contact Material | Convert To (Adapter End) | Style | Convert From (Adapter End) | Conversion Type | Adapter Series | Adapter Type | Center Gender | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

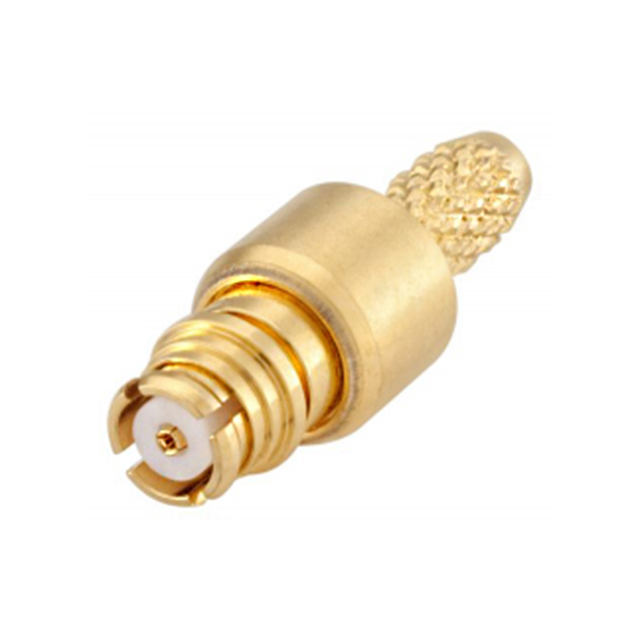

 Rosenberger | Gold | 335 V | 155 C | -65 ░C | Gold | Polytetrafluoroethylene (PTFE) | 1000 | Beryllium Copper | Female Socket Jack | Crimp | Crimp | 1 | 26.5 GHz | 196A RG-178B | Free Hanging (In-Line) | Snap-On | 50 Ohms | Gold | Beryllium Copper | ||||||||
Rosenberger | Gold | 335 V | 155 C | -65 ░C | Gold | Polytetrafluoroethylene (PTFE) | 1000 | Beryllium Copper | Female Socket Jack | Crimp | Crimp | 1 | 26.5 GHz | RG-178B | Free Hanging (In-Line) | Snap-On | 50 Ohms | Gold | Beryllium Copper | ||||||||

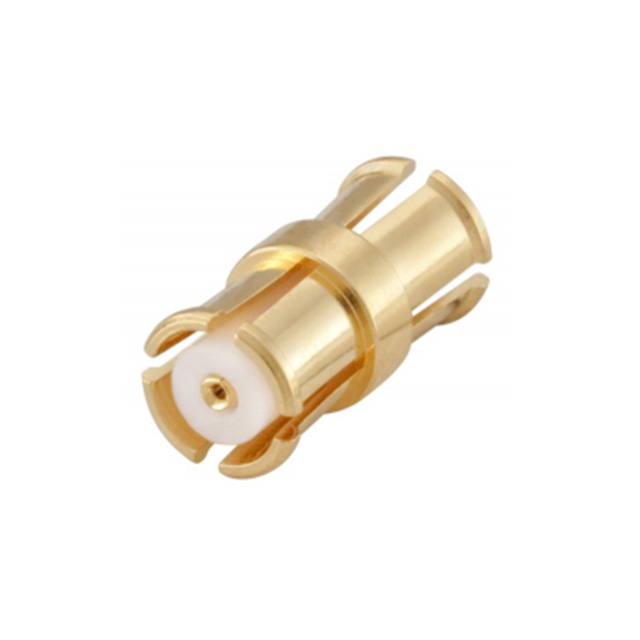

 Rosenberger | Gold | 155 C | -65 ░C | Gold | Polytetrafluoroethylene (PTFE) | Beryllium Copper | 26.5 GHz | Free Hanging (In-Line) | Snap-On | 50 Ohms | Beryllium Copper | SMP Jack Female Socket | Straight | Female Socket SMP Jack | Same Series | SMP to SMP | Jack to Jack | Female to Female | Snap-On |
