9455-1113 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

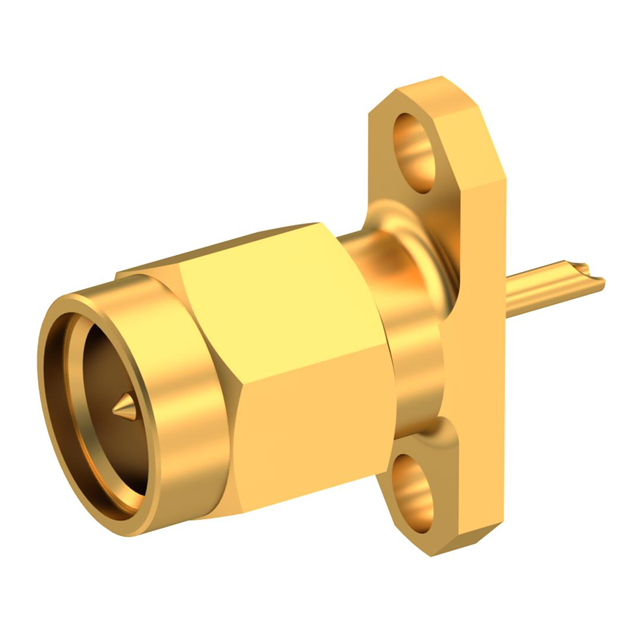

SMA / STRAIGHT PLUG RECEPTACLE M
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Finish | Center Contact Plating | Body Material | Dielectric Material | Mounting Type | Fastening Type | Shield Termination | Number of Ports | Impedance | Contact Termination | Mounting Feature | Connector Type | Center Contact Material | Housing Color | Connector Style | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | 500 | Gold | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | Panel Mount | Threaded | Solder | 1 | 50 Ohms | Solder Cup | Flange | Plug Male Pin | Beryllium Copper | Gold | SMA | 18 GHz |
