MF35100V1 Series
Manufacturer: Sunon Fans
Beta
⌘K

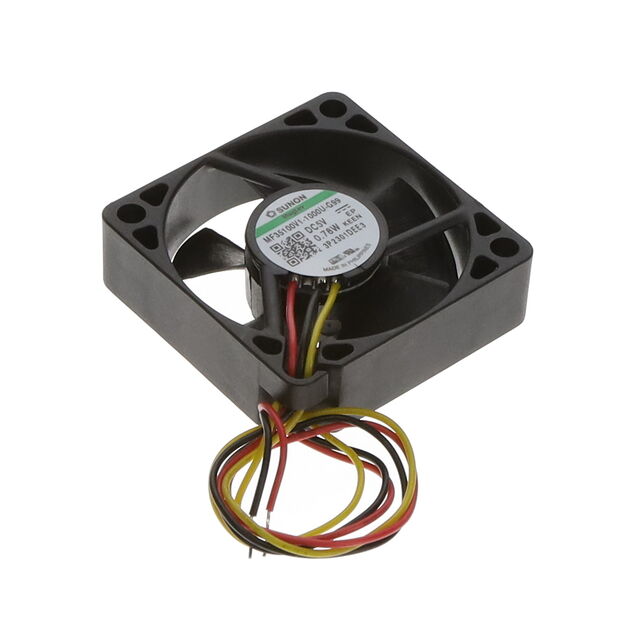

FAN AXIAL 35X10MM VAPO 5VDC WIRE
| Part | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | Material - Blade | Static Pressure | Static Pressure | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Weight | Weight | Bearing Type | Width [y] | Size / Dimension [x] | Size / Dimension | Size / Dimension [y] | Voltage - Rated | RPM | Fan Type | Approval Agency | Noise | Features | Air Flow | Air Flow | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sunon Fans | 135 mA | 2.5 V | 6 VDC | 70000 Hrs | Polybutylene Terephthalate (PBT) | 55 Pa | 0.22 in H2O | 70 °C | -10 °C | 0.68 W | 10.89 g | 0.024 lb | Vapo-Bearing™ | 10 mm | 35 mm | Square | 35 mm | 5 V | 10000 RPM | Tubeaxial | cURus TUV | 28 dB | Auto Restart Speed Sensor (Tach) | 0.202 mł/min | 7.2 CFM | 3 Wire Leads |
