YB15WC Series

Catalog

SWITCH PUSHBUTTON SPDT 3A 125V

Part	Electrical Life	Mechanical Life	Actuator Marking	Ingress Protection	Voltage Rating - AC	Mounting Type	Actuator Type	Panel Cutout Dimensions [diameter]	Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Rating - DC	Switch Function	Termination Style	Circuit	Color - Actuator/Cap	Illumination Type, Color	Illumination Voltage (Nominal)

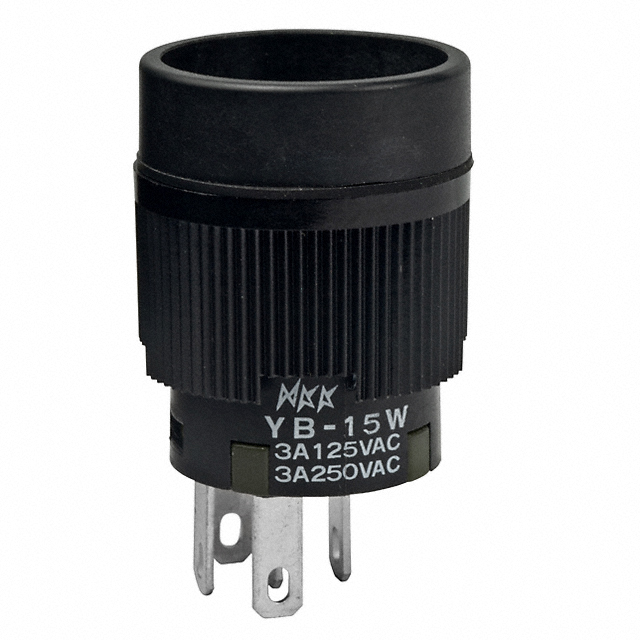

NKK Switches YB15WCKW01/UC	100000 Cycles	1000000 Cycles	No Marking	IP65 - Dust Tight Water Resistant	125 V	Panel Mount Front	Plunger for Cap	16 mm	Standard	Tactile Feedback	-25 °C	70 °C	3 A	30 V	On-Mom	Solder Quick Connect - 0.110" (2.8mm)	SPDT

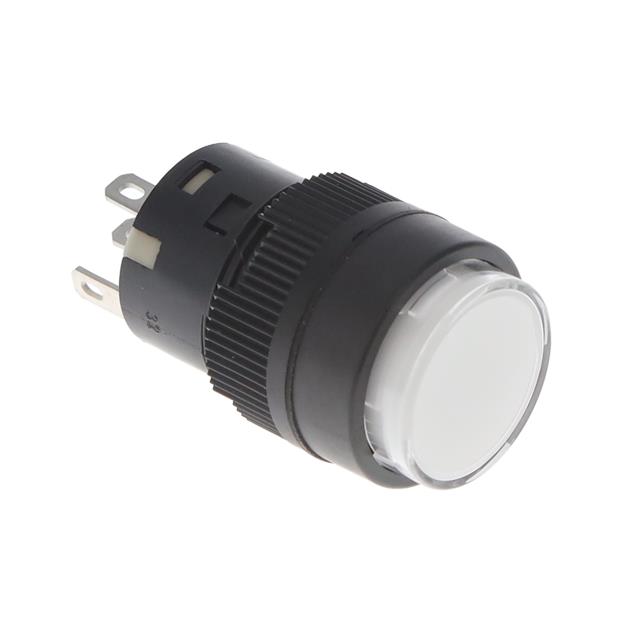

NKK Switches YB15WCKG01-5F-JB	100000 Cycles	1000000 Cycles	No Marking	IP65 - Dust Tight Water Resistant	28 V	Panel Mount Front	Button Round	16 mm	Illuminated Standard	Tactile Feedback	-25 °C	50 °C	0.4 VA	28 V	On-Mom	Solder Quick Connect - 0.110" (2.8mm)	SPDT	Clear	Green LED	2.2 VDC
NKK Switches YB15WCKG01/U	100000 Cycles	1000000 Cycles	No Marking	IP65 - Dust Tight Water Resistant	28 V	Panel Mount Front	Plunger for Cap	16 mm	Standard	Tactile Feedback	-25 °C	70 °C	0.4 VA	28 V	On-Mom	Solder Quick Connect - 0.110" (2.8mm)	SPDT

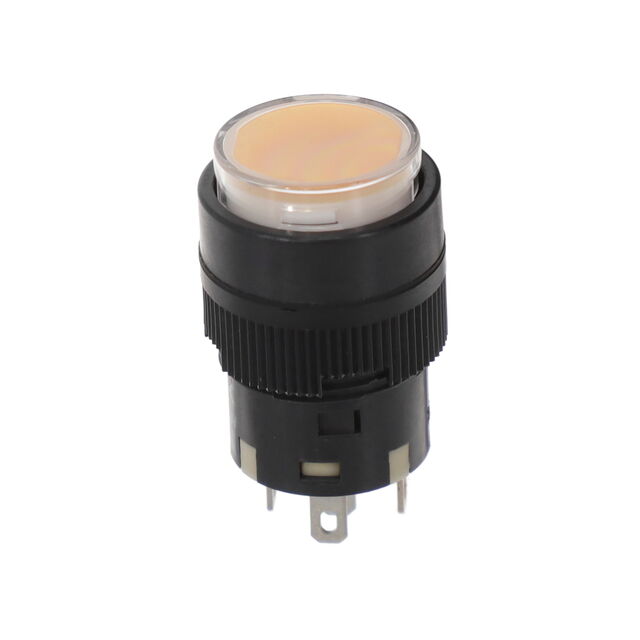

NKK Switches YB15WCKG01-5D24-JD	100000 Cycles	1000000 Cycles	No Marking	IP65 - Dust Tight Water Resistant	28 V	Panel Mount Front	Button Round	16 mm	Illuminated Standard	Tactile Feedback	-25 °C	50 °C	0.4 VA	28 V	On-Mom	Solder Quick Connect - 0.110" (2.8mm)	SPDT	Clear	Amber LED	24 V

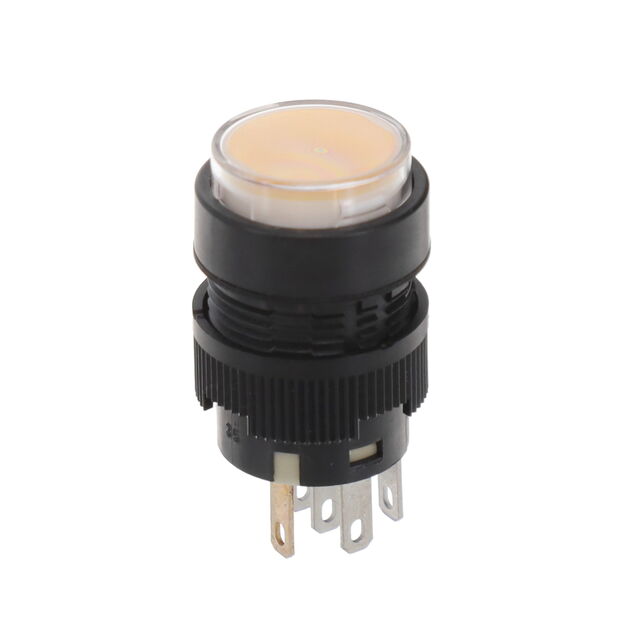

NKK Switches YB15WCKG01-5D-JD	100000 Cycles	1000000 Cycles	No Marking	IP65 - Dust Tight Water Resistant	28 V	Panel Mount Front	Button Round	16 mm	Illuminated Standard	Tactile Feedback	-25 °C	50 °C	0.4 VA	28 V	On-Mom	Solder Quick Connect - 0.110" (2.8mm)	SPDT	Clear	Amber LED	2 VDC
NKK Switches YB15WCKW01-5C12-JC	100000 Cycles	1000000 Cycles	No Marking	IP65 - Dust Tight Water Resistant	125 V	Panel Mount Front	Button Round	16 mm	Illuminated Standard	Tactile Feedback	-25 °C	50 °C	3 A	30 V	On-Mom	Solder Quick Connect - 0.110" (2.8mm)	SPDT	Clear	LED Red	12 VDC

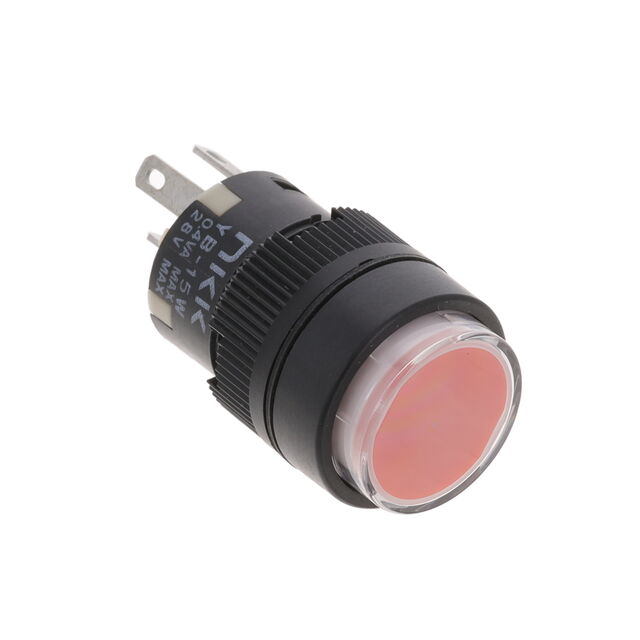

NKK Switches YB15WCKG01-5C-JC	100000 Cycles	1000000 Cycles	No Marking	IP65 - Dust Tight Water Resistant	28 V	Panel Mount Front	Button Round	16 mm	Illuminated Standard	Tactile Feedback	-25 °C	50 °C	0.4 VA	28 V	On-Mom	Solder Quick Connect - 0.110" (2.8mm)	SPDT	Clear	LED Red	1.9 VDC

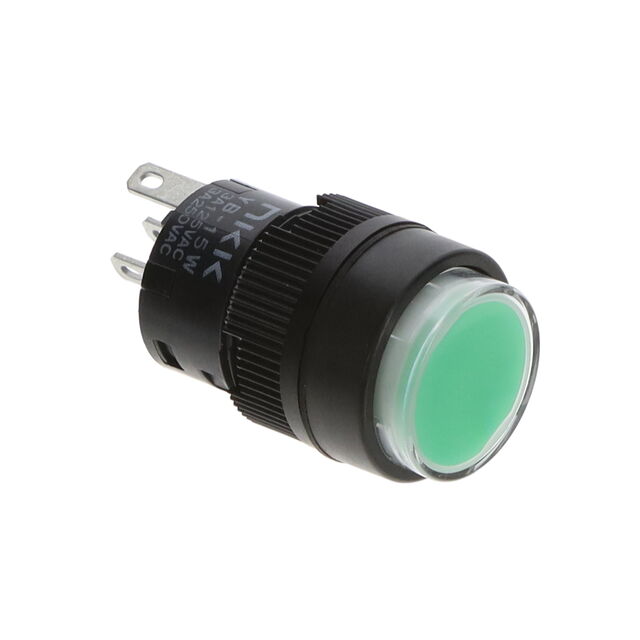

NKK Switches YB15WCKW01-5F05-JF	100000 Cycles	1000000 Cycles	No Marking	IP65 - Dust Tight Water Resistant	125 V	Panel Mount Front	Button Round	16 mm	Illuminated Standard	Tactile Feedback	-25 °C	50 °C	3 A	30 V	On-Mom	Solder Quick Connect - 0.110" (2.8mm)	SPDT	Clear	Green LED	5 VDC
NKK Switches YB15WCKW01-1C24-JC	100000 Cycles	1000000 Cycles	No Marking	IP65 - Dust Tight Water Resistant	125 V	Panel Mount Front	Button Round	16 mm	Illuminated Standard	Tactile Feedback	-25 °C	50 °C	3 A	30 V	On-Mom	Solder Quick Connect - 0.110" (2.8mm)	SPDT	Clear	LED Red	24 V
NKK Switches YB15WCKW01-1F05-JF	100000 Cycles	1000000 Cycles	No Marking	IP65 - Dust Tight Water Resistant	125 V	Panel Mount Front	Button Round	16 mm	Illuminated Standard	Tactile Feedback	-25 °C	50 °C	3 A	30 V	On-Mom	Solder Quick Connect - 0.110" (2.8mm)	SPDT	Clear	Green LED	5 VDC
