202A121 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

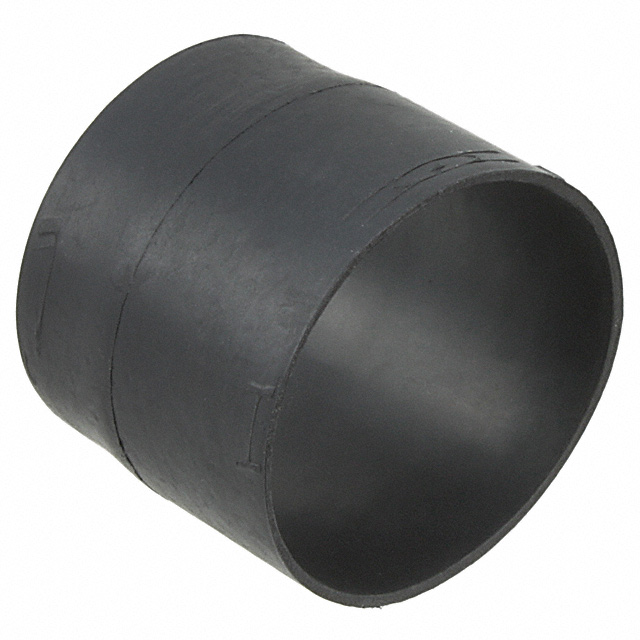

HEATSHRINK BOOT SZ21 BLACK

Part	Color	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Shell Size - Insert	Material	Type	Features	Total Length Recovered	Total Length Recovered	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Small Diameter Supplied	Small Diameter Supplied	Large Recovered Length	Large Recovered Length	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]
TE Connectivity Aerospace, Defense and Marine 202A121-12-0	Black	9.91 mm	0.39 in	21	Fluoroelastomer (FKM) Flexible	Boot	Chemical Resistant	38.1 mm	1.5 in	5.31 mm	0.209 "	0.89 in	22.61 mm	0.701 "	17.81 mm	21.79 mm	0.858 "
TE Connectivity Aerospace, Defense and Marine 202A121-25-CS-2065-0	Black			21	Elastomer Semi-Rigid	Boot	Fluid Resistant
TE Connectivity Aerospace, Defense and Marine 202A121-4-00-0	Black	9.91 mm	0.39 in	21	Polyolefin (PO) Flexible	Boot	Flame Retardant Potting (Injection) Port	38.1 mm	1.5 in	5.31 mm	0.209 "	0.969 in	24.61 mm			21.79 mm	0.858 "	24.61 mm	0.969 in

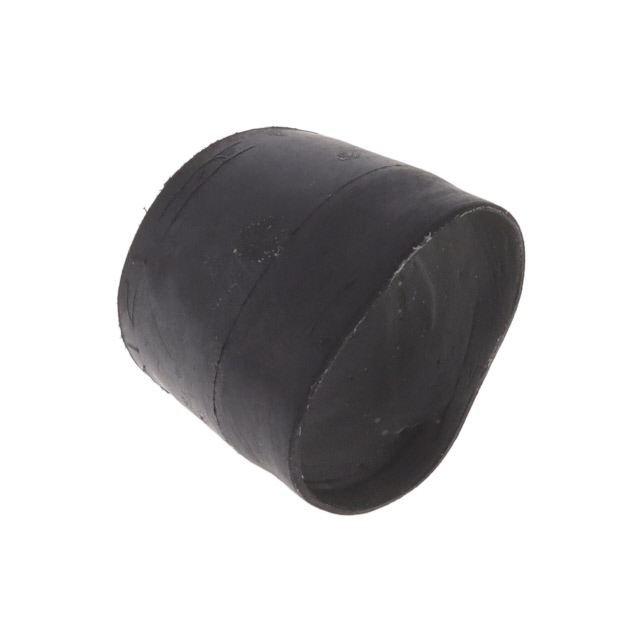

TE Connectivity Aerospace, Defense and Marine 202A121-4/86-0	Black	9.91 mm	0.39 in	21	Polyolefin (PO) Flexible	Boot	Adhesive Coating Flame Retardant	38.1 mm	1.5 in	5.31 mm	0.209 "	0.969 in	24.61 mm			21.79 mm	0.858 "	24.61 mm	0.969 in
TE Connectivity Aerospace, Defense and Marine 202A121-3-0-CS8341	Black	9.91 mm	0.39 in	21	Polyolefin (PO) Semi-Rigid	Boot	Flame Retardant	38.1 mm	1.5 in	5.31 mm	0.209 "	0.969 in	24.61 mm			21.79 mm	0.858 "	24.61 mm	0.969 in
TE Connectivity Aerospace, Defense and Marine 202A121-4/42-0-CS8334	Black	9.91 mm	0.39 in	21	Polyolefin (PO) Flexible	Boot	Adhesive Coating Flame Retardant	38.1 mm	1.5 in	5.31 mm	0.209 "	0.969 in	24.61 mm			21.79 mm	0.858 "	24.61 mm	0.969 in
TE Connectivity Aerospace, Defense and Marine 202A121-25/42-0	Black	9.91 mm	0.39 in	21	Elastomer Semi-Rigid	Boot	Adhesive Coating Fluid Resistant	38.1 mm	1.5 in	5.31 mm	0.209 "	0.969 in	24.61 mm			21.79 mm	0.858 "	24.61 mm	0.969 in
TE Connectivity Aerospace, Defense and Marine 202A121-3-CS-2060-0	Black			21	Polyolefin (PO) Semi-Rigid	Boot	Flame Retardant
TE Connectivity Aerospace, Defense and Marine 202A121-3-0	Black	9.91 mm	0.39 in	21	Polyolefin (PO) Semi-Rigid	Boot	Flame Retardant	38.1 mm	1.5 in	5.31 mm	0.209 "	0.969 in	24.61 mm			21.79 mm	0.858 "	24.61 mm	0.969 in
