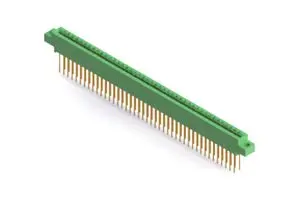

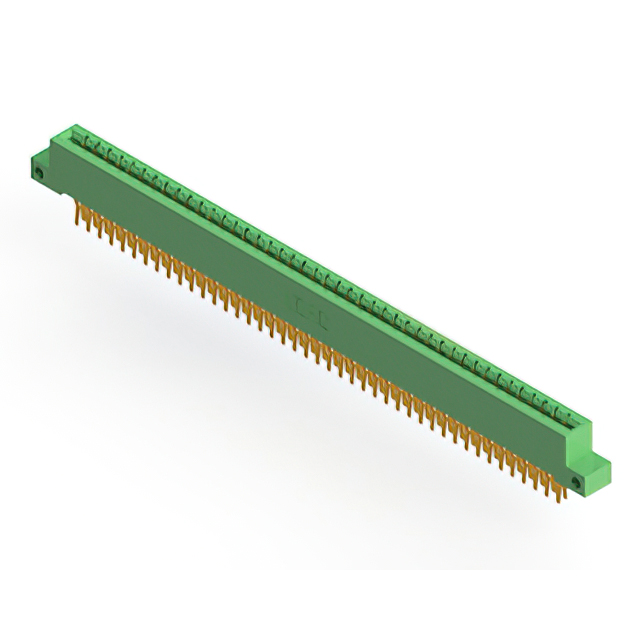

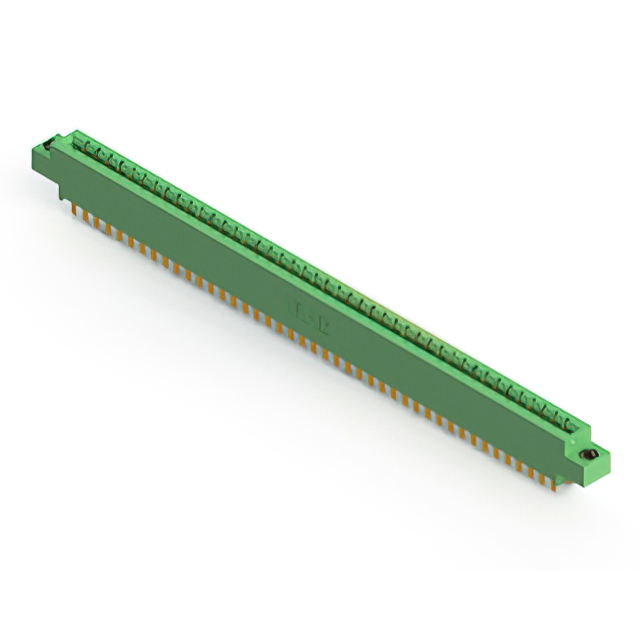

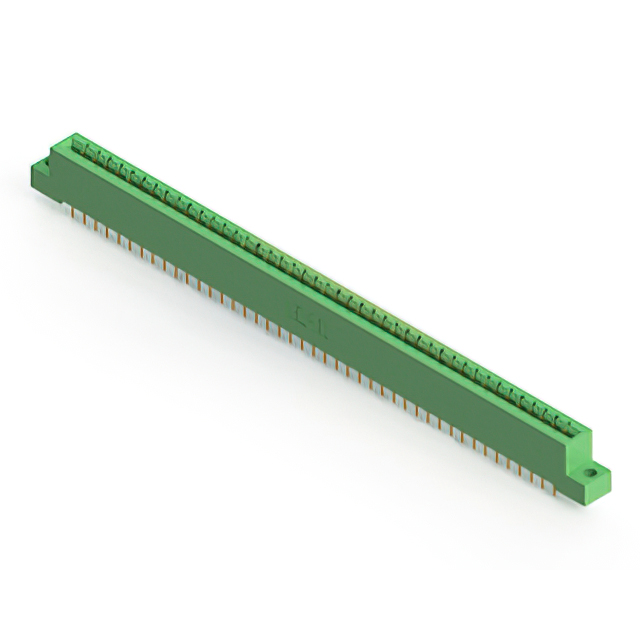

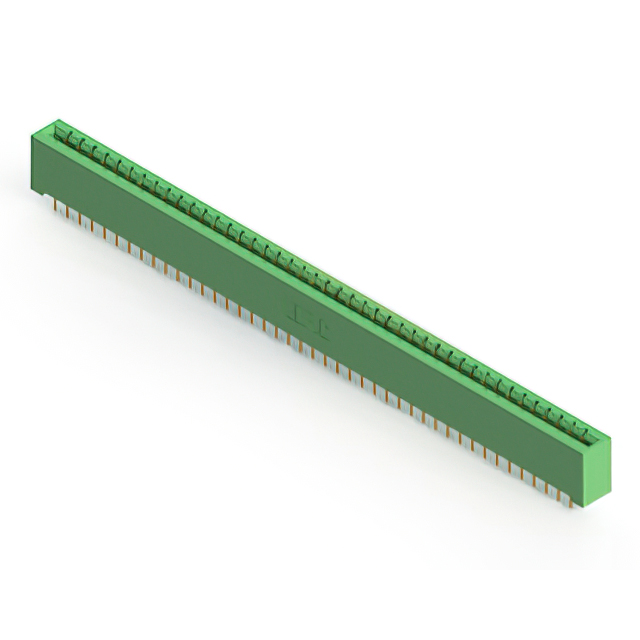

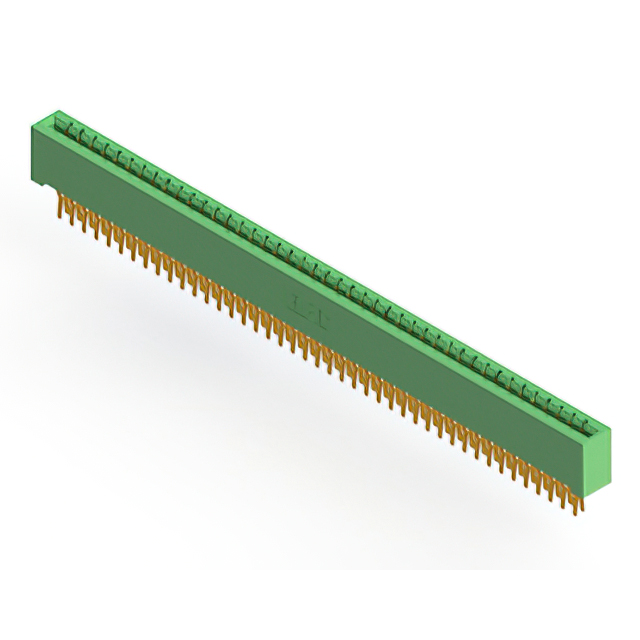

333-086 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 86POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Card Thickness [Max] | Card Thickness [Min] | Number of Positions | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Termination | Contact Type | Mounting Type | Card Type | Read Out | Number of Rows [custom] | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Color | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish | Number of Positions/Bay/Row | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 86 | Copper Alloy | 0.25 Ám | 10 Áin | Solder | Cantilever | Through Hole | Non Specified - Dual Edge | Dual | 2 | Female | -40 C | 105 ░C | 3.96 mm | 0.156 in | Green | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Gold | 43 | |
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 86 | Copper Alloy | 0.25 Ám | 10 Áin | Wire Wrap | Cantilever | Right Angle Through Hole | Non Specified - Dual Edge | Dual | 2 | Female | -40 C | 105 ░C | 3.96 mm | 0.156 in | Green | 0.128 " | 3.25 mm | Gold | 43 | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 86 | Copper Alloy | 0.25 Ám | 10 Áin | Wire Wrap | Cantilever | Through Hole | Non Specified - Dual Edge | Dual | 2 | Female | -40 C | 105 ░C | 3.96 mm | 0.156 in | Green | 0.156 " | 3.96 mm | Gold | 43 | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 86 | Copper Alloy | 0.25 Ám | 10 Áin | Solder | Cantilever | Through Hole | Non Specified - Dual Edge | Dual | 2 | Female | -40 C | 105 ░C | 3.96 mm | 0.156 in | Green | 0.156 " | 3.96 mm | Gold | 43 | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 86 | Copper Alloy | 0.25 Ám | 10 Áin | Solder | Cantilever | Board Edge Straddle Mount | Non Specified - Dual Edge | Dual | 2 | Female | -40 C | 105 ░C | 3.96 mm | 0.156 in | Green | Flush Mount M3 Threaded Insert Top Opening | Gold | 43 | Card Extender | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 86 | Copper Alloy | 0.25 Ám | 10 Áin | Solder | Cantilever | Board Edge Straddle Mount | Non Specified - Dual Edge | Dual | 2 | Female | -40 C | 105 ░C | 3.96 mm | 0.156 in | Green | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Gold | 43 | Card Extender |
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 86 | Copper Alloy | 0.25 Ám | 10 Áin | Solder | Cantilever | Through Hole | Non Specified - Dual Edge | Dual | 2 | Female | -40 C | 105 ░C | 3.96 mm | 0.156 in | Green | Gold | 43 | ||||
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 86 | Copper Alloy | 0.25 Ám | 10 Áin | Solder | Cantilever | Board Edge Straddle Mount | Non Specified - Dual Edge | Dual | 2 | Female | -40 C | 105 ░C | 3.96 mm | 0.156 in | Green | Gold | 43 | Card Extender | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 86 | Copper Alloy | 0.25 Ám | 10 Áin | Solder | Cantilever | Through Hole | Non Specified - Dual Edge | Dual | 2 | Female | -40 C | 105 ░C | 3.96 mm | 0.156 in | Green | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 43 | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 86 | Copper Alloy | 0.25 Ám | 10 Áin | Wire Wrap | Cantilever | Right Angle Through Hole | Non Specified - Dual Edge | Dual | 2 | Female | -40 C | 105 ░C | 3.96 mm | 0.156 in | Green | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Gold | 43 |
