B72250L Series

Catalog

VARISTOR 430V 75KA DISC 57MM

Part	Current - Surge	Varistor Voltage (Max)	Number of Circuits	Maximum DC Volts [Max]	Energy	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance @ Frequency	Varistor Voltage (Typ)	Varistor Voltage (Min) [Min]	Mounting Type	Package / Case	Maximum AC Volts [Max]	Varistor Voltage (Max) [Max]
EPCOS - TDK Electronics B72250L0271K102	75 kA	473 V	1	350 V	860 J	85 C	-40 ¯C	5500 pF	430 V	387 V	Bolt Mount	Disc 57mm	275 V

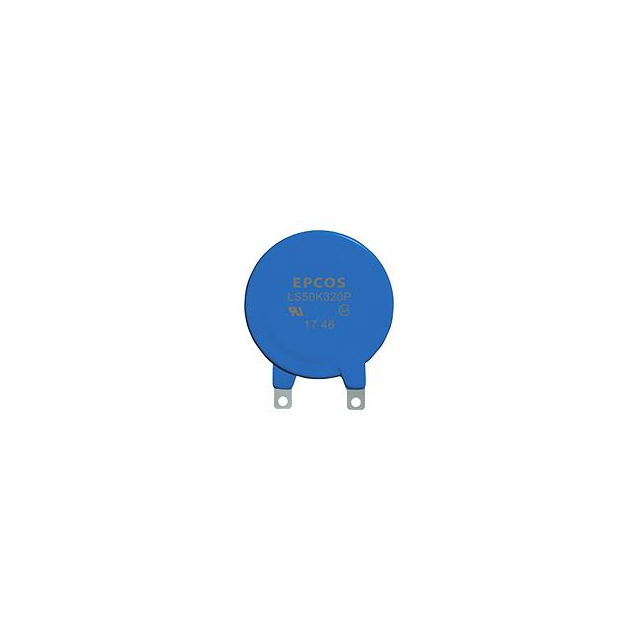

EPCOS - TDK Electronics B72250L0131K102	75 kA		1	170 V	490 J	85 C	-40 ¯C	10500 pF	205 V	184.5 V	Bolt Mount	Disc 57mm	130 V	225.5 V
EPCOS - TDK Electronics B72250L0441K102	75 kA		1	585 V	1580 J	85 C	-40 ¯C	1 kHz 3000 pF	715 V	643.5 V	Bolt Mount	Disc 57mm	440 V	786.5 V
EPCOS - TDK Electronics B72250L0381K102	75 kA		1	505 V	1200 J	85 C	-40 ¯C	3500 pF	620 V	558 V	Bolt Mount	Disc 57mm	385 V
EPCOS - TDK Electronics B72250L0321K100	75 kA		1	420 V	1000 J	85 C	-40 ¯C	4300 pF	510 V	459 V	Bolt Mount	Disc 57mm	320 V	561 V
EPCOS - TDK Electronics B72250L0251K100	75 kA			320 V	800 J	85 °C	-25 °C	5600 pF	390 V	351 V	Bolt Mount	Disc 57mm	250 V	429 V

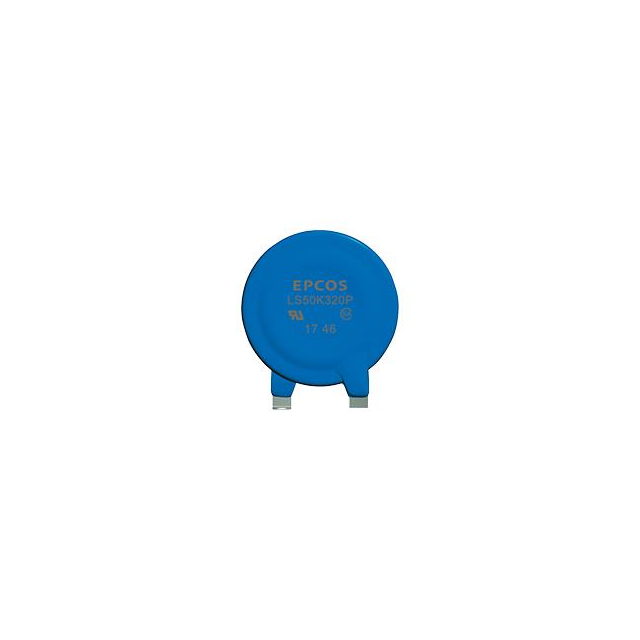

EPCOS - TDK Electronics B72250L0131K100	75 kA		1	170 V	490 J	85 C	-40 ¯C	10500 pF	205 V	184.5 V	Bolt Mount	Disc 57mm	130 V	225.5 V
EPCOS - TDK Electronics B72250L0551K100	75 kA		1	745 V	1820 J	85 C	-40 ¯C	2400 pF	910 V	819 V	Bolt Mount	Disc 57mm	550 V	1.001 kV
EPCOS - TDK Electronics B72250L0421K102	75 kA			560 V	1500 J	85 °C	-25 °C	1 kHz 3300 pF	680 V	612 V	Bolt Mount	Disc 57mm	420 V	748 V
EPCOS - TDK Electronics B72250L0441K100	75 kA			585 V	1580 J	85 °C	-25 °C	1 kHz 3000 pF	715 V	643.5 V	Bolt Mount	Disc 57mm	440 V	786.5 V
