EAST16083 Series

Manufacturer: Everlight Electronics Co Ltd

Catalog

LED BLUE CLEAR 2SMD

Part	Height (Max) [z]	Voltage - Forward (Vf) (Typ)	Lens Transparency	Supplier Device Package	Wavelength - Peak	Color	Package / Case	Package / Case	Lens Size [y]	Lens Size [x]	Viewing Angle	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Lens Style	Current - Test	Configuration	Lens Color	Millicandela Rating	Wavelength - Dominant	Wavelength - Dominant [custom]

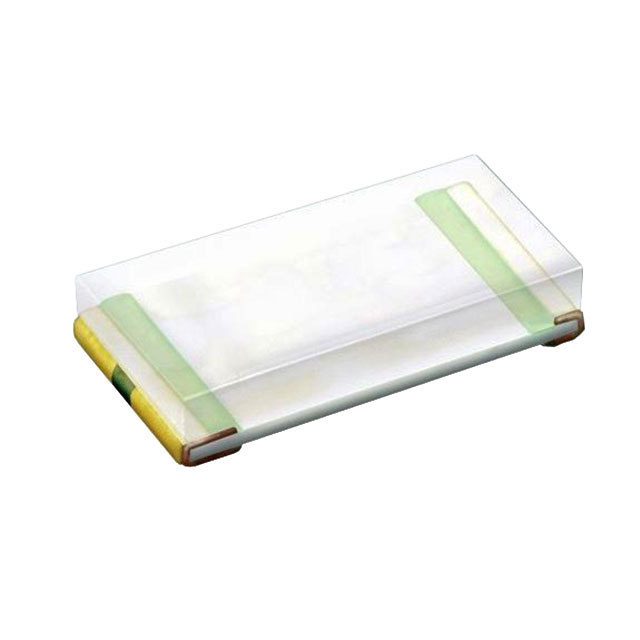

Everlight Electronics Co Ltd EAST16083BA0	0.4 mm	2.95 V	Clear	2-SMD	468 nm	Blue	1608 Metric	0603	0.8 mm	1.6 mm	120 °	1.6 mm	0.8 mm	Surface Mount	Rectangle with Flat Top	5 mA	Standard	Colorless
Everlight Electronics Co Ltd EAST16083BA1	0.4 mm	3 V	Clear	2-SMD	468 nm	Blue	1608 Metric	0603	0.8 mm	1.6 mm	120 °	1.6 mm	0.8 mm	Surface Mount	Rectangle with Flat Top	5 mA	Standard	Colorless	20 mcd	470 nm

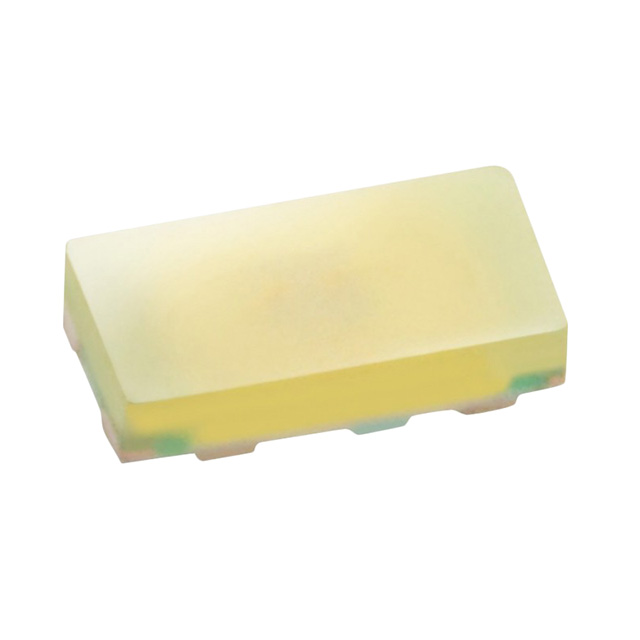

Everlight Electronics Co Ltd EAST16083RA1	0.4 mm	1.85 V	Clear	2-SMD	632 nm	Red	1608 Metric	0603	0.8 mm	1.6 mm	120 °	1.6 mm	0.8 mm	Surface Mount	Rectangle with Flat Top	5 mA	Standard	Colorless	40 mcd	626 nm
Everlight Electronics Co Ltd EAST16083GA1	0.4 mm	1.85 V	Clear	2-SMD	575 nm	Yellow-Green	1608 Metric	0603	0.8 mm	1.6 mm	120 °	1.6 mm	0.8 mm	Surface Mount	Rectangle with Flat Top	5 mA	Standard	Colorless	13 mcd	572 nm
Everlight Electronics Co Ltd EAST16083GA0	0.4 mm	3.4 V	Clear	2-SMD	518 nm	Green	1608 Metric	0603	0.8 mm	1.6 mm	120 °	1.6 mm	0.8 mm	Surface Mount	Rectangle with Flat Top	20 mA	Standard	Colorless	199 mcd		528 nm
Everlight Electronics Co Ltd EAST16083GA3	0.4 mm	2.95 V	Clear	2-SMD	518 nm	Green	1608 Metric	0603	0.8 mm	1.6 mm	120 °	1.6 mm	0.8 mm	Surface Mount	Rectangle with Flat Top	5 mA	Standard	Colorless
Everlight Electronics Co Ltd EAST16083RA0	0.4 mm	2 V	Clear	2-SMD	632 nm	Red	1608 Metric	0603	0.8 mm	1.6 mm	120 °	1.6 mm	0.8 mm	Surface Mount	Rectangle with Flat Top	5 mA	Standard	Colorless	20 mcd	626 nm
