ENTUBE DE Series

Catalog

TRANSDUCER VOLTAGE HIBAND

Part	Operating Temperature (Max)	Operating Temperature (Min)	Input Voltage (Max)	Input Voltage (Min)	Termination Style	Type	Output Current (Max)	Output Voltage (Max)	Output Voltage (Min)	Output Current (Min)	Accuracy	Mounting Type	Output Voltage Tolerance	Response Time	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)

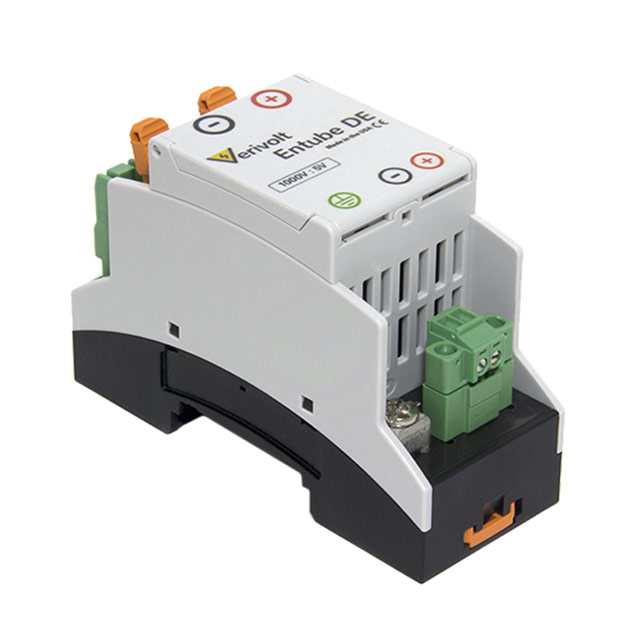

Verivolt LLC ENTUBE DE (50V 10V)	70 °C	-25 °C	50 V	-50 V	Spring Terminal	Voltage Transducer	10 V	10 V	-10 V	-10 V	0.2 %	DIN Rail
Verivolt LLC ENTUBE DE (1500V 5V)	70 °C	-25 °C	1500 V	-1500 V	Spring Terminal	Voltage Transducer	5 V			-5 V	0.2 %	DIN Rail	5 V

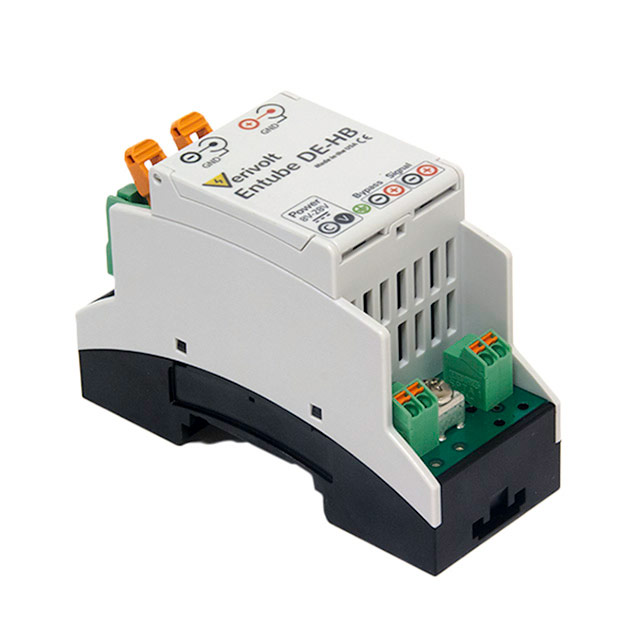

Verivolt LLC ENTUBE DE-HB (500V1V SEBNC)	70 °C	-25 °C	500 V	-500 V	BNC Spring Terminal	Voltage Transducer	1 V			-1 V	0.2 %	DIN Rail		20 ns	28 V	9 VDC
Verivolt LLC ENTUBE DE-HB (1000V 10V DIFFSC)	70 °C	-25 °C	1000 V	-1000 V	Spring Terminal	Voltage Transducer	10 V	10 V	-10 V	-10 V	0.2 %	DIN Rail		20 ns	28 V	9 VDC
Verivolt LLC ENTUBE DE-HB (1500V5V SEBNC)	70 °C	-25 °C	1500 V	-1500 V	BNC Spring Terminal	Voltage Transducer	5 V			-5 V	0.2 %	DIN Rail	5 V	20 ns	28 V	9 VDC
Verivolt LLC ENTUBE DE-HB (100V1V SEBNC)	70 °C	-25 °C	100 V	-100 V	BNC Spring Terminal	Voltage Transducer	1 V			-1 V	0.2 %	DIN Rail		20 ns	28 V	9 VDC
Verivolt LLC ENTUBE DE-HB (50V 10V SESC)	70 °C	-25 °C	50 V	-50 V	Spring Terminal	Voltage Transducer	10 V	10 V	-10 V	-10 V	0.2 %	DIN Rail		20 ns	28 V	9 VDC
Verivolt LLC ENTUBE DE-HB (500V 10V DIFFSC)	70 °C	-25 °C	500 V	-500 V	Spring Terminal	Voltage Transducer	10 V	10 V	-10 V	-10 V	0.2 %	DIN Rail		20 ns	28 V	9 VDC
Verivolt LLC ENTUBE DE-HB (300V1V SEBNC)	70 °C	-25 °C	300 V	-300 V	BNC Spring Terminal	Voltage Transducer	1 V			-1 V	0.2 %	DIN Rail		20 ns	28 V	9 VDC
Verivolt LLC ENTUBE DE-HB (100V 10V DIFFSC)	70 °C	-25 °C	100 V	-100 V	Spring Terminal	Voltage Transducer	10 V	10 V	-10 V	-10 V	0.2 %	DIN Rail		20 ns	28 V	9 VDC
