ACHS-7125 Series
Manufacturer: Broadcom Limited
Beta
⌘K

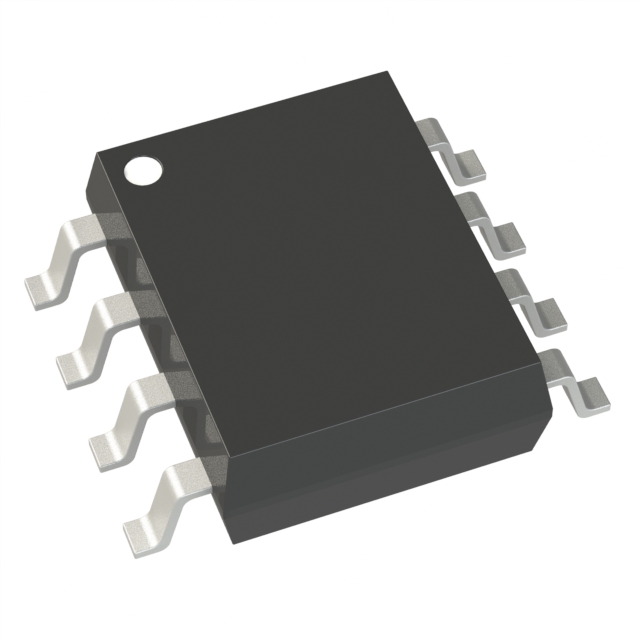

HALL EFFECT IC, T/R+LF
| Part | Current - Supply (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Frequency | Package / Case | Package / Case [y] | Package / Case [x] | Mounting Type | Linearity | Supplier Device Package | For Measuring | Response Time | Polarization | Sensor Type | Output | Current - Sensing | Voltage - Supply [Min] | Voltage - Supply [Max] | Sensitivity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 15 mA | -40 °C | 110 °C | 80 kHz | 8-SOIC | 3.9 mm | 0.154 in | Surface Mount | 0.08 % | 8-SO | AC/DC | 4 µs | Bidirectional | Hall Effect | Ratiometric Voltage | 50 A | 4.5 V | 5.5 V | 40 mV/mT |
Broadcom Limited | 15 mA | -40 °C | 110 °C | 80 kHz | 8-SOIC | 3.9 mm | 0.154 in | Surface Mount | 0.08 % | 8-SO | AC/DC | 4 µs | Bidirectional | Hall Effect | Ratiometric Voltage | 50 A | 4.5 V | 5.5 V | 40 mV/mT |
