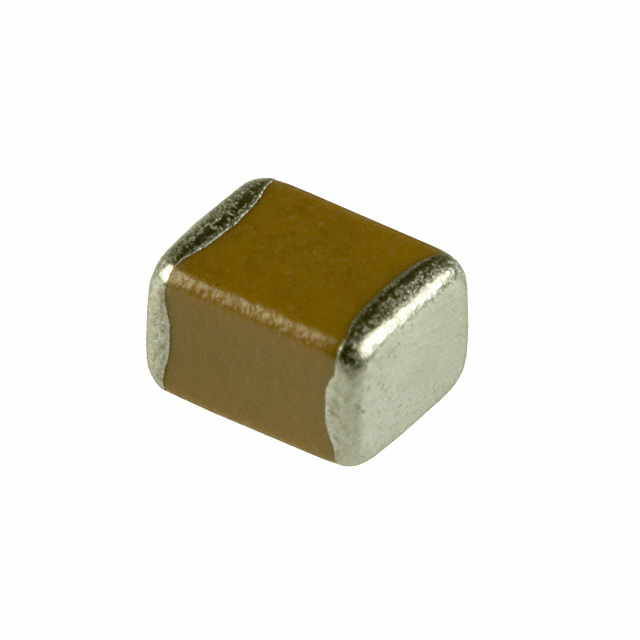

ECJ-4YB Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP CER 47UF 6.3V X5R 1210

Part	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Applications	Thickness (Max) [Max]	Thickness (Max) [Max]	Capacitance	Package / Case	Package / Case	Temperature Coefficient	Tolerance
Panasonic Electronic Components ECJ-4YB0J476M	6.3 VDC	-55 C	85 °C	2.5 mm	0.098 in	3.2 mm	0.126 "	MLCC Surface Mount	General Purpose	2.5 mm	0.098 in	47 µF	1210	3225 Metric	X5R	20 %
Panasonic Electronic Components ECJ-4YB2A474K	100 V	-55 C	125 °C	2.5 mm	0.098 in	3.2 mm	0.126 "	MLCC Surface Mount	General Purpose	2 mm	0.079 in	0.47 µF	1210	3225 Metric	X7R	10 %
Panasonic Electronic Components ECJ-4YB2A684K	100 V	-55 C	125 °C	2.5 mm	0.098 in	3.2 mm	0.126 "	MLCC Surface Mount	General Purpose	2.5 mm	0.098 in	0.68 µF	1210	3225 Metric	X7R	10 %
Panasonic Electronic Components ECJ-4YB1A106K	10 V	-55 C	85 °C	2.5 mm	0.098 in	3.2 mm	0.126 "	MLCC Surface Mount	General Purpose	2 mm	0.079 in	10 µF	1210	3225 Metric	X5R	10 %
Panasonic Electronic Components ECJ-4YB1E475K	25 VDC	-55 C	85 °C	2.5 mm	0.098 in	3.2 mm	0.126 "	MLCC Surface Mount	General Purpose	2 mm	0.079 in	4.7 µF	1210	3225 Metric	X5R	10 %
Panasonic Electronic Components ECJ-4YB1E225K	25 VDC	-55 C	85 °C	2.5 mm	0.098 in	3.2 mm	0.126 "	MLCC Surface Mount	General Purpose	2 mm	0.079 in	2.2 µF	1210	3225 Metric	X5R	10 %
Panasonic Electronic Components ECJ-4YB1A226M	10 V	-55 C	85 °C	2.5 mm	0.098 in	3.2 mm	0.126 "	MLCC Surface Mount	General Purpose	2.5 mm	0.098 in	22 µF	1210	3225 Metric	X5R	20 %
Panasonic Electronic Components ECJ-4YB1H105K	50 VDC	-55 C	85 °C	2.5 mm	0.098 in	3.2 mm	0.126 "	MLCC Surface Mount	General Purpose	2 mm	0.079 in	1 µF	1210	3225 Metric	X5R	10 %
Panasonic Electronic Components ECJ-4YB1C226M	16 V	-55 C	85 °C	2.5 mm	0.098 in	3.2 mm	0.126 "	MLCC Surface Mount	General Purpose	2.5 mm	0.098 in	22 µF	1210	3225 Metric	X5R	20 %
Panasonic Electronic Components ECJ-4YB0J107M	6.3 VDC	-55 C	85 °C	2.5 mm	0.098 in	3.2 mm	0.126 "	MLCC Surface Mount	General Purpose	2.5 mm	0.098 in	100 µF	1210	3225 Metric	X5R	20 %
