85803CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

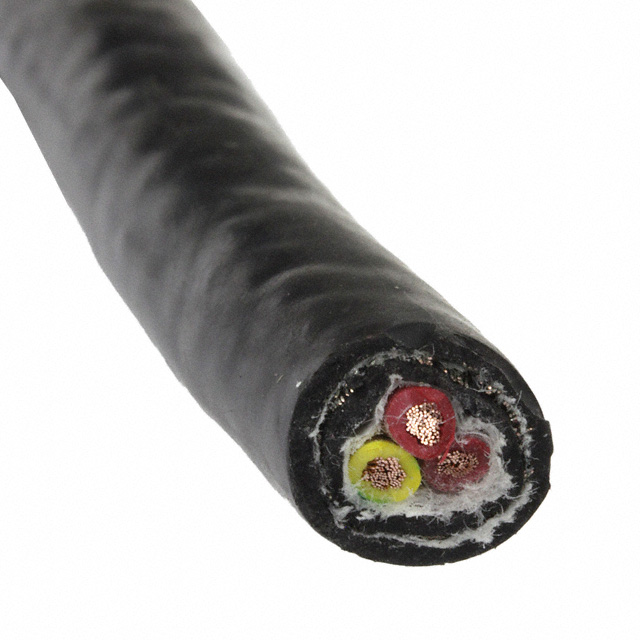

CABLE 3COND 18AWG BLK SHLD 100'
| Part | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Shield Coverage | Conductor Insulation | Shield Type | Length [x] | Length [x] | Number of Conductors | Conductor Material | Shield Material | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 0.376 in | 9.55 mm | UL Style 2587 | 85 % | Poly-Vinyl Chloride (PVC) | Braid | 30.5 m | 100 ft | 3 | Copper Bare | Copper Tinned | Multi-Conductor | 105 | 38 AWG | 18 AWG | 600 V | 0.889 mm | 0.035 in | Black | Poly-Vinyl Chloride (PVC) |
ALPHA WIRE | 0.376 in | 9.55 mm | UL Style 2587 | 85 % | Poly-Vinyl Chloride (PVC) | Braid | 152.4 m | 500 ' | 3 | Copper Bare | Copper Tinned | Multi-Conductor | 105 | 38 AWG | 18 AWG | 600 V | 0.889 mm | 0.035 in | Black | Poly-Vinyl Chloride (PVC) |
