195207 Series
Manufacturer: Ledex Dormeyer Saia, a Division of Johnson Electric
Beta
⌘K
TUBULAR SOLENOID STA PUSH 1 X 2
| Part | Type | Termination Style | Bushing Thread | Mounting Type | Voltage - Rated | Stroke Length [x] | Stroke Length [x] | Shaft Detail | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Duty Cycle | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Technology | Power (Watts) | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

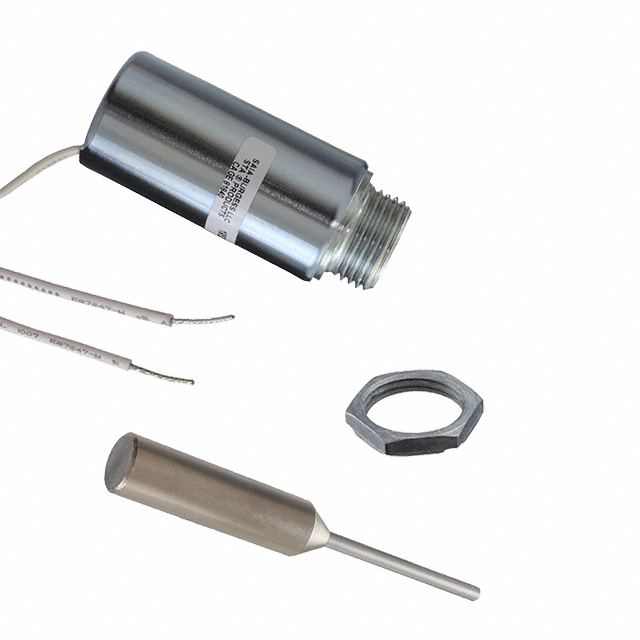

 Ledex Dormeyer Saia, a Division of Johnson Electric | Closed Frame (Push) Tubular | Wire Leads | 3/4-16 UNF | Panel Mount | 12 VDC | 0.7 in | 17.78 mm | Round | 2 in | 25.4 mm | 1 " | 50.8 mm | Intermittent | 0.125 in | 3.18 mm | Electromechanical | 29.4 W | 4.9 Ohm |

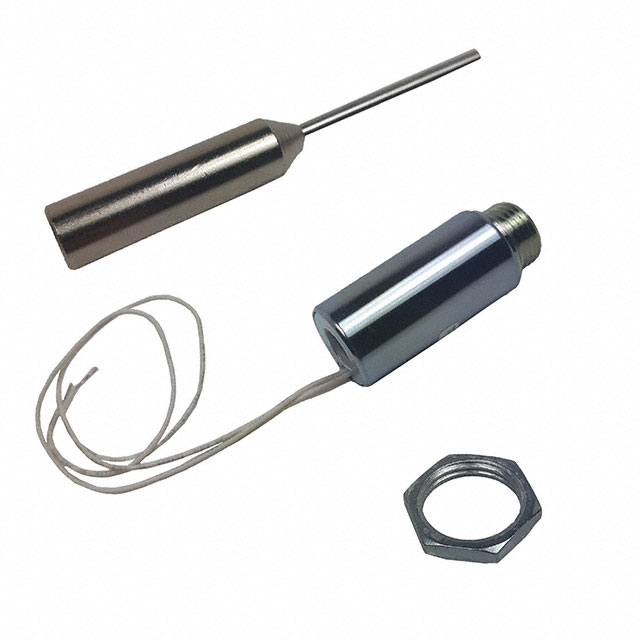

 Ledex Dormeyer Saia, a Division of Johnson Electric | Closed Frame (Push) Tubular | Wire Leads | 3/4-16 UNF | Panel Mount | Round | 2 in | 25.4 mm | 1 " | 50.8 mm | 0.125 in | 3.18 mm | Electromechanical | 19.2 Ohm |
