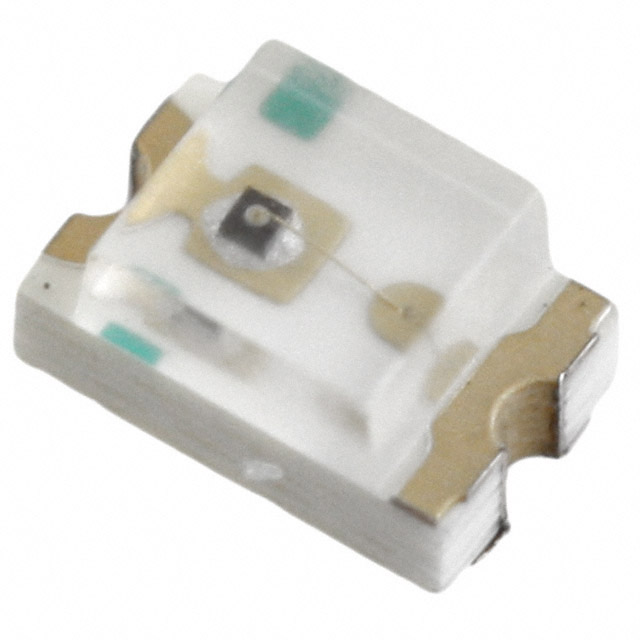

SML-LXT0805 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LED RED DIFFUSED SMD

Part	Configuration	Millicandela Rating	Current - Test	Viewing Angle	Height (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Color	Wavelength - Peak	Mounting Type	Lens Style	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Lens Color	Lens Transparency	Lens Size [y]	Lens Size [x]	Height (Max) [z]	Millicandela Rating	Current - Test [custom]	Current - Test [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]

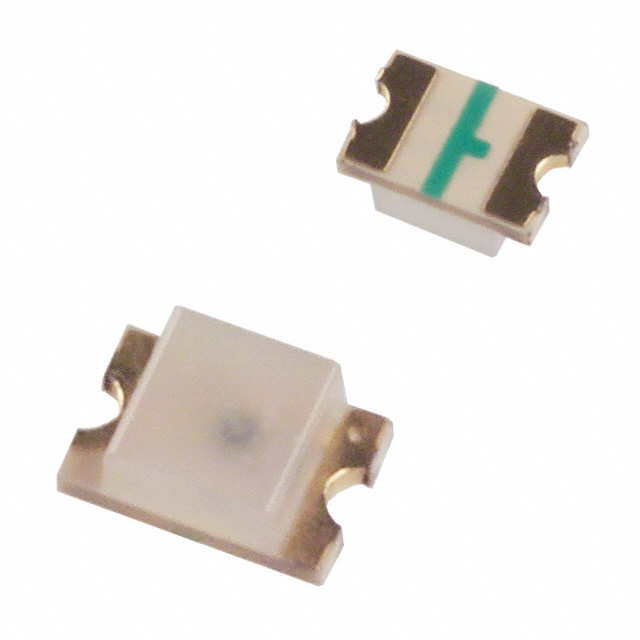

Lumex Opto/Components Inc. SML-LXT0805IW-TR	Standard	11 mcd	20 mA	140 °	0.8 mm	2 V	Red	635 nm	Surface Mount	Rectangle with Flat Top	2 mm	1.25 mm	0805	White	Diffused	1.25 mm	1.3 mm
Lumex Opto/Components Inc. SML-LXT0805GW-TR	Standard	11 mcd	20 mA	140 °	0.8 mm	2 V	Green	565 nm	Surface Mount	Rectangle with Flat Top	2 mm	1.25 mm	0805	White	Diffused	1.25 mm	1.3 mm
Lumex Opto/Components Inc. SML-LXT0805YW-TR	Standard	10 mcd	20 mA	140 °	0.8 mm	2.1 V	Yellow	585 nm	Surface Mount	Rectangle with Flat Top	2 mm	1.25 mm	0805	White	Diffused	1.25 mm	1.3 mm
Lumex Opto/Components Inc. SML-LXT0805SRW-TR	Standard	21 mcd	20 mA	140 °	0.8 mm	1.8 V	Red	660 nm	Surface Mount	Rectangle with Flat Top	2 mm	1.25 mm	0805	White	Diffused	1.25 mm	1.3 mm
Lumex Opto/Components Inc. SML-LXT0805SYW-TR	Standard	60 mcd	20 mA	140 °	0.8 mm	2.1 V	Yellow	590 nm	Surface Mount	Rectangle with Flat Top	2 mm	1.25 mm	0805	White	Diffused	1.25 mm	1.3 mm

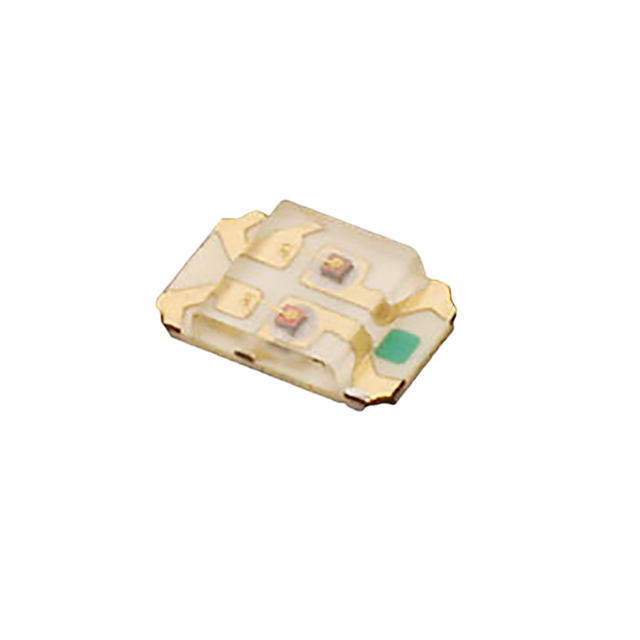

Lumex Opto/Components Inc. SML-LXT0805SISUGC	Independent			120 °		1.95 V 2.1 V	Green Red	574 nm 645 nm	Surface Mount	Rectangle with Flat Top	1.25 mm	2 mm	0805	Colorless	Clear	1.25 mm	1.2 mm	0.4 mm	250mcd Red 50mcd Green	20 mA	20 mA
Lumex Opto/Components Inc. SML-LXT0805SUGW-TR	Independent	40 mcd	20 mA	140 °		2.2 V	Green		Surface Mount	Rectangle with Flat Top	2 mm	1.25 mm	0805	White	Diffused	1.24 mm	1.4 mm	1.25 mm
Lumex Opto/Components Inc. SML-LXT0805SBW-TR	Standard	11 mcd	20 mA	140 °	0.8 mm	4 V	Blue	430 nm	Surface Mount	Rectangle with Flat Top	2 mm	1.25 mm	0805	White	Diffused	1.25 mm	1.3 mm
Lumex Opto/Components Inc. SML-LXT0805SIUGUBW				140 °		2 V 3.3 V 3.3 V	Blue Green Red		Surface Mount	Rectangle with Flat Top	2 mm	1.25 mm	0805	White	Diffused	1.3 mm	1.4 mm	1.25 mm				165 mcd	236 mcd	104 mcd	20mA Blue 20mA Green 20mA Red	520 nm	632 nm	468 nm
