3202 Series

Catalog

SPLICE,SOLIS BUTT 4

Part	Wire Gauge	Features	Terminal Type	Number of Wire Entries	Insulation	Termination	Thickness	Thickness	Contact Material	Stud/Tab Size	Contact Finish	Length - Overall	Length - Overall	Mounting Type	Width - Outer Edges [y]	Width - Outer Edges [y]	Color	Terminal Style	Length - Overall [x]	Length - Overall [x]	Tab Thickness	Tab Thickness	Wire Gauge [Max]	Wire Gauge [Min]

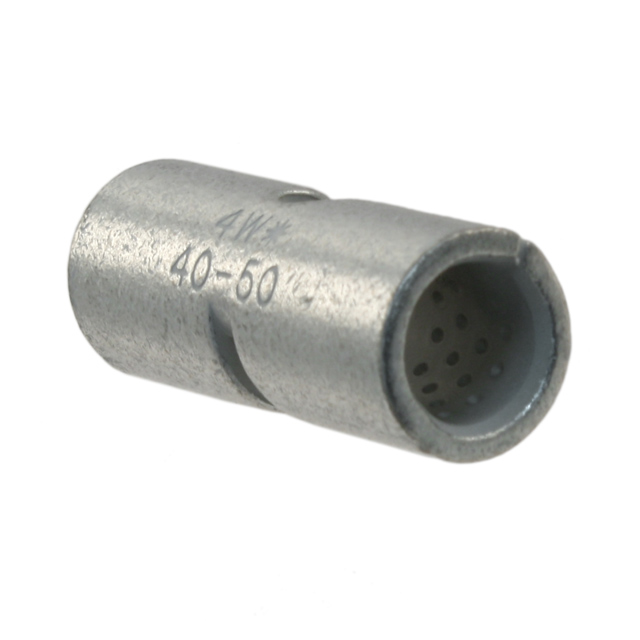

TE Connectivity Raychem Cable Protection 320238	4 AWG	Brazed Seam	Butt Splice Individual Openings Inline	2	Non-Insulated	Crimp
TE Connectivity Raychem Cable Protection 320266		Serrated Termination	D-Shaped		Non-Insulated	Crimp	2.31 mm	0.091 in	Copper	0.3125 Stud	Tin	54.43 mm	2.143 in	Free Hanging (In-Line)	1.082 in	27.48 mm
TE Connectivity Raychem Cable Protection 320209		Serrated Termination	Rectangular Tongue		Insulated	Crimp			Copper	10 Stud	Tin			Free Hanging (In-Line)	0.312 in	7.92 mm	Red	Single Stud Hole	22.68 mm	0.893 in	0.031 "	0.79 mm	22 AWG	16 AWG
