Q-1T01T0 Series
Manufacturer: Amphenol Custom Cable
Beta
⌘K

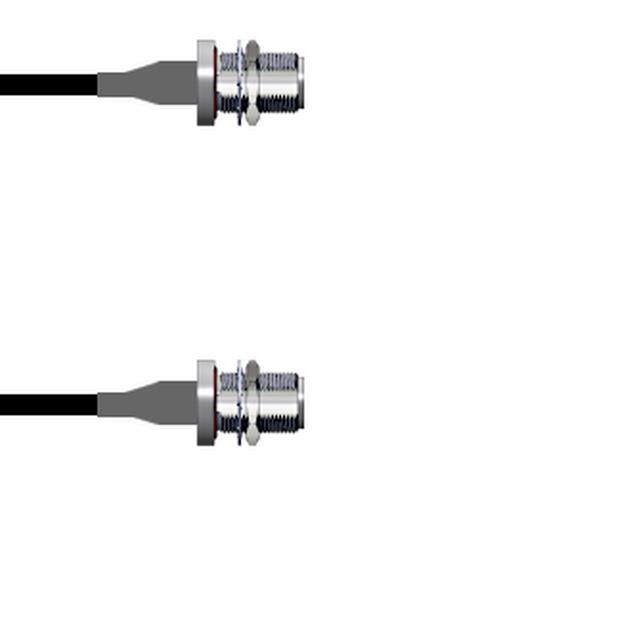

CBL ASSY NTYPE JACK-JACK 29.53"
| Part | 1st Connector | 2nd Connector | Cable Type | Color | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector Mounting Feature | Frequency - Max [Max] | 2nd Connector Mounting Type | 1st Contact Gender | Style | Length | Length | Features | 2nd Contact Gender | Overall Impedance | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Custom Cable | N-Type Jack | N-Type Jack | RG-316 | Copper | Panel Mount | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | 11 GHz | Panel Mount | Female | N-Type to N-Type | 29.53 " | 750 mm | Shielded | Female | 50 Ohms | |||
Amphenol Custom Cable | N-Type Jack | N-Type Jack | RG-316 | Copper | Panel Mount | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | 11 GHz | Panel Mount | Female | N-Type to N-Type | 12 " | 304.8 mm | Shielded | Female | 50 Ohms | |||
Amphenol Custom Cable | N-Type Jack | N-Type Jack | RG-316 | Copper | Panel Mount | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | 11 GHz | Panel Mount | Female | N-Type to N-Type | 19.69 " | 50 cm | Shielded | Female | 50 Ohms | |||
Amphenol Custom Cable | N-Type Jack | N-Type Jack | RG-316 | Copper | Panel Mount | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | 11 GHz | Panel Mount | Female | N-Type to N-Type | 72 in | 1.8 m | Shielded | Female | 50 Ohms | 6 ft | ||
 Amphenol Custom Cable | N-Type Jack | N-Type Jack | RG-174 | Black | Panel Mount | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | 11 GHz | Panel Mount | Female | N-Type to N-Type | 36 in | 91.44 cm | Shielded | Female | 50 Ohms | |||
Amphenol Custom Cable | N-Type Jack | N-Type Jack | RG-316 | Copper | Panel Mount | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | 11 GHz | Panel Mount | Female | N-Type to N-Type | 84 in | 2.1 m | Shielded | Female | 50 Ohms | 7 ft | ||
Amphenol Custom Cable | N-Type Jack | N-Type Jack | RG-316 | Copper | Panel Mount | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | 11 GHz | Panel Mount | Female | N-Type to N-Type | 3 in | 76.2 mm | Shielded | Female | 50 Ohms | |||
Amphenol Custom Cable | N-Type Jack | N-Type Jack | RG-316 | Copper | Panel Mount | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | 11 GHz | Panel Mount | Female | N-Type to N-Type | Shielded | Female | 50 Ohms | 457.2 mm | 457.2 mm | |||
Amphenol Custom Cable | N-Type Jack | N-Type Jack | RG-174 | Black | Panel Mount | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | 11 GHz | Panel Mount | Female | N-Type to N-Type | 9 " | 228.6 mm | Shielded | Female | 50 Ohms | |||
Amphenol Custom Cable | N-Type Jack | N-Type Jack | RG-174 | Black | Panel Mount | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | 11 GHz | Panel Mount | Female | N-Type to N-Type | 6 in | 152.4 mm | Shielded | Female | 50 Ohms |
