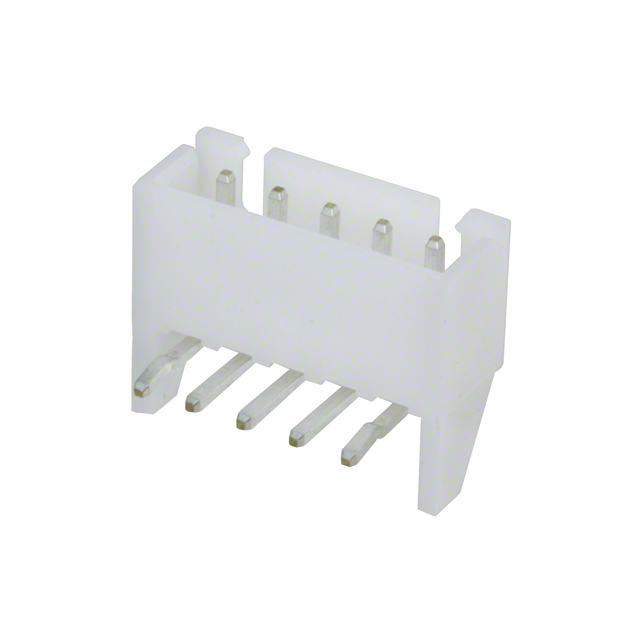

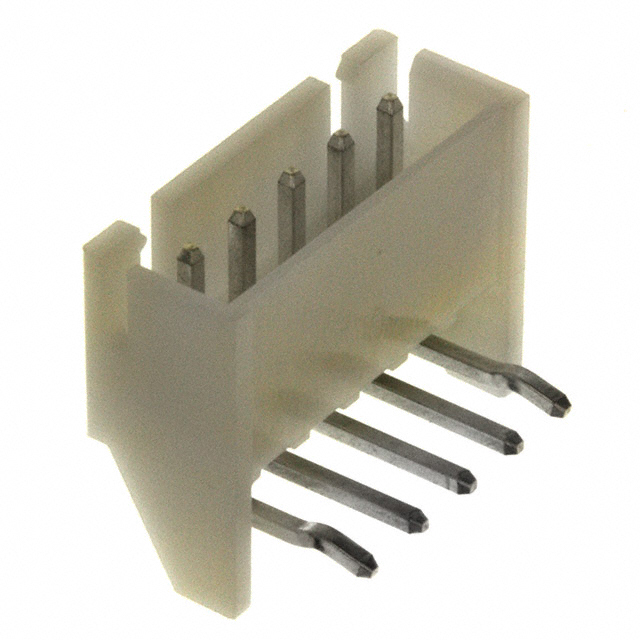

S5B-XH-A Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 5POS 2.5MM
| Part | Number of Positions Loaded | Voltage Rating | Termination | Contact Shape | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Connector Type | Number of Rows | Contact Finish - Post | Insulation Material | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Height [z] | Insulation Height [z] | Insulation Color | Contact Type | Style | Contact Length - Post [x] | Contact Length - Post | Mounting Type | Contact Material | Material Flammability Rating | Number of Positions | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | All | 250 V | Press-Fit Solder | Square | 2.5 mm | 0.098 in | 3 A | Header | 1 | Tin | Nylon 6/6 Polyamide (PA66) | Detent Lock | 85 °C | -25 °C | 6.1 mm | 0.24 in | Natural | Male Pin | Board to Cable/Wire | 0.134 " | 3.4 mm | Right Angle Through Hole | Brass | UL94 V-0 | 5 | Shrouded - 4 Wall |
 JST Sales America Inc. | All | 250 V | Press-Fit Solder | Square | 2.5 mm | 0.098 in | 3 A | Header | 1 | Tin | Nylon 6/6 Polyamide (PA66) | Detent Lock | 85 °C | -25 °C | 6.1 mm | 0.24 in | Natural | Male Pin | Board to Cable/Wire | 0.134 " | 3.4 mm | Right Angle Through Hole | Brass | UL94 V-0 | 5 | Shrouded - 4 Wall |
