9912 Series

Catalog

HOOK-UP STRND 12AWG YELLOW

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Voltage	Cable Type	Operating Temperature [Max]	Operating Temperature [Min]	Jacket Color	Length	Length	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]
Belden Inc. 9912 004250	0.158 in	4.01 mm	Poly-Vinyl Chloride (PVC)	30 AWG	65	12 AWG	600 V	Hook-Up	105 ░C	-25 °C	Yellow	76.2 m	250 ft	Copper Tinned	0.03 in	0.76 mm

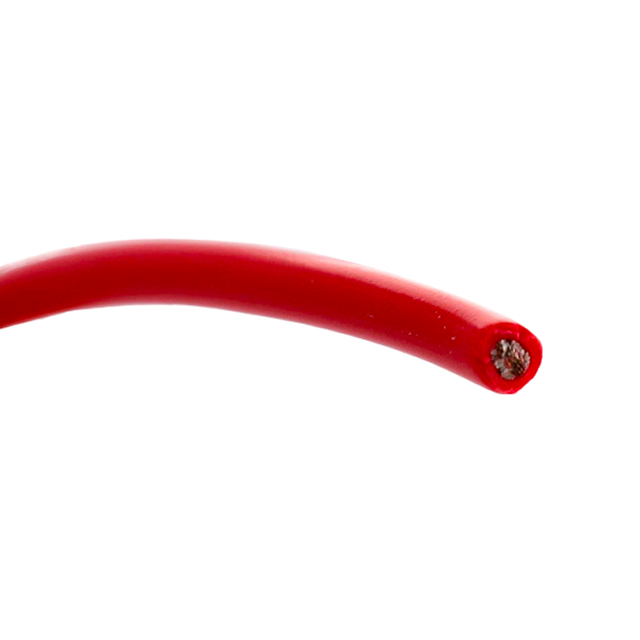

Belden Inc. 9912 002100	0.158 in	4.01 mm	Poly-Vinyl Chloride (PVC)	30 AWG	65	12 AWG	600 V	Hook-Up	105 ░C	-25 °C	Red			Copper Tinned			100 ft	30.5 m
Belden Inc. 9912 0052000	0.158 in	4.01 mm	Poly-Vinyl Chloride (PVC)	30 AWG	65	12 AWG	600 V	Hook-Up	105 ░C	-25 °C	Green			Copper Tinned	0.03 in	0.76 mm	2000 ft	609.6 m
Belden Inc. 9912 004100	0.158 in	4.01 mm	Poly-Vinyl Chloride (PVC)	30 AWG	65	12 AWG	600 V	Hook-Up	105 ░C	-25 °C	Yellow			Copper Tinned	0.03 in	0.76 mm	100 ft	30.5 m
Belden Inc. 9912 009250	0.158 in	4.01 mm	Poly-Vinyl Chloride (PVC)	30 AWG	65	12 AWG	600 V	Hook-Up	105 ░C	-25 °C	White	76.2 m	250 ft	Copper Tinned	0.03 in	0.76 mm
Belden Inc. 9912 013100	0.158 in	4.01 mm	Poly-Vinyl Chloride (PVC)	30 AWG	65	12 AWG	600 V	Hook-Up	105 ░C	-25 °C	Blue			Copper Tinned	0.03 in	0.76 mm	100 ft	30.5 m
