02K421 Series
Manufacturer: Rosenberger
Beta
⌘K
CONN RPC2.92 JACK STR 50OHM
| Part | Center Contact Plating | Dielectric Material | Body Material | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Connector Type | Connector Style [x] | Shield Termination | Frequency - Max [Max] | Center Contact Material | Mounting Type | Mounting Feature | Contact Termination | Fastening Type | Housing Color | Number of Ports | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

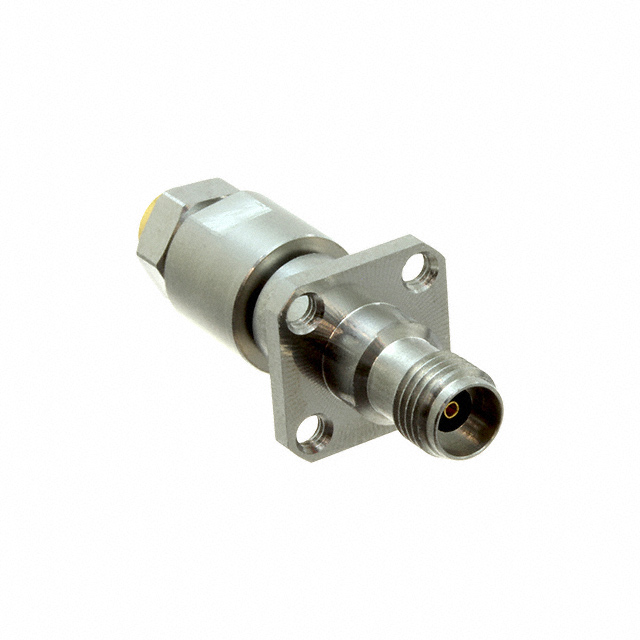

 Rosenberger | Gold | Polystyrene (PS) | Stainless Steel | 500 | 85 °C | -40 C | 250 V | Female Socket Jack | 2.92 mm | Solder | 40 GHz | Beryllium Copper | Panel Mount | Flange | Solder | Threaded | Silver | 1 | 50 Ohms |

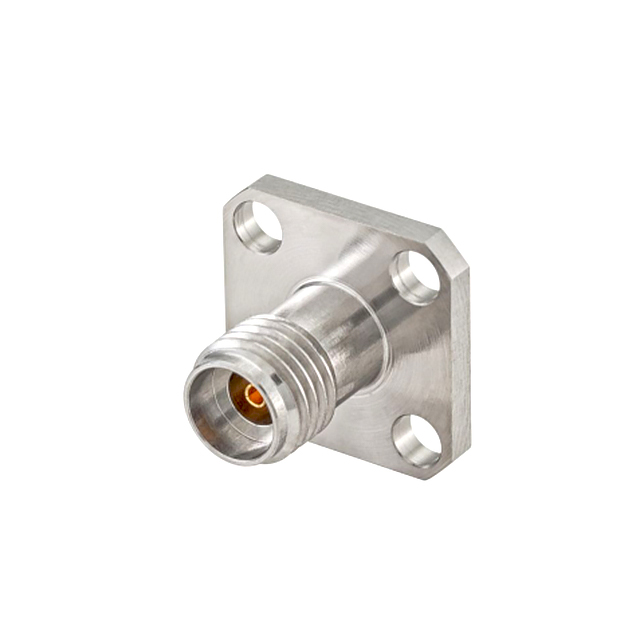

 Rosenberger | Gold | Polystyrene (PS) | Stainless Steel | 500 | 85 °C | -40 C | 250 V | Female Socket Jack | 2.92 mm | Solder | 40 GHz | Beryllium Copper | Panel Mount | Flange | Solder | Threaded | Silver | 1 | 50 Ohms |
