ESW108M Series

Manufacturer: KEMET

Catalog

CAP ALUM 1000UF 20% 35V RADIAL

Part	Lead Spacing	Lead Spacing	Size / Dimension	Size / Dimension [diameter]	Package / Case	Mounting Type	Impedance	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	ESR (Equivalent Series Resistance)	Voltage - Rated	Polarization	Tolerance	Lifetime @ Temp.	Ripple Current @ Low Frequency	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ High Frequency	Size / Dimension [diameter]	Height - Seated (Max)

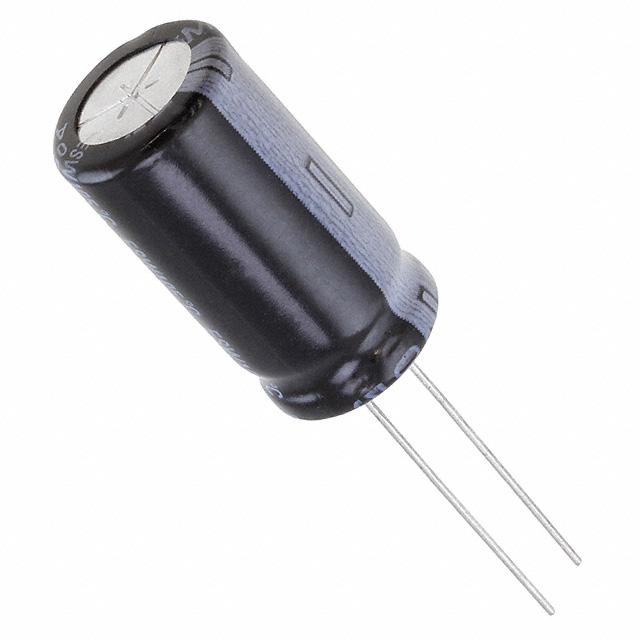

KEMET ESW108M035AL4AR	0.197 "	5 mm	13 mm	0.512 in	Can Radial	Through Hole	30 mOhms	General Purpose	1.063 in	27 mm	30 mOhm	35 V	Polar	20 %	6000 Hrs	1.338 A	1000 µF	-40 C	105 ░C	2.23 A
KEMET ESW108M063AM3AA	0.295 in	7.5 mm		0.63 in	Can Radial	Through Hole	36 mOhms	General Purpose	1.496 in		45 mOhm	63 V	Polar	20 %	6000 Hrs	1.074 A	1000 µF	-40 C	105 ░C	1.79 A	16 mm	38 mm
KEMET ESW108M050AM7AA	0.295 in	7.5 mm		0.63 in	Can Radial	Through Hole	34 mOhms	General Purpose	1.063 in	27 mm	25 mOhm	50 VDC	Polar	20 %	6000 Hrs	1.533 A	1000 µF	-40 C	105 ░C	2.555 A	16 mm
