JWM21B Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER DPST 10A 125V
| Part | Electrical Life | Mechanical Life | Color - Actuator/Cap | Ingress Protection | Voltage Rating - AC | Circuit | Actuator Marking | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Features | Current Rating (Amps) | Actuator Type | Mounting Type | Switch Function | Termination Style | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

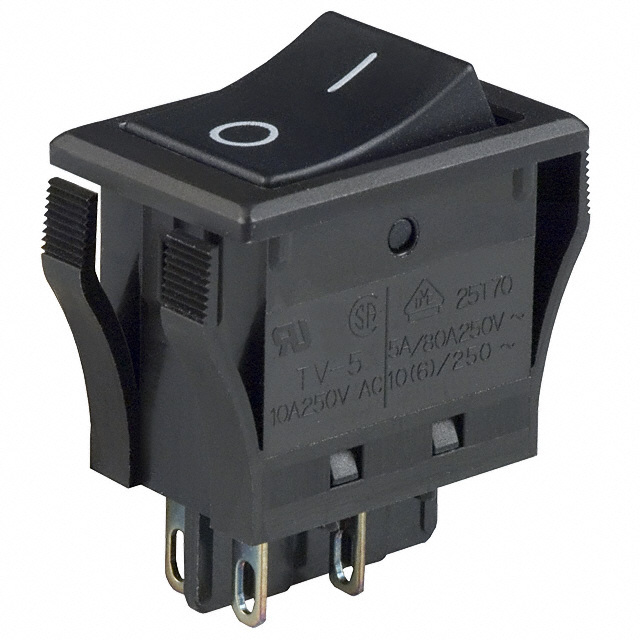

 NKK Switches | 25000 Steps | 25000 Steps | Red | Dust Proof | 125 V | DPST | O I | CSA UL VDE | -25 °C | 70 °C | Epoxy Sealed Terminals | 10 A | Concave (Curved) | Panel Mount Snap-In | On-Off | Solder Quick Connect - 0.110" (2.8mm) | 15.4 mm | 24 mm |
 NKK Switches | 25000 Steps | 25000 Steps | Black | Dust Proof | 125 V | DPST | O - | CSA UL VDE | -25 °C | 70 °C | Epoxy Sealed Terminals | 10 A | Concave (Curved) | Panel Mount Snap-In | On-Off | Solder Quick Connect - 0.110" (2.8mm) | 15.4 mm | 24 mm |

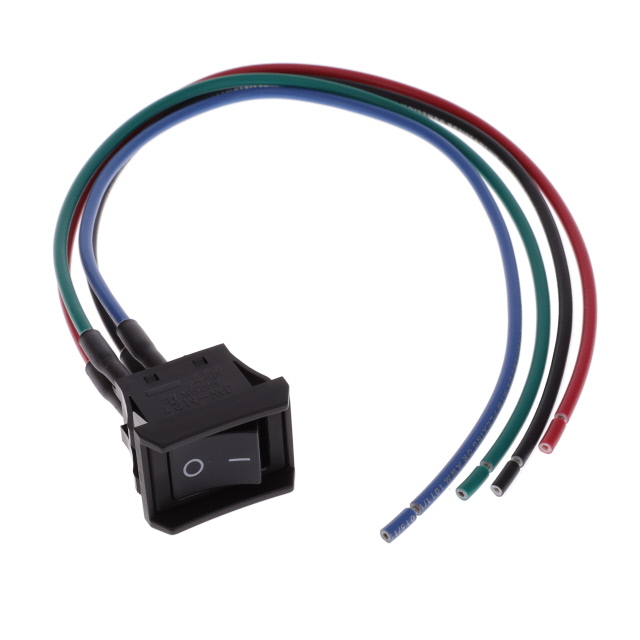

 NKK Switches | 25000 Steps | 25000 Steps | Black | Dust Proof | 125 V | DPST | O - | CSA UL VDE | -25 °C | 70 °C | 10 A | Concave (Curved) | Panel Mount Snap-In | On-Off | Wire Leads | 15.4 mm | 24 mm | |

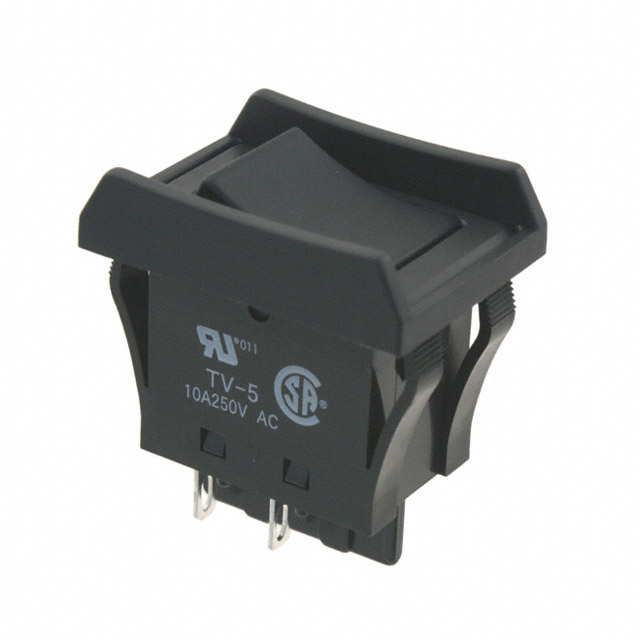

 NKK Switches | 25000 Steps | 25000 Steps | Black | Dust Proof | 125 V | DPST | No Marking | CSA UL VDE | -25 °C | 70 °C | Epoxy Sealed Terminals | 10 A | Concave (Curved) | Panel Mount Snap-In | On-Off | Solder Quick Connect - 0.110" (2.8mm) | 15.4 mm | 24 mm |

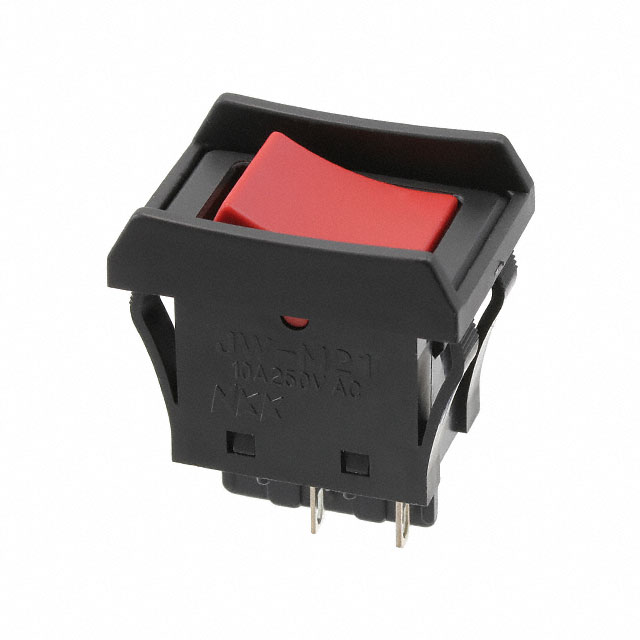

NKK Switches | 25000 Steps | 25000 Steps | Red | Dust Proof | 125 V | DPST | No Marking | CSA UL VDE | -25 °C | 70 °C | Epoxy Sealed Terminals | 10 A | Concave (Curved) | Panel Mount Snap-In | On-Off | Solder Quick Connect - 0.110" (2.8mm) | 15.4 mm | 24 mm |
 NKK Switches | 25000 Steps | 25000 Steps | Red | Dust Proof | 125 V | DPST | No Marking | CSA UL VDE | -25 °C | 70 °C | Epoxy Sealed Terminals | 10 A | Concave (Curved) | Panel Mount Snap-In | On-Off | Solder Quick Connect - 0.110" (2.8mm) | 15.4 mm | 24 mm |
NKK Switches | 25000 Steps | 25000 Steps | Black | Dust Proof | 125 V | DPST | O - | CSA UL VDE | -25 °C | 70 °C | Epoxy Sealed Terminals | 10 A | Concave (Curved) | Panel Mount Snap-In | On-Off | Solder Quick Connect - 0.110" (2.8mm) | 15.4 mm | 24 mm |
NKK Switches | 25000 Steps | 25000 Steps | Ivory | Dust Proof | 125 V | DPST | O - | CSA UL VDE | -25 °C | 70 °C | Epoxy Sealed Terminals | 10 A | Concave (Curved) | Panel Mount Snap-In | On-Off | Solder Quick Connect - 0.110" (2.8mm) | 15.4 mm | 24 mm |
 NKK Switches | 25000 Steps | 25000 Steps | Black | Dust Proof | 125 V | DPST | No Marking | CSA UL VDE | -25 °C | 70 °C | Epoxy Sealed Terminals | 10 A | Concave (Curved) | Panel Mount Snap-In | On-Off | Solder Quick Connect - 0.110" (2.8mm) | 15.4 mm | 24 mm |
NKK Switches | 25000 Steps | 25000 Steps | Ivory | Dust Proof | 125 V | DPST | O - | CSA UL VDE | -25 °C | 70 °C | Epoxy Sealed Terminals | 10 A | Concave (Curved) | Panel Mount Snap-In | On-Off | Solder Quick Connect - 0.110" (2.8mm) | 15.4 mm | 24 mm |
