KC52A3 Series
Manufacturer: E-Switch
Beta
⌘K

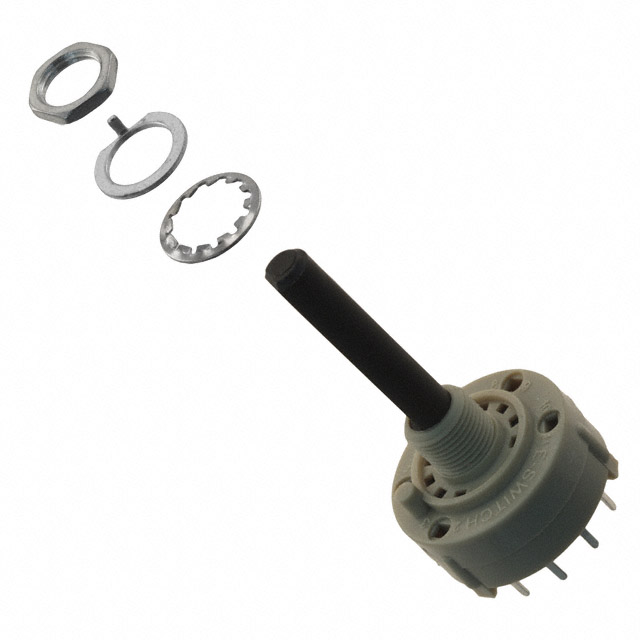

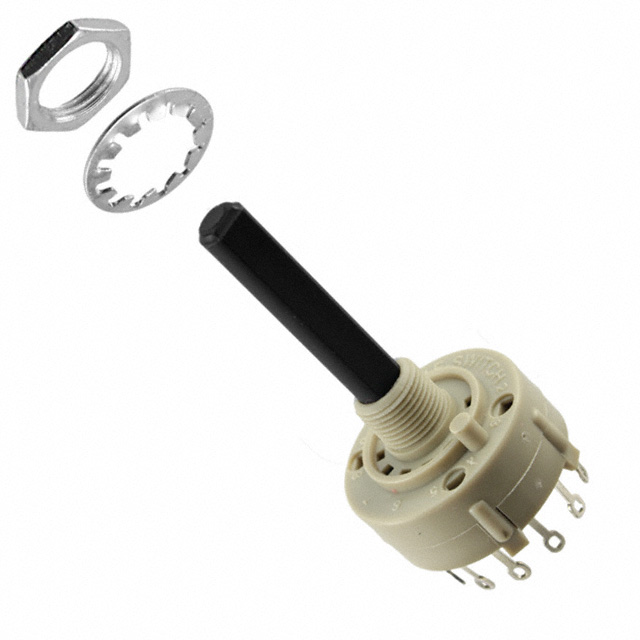

SWITCH ROTARY 12POS 350MA 125V
| Part | Panel Cutout Dimensions [diameter] | Contact Material | Index Stops | Current Rating (Amps) | Number of Poles per Deck | Depth Behind Panel [z] | Circuit per Deck | Number of Positions | Actuator Type | Termination Style | Voltage Rating - AC | Number of Decks [custom] | Contact Finish | Contact Timing | Mounting Type | Angle of Throw | Actuator Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 9.8 mm | Copper Alloy | Fixed | 350 mA | 1 | 18.5 mm | SP12T | 12 | Flatted (6.35mm Dia) | Solder Lug | 125 V | 1 | Silver | Shorting (MBB) | Panel Mount | 30 ° | 30 mm |
E-Switch | 9.8 mm | Copper Alloy | Fixed | 350 mA | 1 | 14.2 mm | SP12T | 12 | Flatted (6.35mm Dia) | PC Pin | 125 V | 1 | Gold | Non-Shorting (BBM) | Panel Mount Through Hole | 30 ° | 30 mm |
E-Switch | 10.2 mm | Copper Alloy | Fixed | 350 mA | 1 | 14.2 mm | SP12T | 12 | Flatted (6.35mm Dia) | PC Pin | 125 V | 1 | Silver | Non-Shorting (BBM) | Panel Mount Through Hole | 30 ° | 38 mm |
 E-Switch | 9.8 mm | Copper Alloy | Fixed | 350 mA | 1 | 14.2 mm | SP12T | 12 | Flatted (6.35mm Dia) | PC Pin | 125 V | 1 | Silver | Non-Shorting (BBM) | Panel Mount Through Hole | 30 ° | 30 mm |
 E-Switch | 9.8 mm | Copper Alloy | Fixed | 350 mA | 1 | 18.5 mm | SP12T | 12 | Flatted (6.35mm Dia) | Solder Lug | 125 V | 1 | Silver | Non-Shorting (BBM) | Panel Mount | 30 ° | 30 mm |
