34167 Series

Catalog

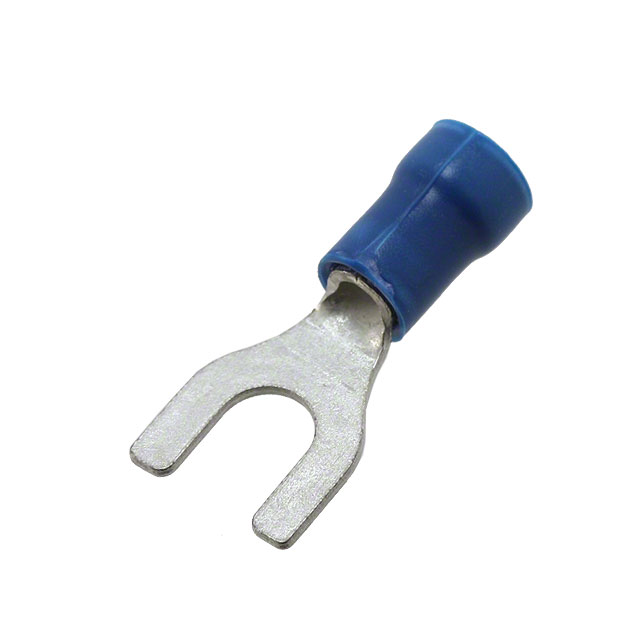

FORK / SPADE TONGUE TERMINAL, PLASTI-GRIP SERIES, 16 AWG, 14 AWG, 2.62 MM², M5, #10

Part	Terminal Type	Color	Material - Insulation	Length - Termination	Length - Termination	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Length - Ring Center to Termination	Length - Ring Center to Termination [x]	Stud/Tab Size	Features	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Contact Material	Width - Outer Edges	Width - Outer Edges	Insulation	Termination	Mounting Type	Length - Overall [x]	Length - Overall [x]
TE Connectivity Raychem Cable Protection 2-34167-1	Standard	Blue	Poly-Vinyl Chloride (PVC)	10.57 mm	0.416 in	5 mm	0.197 in	7.92 mm	0.312 in	10 Stud	Serrated Termination	4.9 mm	3 mm	0.193 in	0.118 in	Copper	0.385 in	9.78 mm	Insulated	Crimp	Free Hanging (In-Line)	23.37 mm	0.92 "
TE Connectivity Raychem Cable Protection 8-34167-1	Standard	Blue	Poly-Vinyl Chloride (PVC)	10.57 mm	0.416 in	5 mm	0.197 in	7.92 mm	0.312 in	10 Stud	Serrated Termination	4.9 mm	3 mm	0.193 in	0.118 in	Copper	0.385 in	9.78 mm	Insulated	Crimp	Free Hanging (In-Line)	23.37 mm	0.92 "
