PC4SD21 Series

Catalog

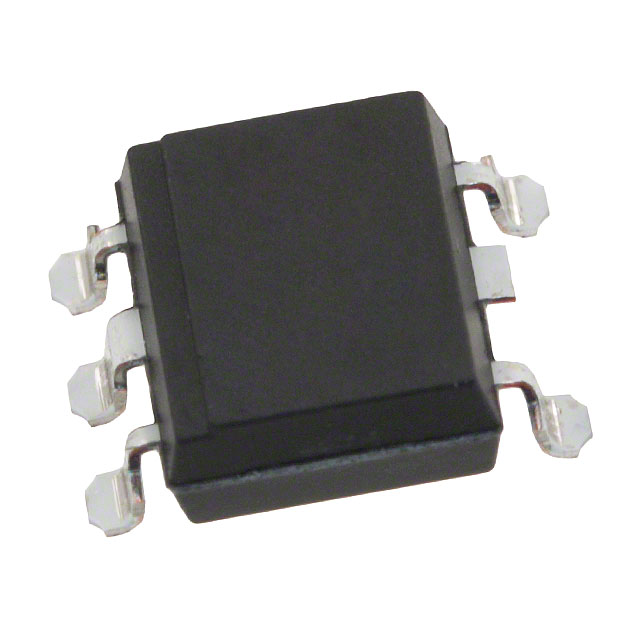

OPTOISOLATOR 5KV TRIAC 6DIP

Part	Approval Agency	Current - On State (It (RMS)) (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Package Leads	Package Name	Voltage - Isolation	Current - Hold (Ih)	Mounting Type	Number of Channels	Turn On Time (Max)	Current - DC Forward (If) (Max)	Output Type	Voltage - Off State	Zero Crossing Circuit	Static dV/dt (Min)	Current - LED Trigger (Ift) (Max)	Voltage - Forward (Vf) (Typ)	Package / Case
SHARP/Socle Technology PC4SD21NTZDF	CSA UR	100 mA	100 °C	-30 °C	5 Leads	6-DIP	5000 Vrms	3.5 mA	Through Hole	1	50 µs	50 mA	Triac	800 V	Yes	500 V/µs	3 mA	1.2 V
SHARP/Socle Technology PC4SD21YXPDF	CSA UR VDE	100 mA	100 °C	-30 °C		6-SMD	5000 Vrms	3.5 mA	Surface Mount	1	50 µs	50 mA	Triac	800 V	Yes	500 V/µs	3 mA	1.2 V	6-SMD
SHARP/Socle Technology PC4SD21YXPCF	CSA UR VDE	100 mA	100 °C	-30 °C		6-SMD	5000 Vrms	3.5 mA	Surface Mount	1	50 µs	50 mA	Triac	800 V	Yes	500 V/µs	5 mA	1.2 V	6-SMD
SHARP/Socle Technology PC4SD21YXPCH	CSA UR VDE	100 mA	100 °C	-30 °C	5 Leads	6-SMD	5000 Vrms	3.5 mA	Surface Mount	1	50 µs	50 mA	Triac	800 V	Yes	500 V/µs	5 mA	1.2 V
SHARP/Socle Technology PC4SD21YXPDH	CSA UR VDE	100 mA	100 °C	-30 °C		5-SMD	5000 Vrms	3.5 mA	Surface Mount	1	50 µs	50 mA	Triac	800 V	Yes	500 V/µs	3 mA	1.2 V	5-SMD Gull Wing
