LHA-05 Series
Manufacturer: Adam Tech
Beta
⌘K

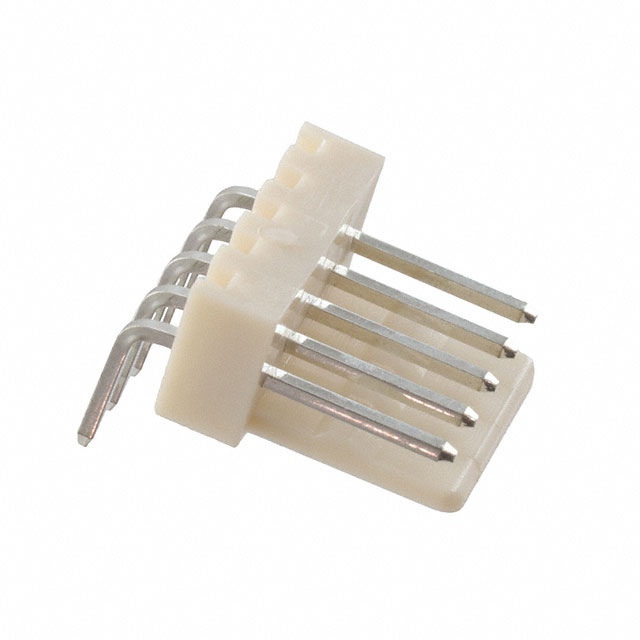

CONN HEADER R/A 5POS 2.54MM
| Part | Contact Length - Post [x] | Contact Length - Post | Number of Positions Loaded | Termination | Current Rating (Amps) | Shrouding | Mounting Type | Insulation Material | Pitch - Mating | Pitch - Mating | Contact Length - Mating | Contact Length - Mating | Insulation Height [z] | Insulation Height [z] | Voltage Rating | Fastening Type | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Material Flammability Rating | Insulation Color | Style | Contact Material | Contact Shape | Number of Rows | Number of Positions | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | 0.134 " | 3.4 mm | All | Solder | 3 A | Shrouded - 1 Wall | Right Angle Through Hole | Nylon 6/6 Polyamide (PA66) | 0.1 " | 2.54 mm | 0.293 in | 7.45 mm | 0.228 " | 5.8 mm | 250 VAC | Friction Lock | Header | 85 °C | -25 °C | Male Pin | UL94 V-2 | White | Board to Cable/Wire | Brass | Square | 1 | 5 | Tin |
