725-023 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 23POS 0.100

Part	Termination Rows	Material - Insulation	Number of Positions/Bay/Row	Contact Finish	Mounting Type	Termination	Number of Rows	Gender	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Positions	Color	Read Out	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch
EDAC Inc. 725-023-540-101	1	Polyester Thermoplastic	23	Gold	Through Hole	Press-Fit Wire Wrap	1	Female	Non Specified - Single Edge	-40 C	105 ░C	Copper Alloy	23	Black	Single	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	0.1 "	2.54 mm

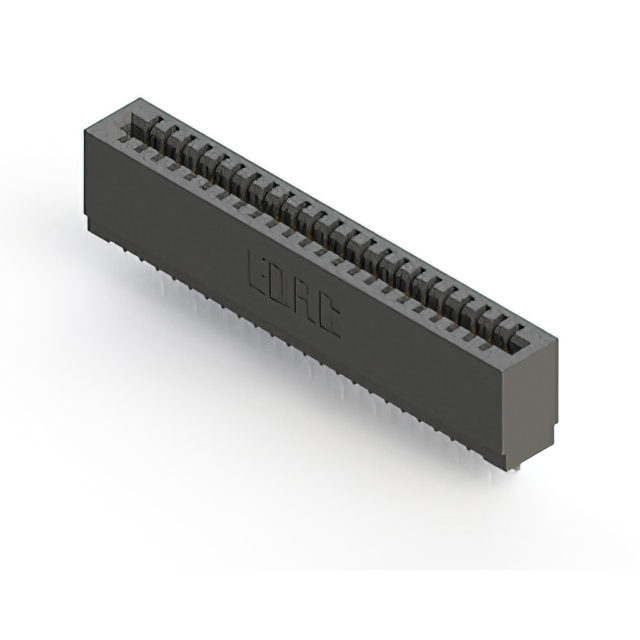

EDAC Inc. 725-023-522-101	1	Polyester Thermoplastic	23	Gold	Through Hole	Press-Fit	1	Female	Non Specified - Single Edge	-40 C	105 ░C	Copper Alloy	23	Black	Single	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	0.1 "	2.54 mm

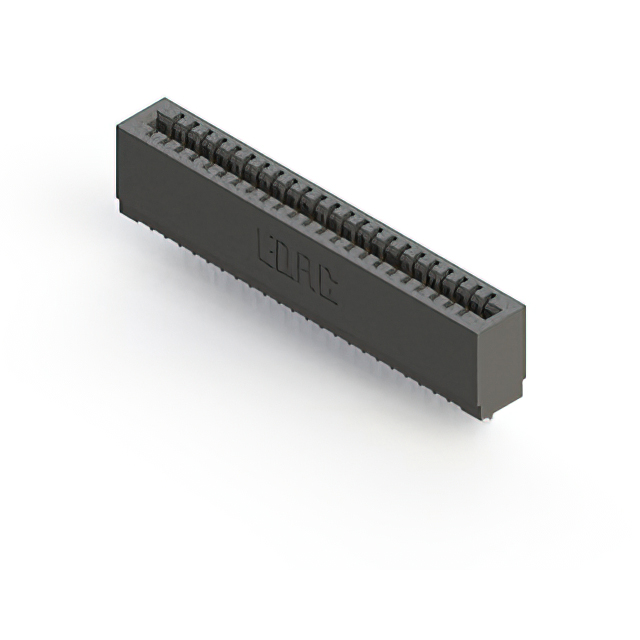

EDAC Inc. 725-023-541-101	1	Polyester Thermoplastic	23	Gold	Through Hole	Press-Fit Wire Wrap	1	Female	Non Specified - Single Edge	-40 C	105 ░C	Copper Alloy	23	Black	Single	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	0.1 "	2.54 mm

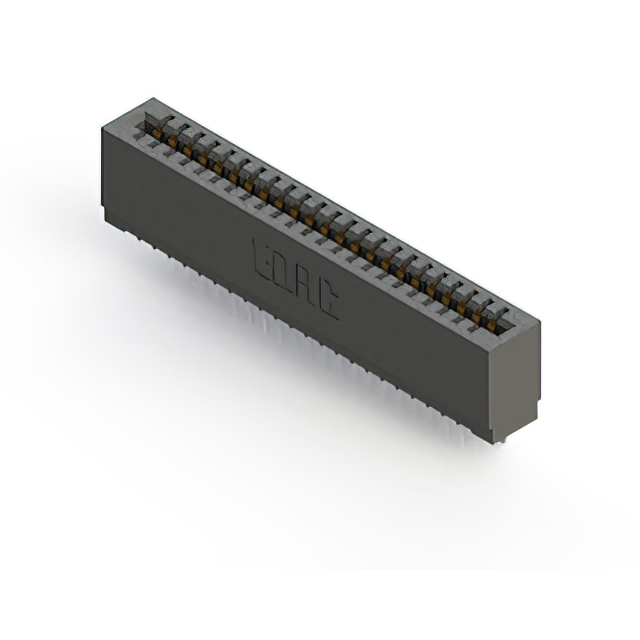

EDAC Inc. 725-023-545-101	1	Polyester Thermoplastic	23	Gold	Through Hole	Press-Fit Wire Wrap	1	Female	Non Specified - Single Edge	-40 C	105 ░C	Copper Alloy	23	Black	Single	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	0.1 "	2.54 mm

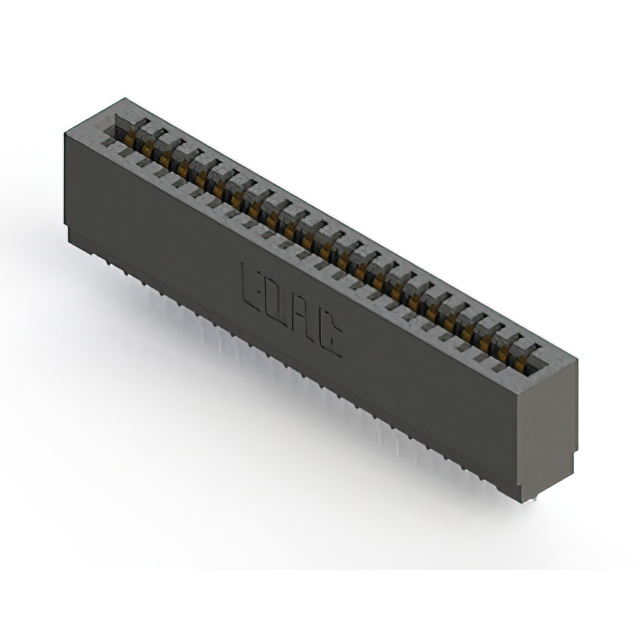

EDAC Inc. 725-023-525-101	1	Polyester Thermoplastic	23	Gold	Through Hole	Press-Fit	1	Female	Non Specified - Single Edge	-40 C	105 ░C	Copper Alloy	23	Black	Single	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	0.1 "	2.54 mm
EDAC Inc. 725-023-520-101	1	Polyester Thermoplastic	23	Gold	Through Hole	Press-Fit	1	Female	Non Specified - Single Edge	-40 C	105 ░C	Copper Alloy	23	Black	Single	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	0.1 "	2.54 mm
