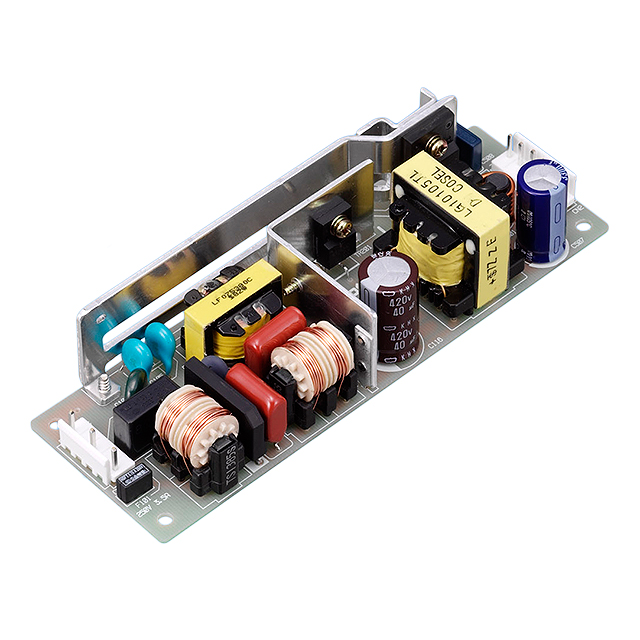

LFA75F Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
AC/DC CONVERTER 36V
| Part | Minimum Load Required | Standard Number | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension | Number of Outputs | Current - Output 1 | Type | Voltage - Output 1 [custom] | Efficiency | Applications | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Isolation | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | 60950-1 62368-1 | Chassis Mount | 1.97 in | 5.91 in | 1.32 in | 33.5 mm 50 mm 150.1 mm | 1 | 2.1 A | Open Frame | 36 V | 84.5 % | ITE (Commercial) | CE CSA cURus TUV UL | 70 °C | -10 °C | 3000 V | ||
Cosel USA, Inc. | 60950-1 62368-1 | Chassis Mount | 1.97 in | 5.91 in | 1.32 in | 33.5 mm 50 mm 150.1 mm | 1 | 6.3 A | Open Frame | 83 % | ITE (Commercial) | CE CSA cURus TUV UL | 70 °C | -10 °C | 3000 V | 12 V | ||
Cosel USA, Inc. | 60950-1 62368-1 | Chassis Mount | 1.97 in | 5.91 in | 1.32 in | 33.5 mm 50 mm 150.1 mm | 1 | 1.6 A | Open Frame | 84.5 % | ITE (Commercial) | CE CSA cURus TUV UL | 70 °C | -10 °C | 3000 V | 48 V | ||
Cosel USA, Inc. | 60950-1 62368-1 | Chassis Mount | 1.97 in | 5.91 in | 1.32 in | 33.5 mm 50 mm 150.1 mm | 1 | 15 A | Open Frame | 80 % | ITE (Commercial) | CE CSA cURus TUV UL | 70 °C | -10 °C | 3000 V | 5 V | ||
Cosel USA, Inc. | 60950-1 62368-1 | Chassis Mount | 1.97 in | 5.91 in | 1.32 in | 33.5 mm 50 mm 150.1 mm | 1 | 15 A | Open Frame | 75 % | ITE (Commercial) | CE CSA cURus TUV UL | 70 °C | -10 °C | 3000 V | 3.3 V | ||

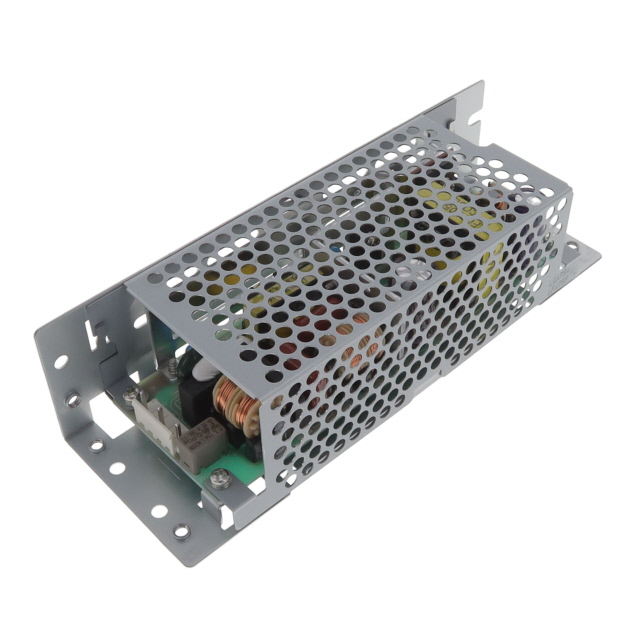

 Cosel USA, Inc. | 60950-1 62368-1 | Chassis Mount | 1.97 in | 5.91 in | 1.32 in | 33.5 mm 50 mm 150.1 mm | 1 | 15 A | Enclosed | 80 % | ITE (Commercial) | CE CSA cURus TUV UL | 70 °C | -10 °C | 3000 V | 5 V | ||
Cosel USA, Inc. | 60950-1 62368-1 | Chassis Mount | 1.97 in | 5.91 in | 1.32 in | 33.5 mm 50 mm 150.1 mm | 1 | 3.2 A | Open Frame | 84.5 % | ITE (Commercial) | CE CSA cURus TUV UL | 70 °C | -10 °C | 3000 V | 24 V | ||
Cosel USA, Inc. | 60950-1 62368-1 | Chassis Mount | 1.97 in | 5.91 in | 1.32 in | 33.5 mm 50 mm 150.1 mm | 1 | 5 A | Enclosed | 83 % | ITE (Commercial) | CE CSA cURus TUV UL | 70 °C | -10 °C | 3000 V | 15 V | ||
Cosel USA, Inc. | 60950-1 62368-1 | Chassis Mount | 1.97 in | 5.91 in | 1.32 in | 33.5 mm 50 mm 150.1 mm | 1 | 6.3 A | Open Frame | 83 % | ITE (Commercial) | CE CSA cURus TUV UL | 70 °C | -10 °C | 3000 V | 12 V | ||
Cosel USA, Inc. | 60950-1 62368-1 | Chassis Mount | 1.97 in | 5.91 in | 1.32 in | 33.5 mm 50 mm 150.1 mm | 1 | 3.2 A | Open Frame | 84.5 % | ITE (Commercial) | CE CSA cURus TUV UL | 70 °C | -10 °C | 3000 V | 24 V |
