NSS12100XV6 Series

Low VCE(sat) Transistor, PNP, 12 V, 1.0 A

Catalog

Low VCE(sat) Transistor, PNP, 12 V, 1.0 A

Part	Current - Collector Cutoff (Max) [Max]	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Mounting Type	Transistor Type	Operating Temperature [Min]	Operating Temperature [Max]	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Supplier Device Package	Frequency - Transition
ON Semiconductor NSV12100XV6T1G	100 nA	SOT-563 SOT-666	12 V	440 mV	Surface Mount	PNP	-55 °C	150 °C	650 mW	1 A	100	SOT-563

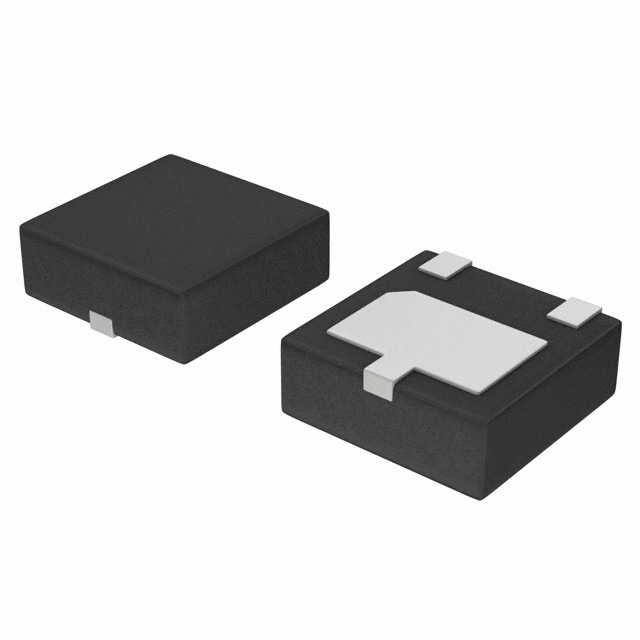

ON Semiconductor NSV12100UW3TCG	100 nA	3-WDFN Exposed Pad	12 V	440 mV	Surface Mount	PNP	-55 °C	150 °C	740 mW	1 A	100	3-WDFN (2x2)	200 MHz

Catalog

Low VCE(sat) Transistor, PNP, 12 V, 1.0 A

Key Features

• High Current Capability (1 A)

• High Power Handling (Up to 740 mW)

• Low VCE(s) (200 mV Typical @ 500 mA)

• Small Size

• Low Noise

• This is a Pb-Free Device

• High Specific Current and Power Capability Reduces Required PCB Area

• Reduced Parasitic Losses Increases Battery Life

• Digital cameras and MP3 players

Description

ON Semiconductor's e2PowerEdge family of Low VCE(sat)Bipolar Transistors are miniature surface mount devices featuring ultra low saturation voltage (VCE(sat)) and high current gain capability. These are designed for use in low voltage, high speed switching applications where affordable efficient energy control is important. Typical application are DC-DC converters and power management in portable and battery powered products such as cellular and cordless phones, PDAs, computers, printers, digital cameras and MP3 players. Other applications are low voltage motor controls in mass storage products such as disc drives and tape drives. In the automotive industry they can be used in air bag deployment and in the instrument cluster. The high current gain allows e2PowerEdge devices to be driven directly from PMU's control outputs, and the Linear Gain (Beta) makes them ideal components in analog amplifiers.
