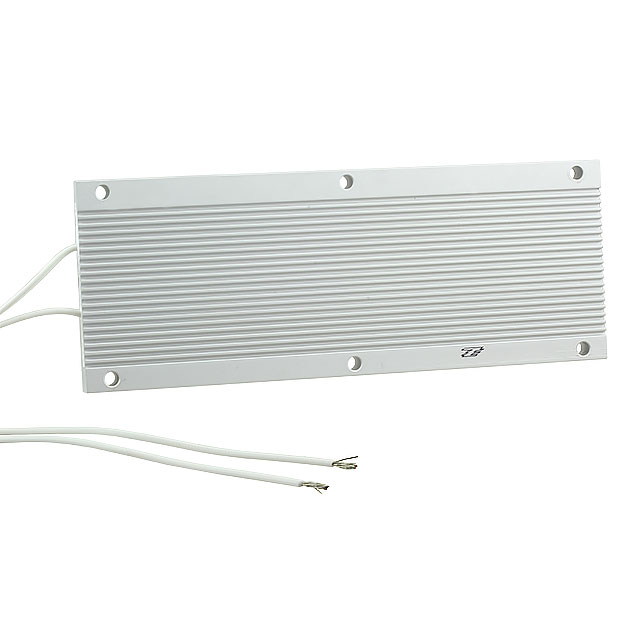

TJT250 Series

Catalog

RES CHAS MNT 1 OHM 5% 250W

Part	Package / Case	Temperature Coefficient	Lead Style	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Coating, Housing Type	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Resistance	Composition	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]
TE Connectivity AMP Connectors TJT2501R0J	Rectangular Case	260 ppm/°C	Wire Leads	10 mm	0.394 in	5 %	Aluminum	Screw Holes	250 °C	-25 °C	250 W	1 Ohms	Wirewound	3.15 in	7.087 in	80 mm	180 mm
TE Connectivity AMP Connectors TJT2501K5J	Rectangular Case	260 ppm/°C	Wire Leads	10 mm	0.394 in	5 %	Aluminum	Screw Holes	250 °C	-25 °C	250 W	1500 Ohms	Wirewound	3.15 in	7.087 in	80 mm	180 mm
TE Connectivity AMP Connectors TJT2501R0J	Rectangular Case	260 ppm/°C	Wire Leads	10 mm	0.394 in	5 %	Aluminum	Screw Holes	250 °C	-25 °C	250 W	1 Ohms	Wirewound	3.15 in	7.087 in	80 mm	180 mm
TE Connectivity AMP Connectors TJT25015RJ	Rectangular Case	260 ppm/°C	Wire Leads	10 mm	0.394 in	5 %	Aluminum	Screw Holes	250 °C	-25 °C	250 W	15 Ohms	Wirewound	3.15 in	7.087 in	80 mm	180 mm
