Eurocard Type B Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

DIN 41612 CONNECTOR, 96 CONTACTS, PLUG, 2.54 MM, 3 ROW, A + B + C

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Material Flammability Rating	Termination	Mounting Type	Style	Number of Positions Loaded	Number of Rows [custom]	Contact Finish	Number of Positions	Pitch	Pitch	Features	Connector Type	Number of Positions [custom]	Number of Positions [custom]	Style
TE Connectivity AMP Connectors 650913-5	-55 C	125 °C	Polyester Glass Filled	UL94 V-0	Solder	Right Angle Through Hole	C	All	3	Gold	96	0.1 "	2.54 mm	Board Lock	Plug Male Pins

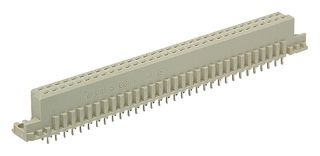

TE Connectivity AMP Connectors 5650860-5	-55 C	125 °C	Polymer Thermoplastic Glass Filled	UL94 V-0	Solder	Through Hole	B	All	2	Gold	64	0.1 "	2.54 mm		Receptacle Female Sockets
TE Connectivity AMP Connectors 650992-5					Press-Fit	Through Hole	C	All	3	Gold		0.1 "	2.54 mm		Receptacle Female Sockets	96	32
TE Connectivity AMP Connectors 5536461-5					Solder	Through Hole	B/2	All	2	Gold		0.1 "	2.54 mm	Board Lock	Receptacle Female Sockets			1/2 B
TE Connectivity AMP Connectors 6-1393644-6					Solder	Right Angle Through Hole	B	All	2	Gold Gold-Palladium	64	0.1 "	2.54 mm		Plug Male Pins
TE Connectivity AMP Connectors 148103-1	-55 C	125 °C	Polymer Thermoplastic Glass Filled		Solder	Right Angle Through Hole	B/2	All	2	Gold		0.1 "	2.54 mm		Plug Male Pins			1/2 B
TE Connectivity AMP Connectors 650861-5					Solder	Through Hole	B	All	2	Gold	64	0.1 "	2.54 mm		Receptacle Female Sockets
TE Connectivity AMP Connectors 536461-5	-55 C	125 °C	Polyester Glass Filled		Solder	Through Hole	B/2	All	2			0.1 "	2.54 mm	Board Lock	Receptacle Female Sockets			1/2 B
TE Connectivity AMP Connectors 5650858-5					Solder	Through Hole	B/2	All	2	Gold		0.1 "	2.54 mm		Receptacle Female Sockets			1/2 B

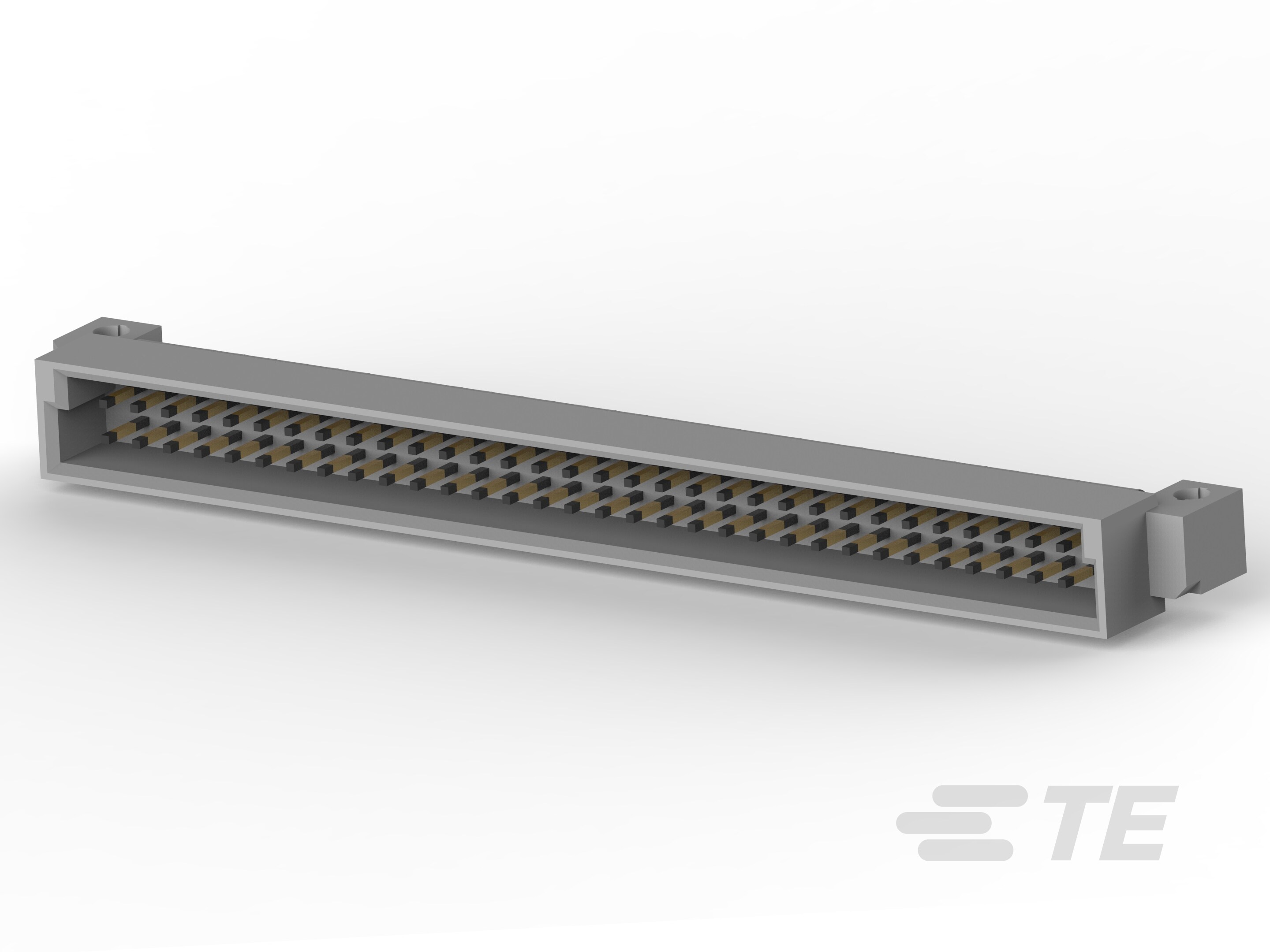

TE Connectivity AMP Connectors 536052-5					Solder	Right Angle Through Hole	B	All	2	Gold	64	0.1 "	2.54 mm		Plug Male Pins
