FGN.1F Series

Manufacturer: LEMO

Catalog

CONN PLUG MALE 8POS GOLD CRIMP

Part	Shell Finish	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Insert Material	Connector Type	Primary Material	Contact Finish - Mating	Current Rating (Amps)	Termination	Color	Shell Size - Insert	Shielding	Contact Material	Mounting Type	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening	Cable Opening	Material Flammability Rating	Ingress Protection	Shell Material	Orientation	Fastening Type	Number of Positions	Shell Size - Insert [custom]

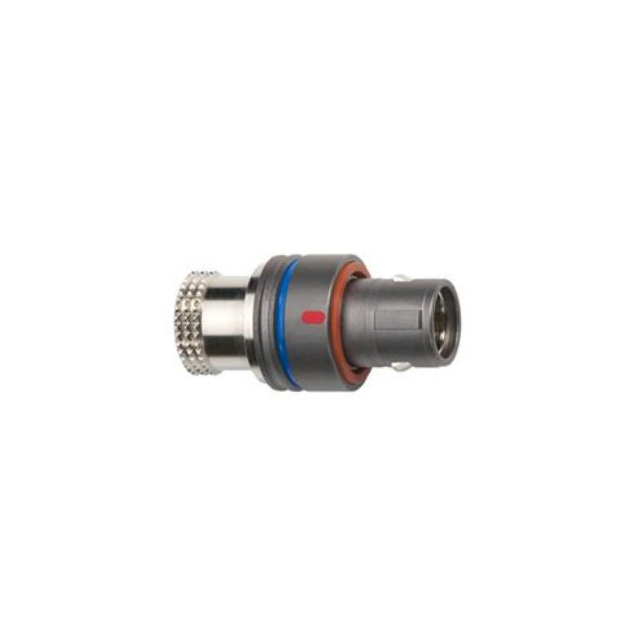

LEMO FGN.1F.308.XLC	Nickel	39.4 µin	1 µm	Polyetheretherketone (PEEK)	Plug Male Pins	Metal	Gold	5 A	Crimp	Gray	308	Shielded	Brass	Free Hanging (In-Line)	Aerospace	-15 °C	200 °C	10.7 mm	0.421 in	UL94 V-0	IP67 - Dust Tight Waterproof	Aluminum Alloy	N (Normal)	Push-Pull	8
LEMO FGN.1F.565.ZZC
LEMO FGN.1F.308.XLCS	Nickel	39.4 µin	1 µm	Polyetheretherketone (PEEK)	Plug Male Pins	Metal	Gold	5 A	Crimp	Gray	308	Shielded	Brass	Free Hanging (In-Line)	Aerospace	-15 °C	200 °C	10.7 mm	0.421 in	UL94 V-0	IP67 - Dust Tight Waterproof	Aluminum Alloy	N (Normal)	Push-Pull	8
LEMO FGN.1F.305.YLC	Nickel	39.4 µin	1 µm	Polyetheretherketone (PEEK)	Plug Male Pins	Metal	Gold	9 A	Crimp	Gray	305	Shielded	Brass	Free Hanging (In-Line)	Aerospace	-15 °C	200 °C	10.7 mm	0.421 in	UL94 V-0	IP67 - Dust Tight Waterproof	Aluminum Alloy	N (Normal)	Push-Pull	5
LEMO FGN.1F.308.XLBS	Nickel	39.4 µin	1 µm	Polyetheretherketone (PEEK)	Plug Male Pins	Metal	Gold	5 A	Crimp	Gray	308	Shielded	Brass	Free Hanging (In-Line)	Aerospace	-15 °C	200 °C	10.7 mm	0.421 in	UL94 V-0	IP67 - Dust Tight Waterproof	Aluminum Alloy	N (Normal)	Push-Pull	8

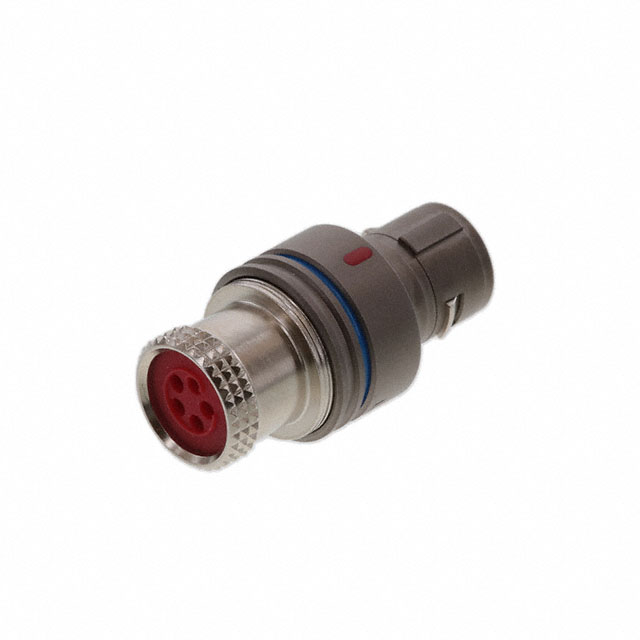

LEMO FGN.1F.305.XLC	Nickel	39.4 µin	1 µm	Polyetheretherketone (PEEK)	Plug Male Pins	Metal	Gold	9 A	Crimp	Gray	305	Shielded	Brass	Free Hanging (In-Line)	Aerospace	-15 °C	200 °C	10.7 mm	0.421 in	UL94 V-0	IP67 - Dust Tight Waterproof	Aluminum Alloy	N (Normal)	Push-Pull	5
LEMO FGN.1F.303.XLC	Nickel	39.4 µin	1 µm	Polyetheretherketone (PEEK)	Plug Male Pins	Metal	Gold	12 Amps	Crimp	Gray	303	Shielded	Brass	Free Hanging (In-Line)	Aerospace	-15 °C	200 °C	10.7 mm	0.421 in	UL94 V-0	IP67 - Dust Tight Waterproof	Aluminum Alloy	N (Normal)	Push-Pull
LEMO FGN.1F.308.YLC	Nickel	39.4 µin	1 µm	Polyetheretherketone (PEEK)	Plug Male Pins	Metal	Gold	5 A	Crimp	Gray	308	Shielded	Brass	Free Hanging (In-Line)	Aerospace	-15 °C	200 °C	10.7 mm	0.421 in	UL94 V-0	IP67 - Dust Tight Waterproof	Aluminum Alloy	N (Normal)	Push-Pull	8
LEMO FGN.1F.307.YLC	Nickel	39.4 µin	1 µm	Polyetheretherketone (PEEK)	Plug Male Pins	Metal	Gold	7 A	Crimp	Gray		Shielded	Brass	Free Hanging (In-Line)	Aerospace	-15 °C	200 °C	10.7 mm	0.421 in	UL94 V-0	IP67 - Dust Tight Waterproof	Aluminum Alloy	N (Normal)	Push-Pull	7	307
LEMO FGN.1F.307.CLC	Chrome	39.4 µin	1 µm	Polyetheretherketone (PEEK)	Plug Male Pins	Metal	Gold	7 A	Crimp	Silver		Shielded	Brass	Free Hanging (In-Line)	Aerospace	-55 C	200 °C	10.7 mm	0.421 in	UL94 V-0	IP67 - Dust Tight Waterproof	Brass	N (Normal)	Push-Pull	7	307
