115-91 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

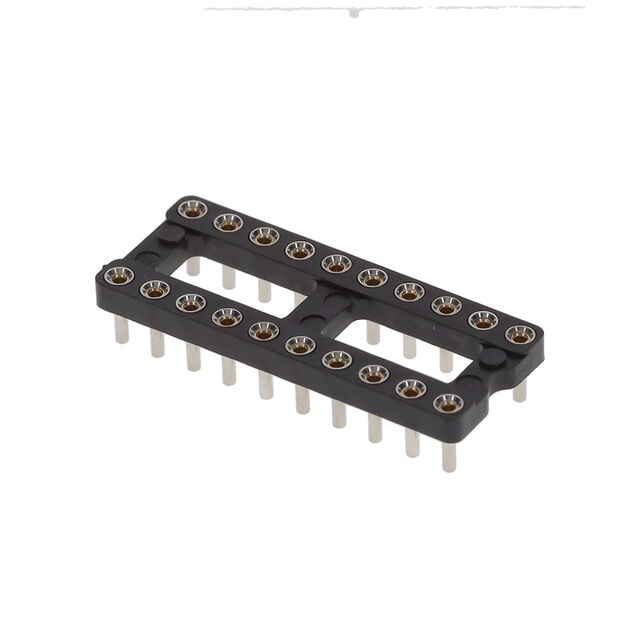

SOCKET IC OPEN LOWPRO .400 20POS

Part	Contact Resistance	Material Flammability Rating	Termination Post Length	Termination Post Length	Current Rating (Amps)	Type	Type	Type	Pitch - Mating	Pitch - Mating	Termination	Contact Material - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Positions or Pins (Grid)	Pitch - Post	Pitch - Post	Contact Material - Post	Mounting Type	Housing Material	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [y]	Type [custom]	Type [custom]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 115-91-420-41-003000	10 mOhm	UL94 V-0	0.108 in	2.74 mm	3 A	7.62 mm	0.3 in	DIP	0.1 "	2.54 mm	Solder	Beryllium Copper	0.25 µm	10 µin	Gold	200 µin	5.08 µm	Tin-Lead	-55 C	125 °C	Open Frame	20	0.1 in	2.54 mm	Brass Alloy	Through Hole	Thermoplastic
Mill-Max Manufacturing Corp. 115-91-304-41-001000	10 mOhm	UL94 V-0	0.108 in	2.74 mm	3 A	7.62 mm	0.3 in	DIP	0.1 "	2.54 mm	Solder	Beryllium Copper	0.25 µm	10 µin	Gold	200 µin	5.08 µm	Tin-Lead	-55 C	125 °C	Open Frame	4 pins	0.1 in	2.54 mm	Brass Alloy	Through Hole	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2 x 2
Mill-Max Manufacturing Corp. 115-91-324-41-001000	10 mOhm	UL94 V-0	0.108 in	2.74 mm	3 A	7.62 mm	0.3 in	DIP	0.1 "	2.54 mm	Solder	Beryllium Copper	0.25 µm	10 µin	Gold	200 µin	5.08 µm	Tin-Lead	-55 C	125 °C	Open Frame	24	0.1 in	2.54 mm	Brass Alloy	Through Hole	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester		12	2
Mill-Max Manufacturing Corp. 115-91-310-41-001000	10 mOhm	UL94 V-0	0.108 in	2.74 mm	3 A	7.62 mm	0.3 in	DIP	0.1 "	2.54 mm	Solder	Beryllium Copper	0.25 µm	10 µin	Gold	200 µin	5.08 µm	Tin-Lead	-55 C	125 °C	Open Frame	10	0.1 in	2.54 mm	Brass Alloy	Through Hole	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester		2	5
Mill-Max Manufacturing Corp. 115-91-628-41-001000	10 mOhm	UL94 V-0	0.108 in	2.74 mm	3 A			DIP	0.1 "	2.54 mm	Solder	Beryllium Copper	0.25 µm	10 µin	Gold	200 µin	5.08 µm	Tin-Lead	-55 C	125 °C	Open Frame	28	0.1 in	2.54 mm	Brass Alloy	Through Hole	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester				15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 115-91-652-41-001000	10 mOhm	UL94 V-0	0.108 in	2.74 mm	3 A			DIP	0.1 "	2.54 mm	Solder	Beryllium Copper	0.25 µm	10 µin	Gold	200 µin	5.08 µm	Tin-Lead	-55 C	125 °C	Open Frame		0.1 in	2.54 mm	Brass Alloy	Through Hole	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester				15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 115-91-306-41-003000	10 mOhm	UL94 V-0	0.108 in	2.74 mm	3 A	7.62 mm	0.3 in	DIP	0.1 "	2.54 mm	Solder	Beryllium Copper	0.25 µm	10 µin	Gold	200 µin	5.08 µm	Tin-Lead	-55 C	125 °C	Open Frame	6	0.1 in	2.54 mm	Brass Alloy	Through Hole	Thermoplastic		2	3 positions or pins
Mill-Max Manufacturing Corp. 115-91-422-41-003000	10 mOhm	UL94 V-0	0.108 in	2.74 mm	3 A		0.4 in	DIP	0.1 "	2.54 mm	Solder	Beryllium Copper	0.25 µm	10 µin	Gold	200 µin	5.08 µm	Tin-Lead	-55 C	125 °C	Open Frame	22	0.1 in	2.54 mm	Brass Alloy	Through Hole	Thermoplastic		2	11
Mill-Max Manufacturing Corp. 115-91-650-41-003000	10 mOhm	UL94 V-0	0.108 in	2.74 mm	3 A			DIP	0.1 "	2.54 mm	Solder	Beryllium Copper	0.25 µm	10 µin	Gold	200 µin	5.08 µm	Tin-Lead	-55 C	125 °C	Open Frame		0.1 in	2.54 mm	Brass Alloy	Through Hole	Thermoplastic				15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 115-91-648-41-001000	10 mOhm	UL94 V-0	0.108 in	2.74 mm	3 A			DIP	0.1 "	2.54 mm	Solder	Beryllium Copper	0.25 µm	10 µin	Gold	200 µin	5.08 µm	Tin-Lead	-55 C	125 °C	Open Frame		0.1 in	2.54 mm	Brass Alloy	Through Hole	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester		24	2	15.24 mm	0.6 in	48
