CABLE 319 Series
Manufacturer: GCT
Beta
⌘K

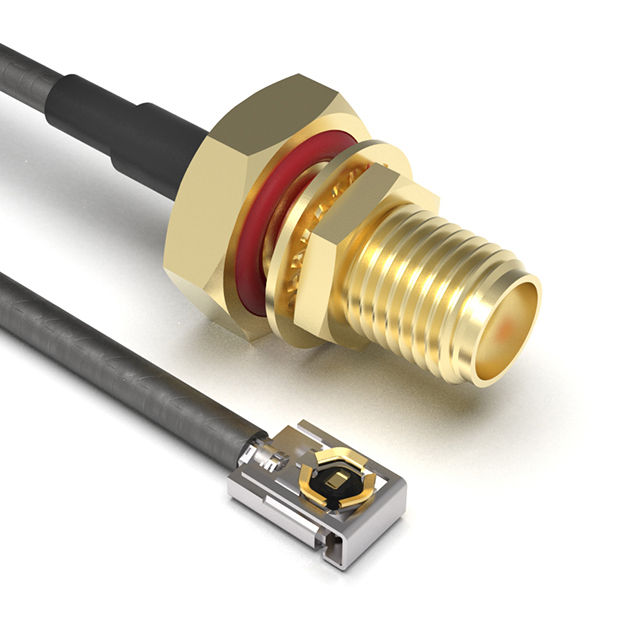

CBL ASSY MHF1 LK-SMA J-PL 7.874"
| Part | Length | Length | 1st Contact Gender | 2nd Connector | Ingress Protection | 1st Connector | Color | Features | Operating Temperature [Max] | Operating Temperature [Min] | Frequency - Max [Max] | Style | Overall Impedance | Cable Type | Cable Type [diameter] | 2nd Contact Gender | 2nd Connector Mounting Type | Cable Impedance | 1st Connector Mounting Type | 1st Connector Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
200 mm | 7.874 in | Female | I-PEX MHFI LK (Locking) Plug Right Angle | IP67/IP68 | SMA Jack | Black | IP Rated Unmated | 85 °C | -40 C | 3 GHz | I-PEX MHF1 LK to SMA | 50 Ohms | Coaxial Cable | 1.37 mm | Female | Free Hanging (In-Line) | 50 Ohms | Panel Mount | Bulkhead - Front Side Nut | |
200 mm | 7.874 in | Female | IPEX MHFI LK (Locking) Plug Right Angle | IP67/IP68 | SMA Jack | Black | IP Rated Unmated | 85 °C | -40 C | 3 GHz | IPEX MHF1 LK to SMA | 50 Ohms | Coaxial Cable | 1.37 mm | Female | Free Hanging (In-Line) | 50 Ohms | Panel Mount | Bulkhead - Front Side Nut |
