GPCL0C-P Series
Manufacturer: ODU
Beta
⌘K

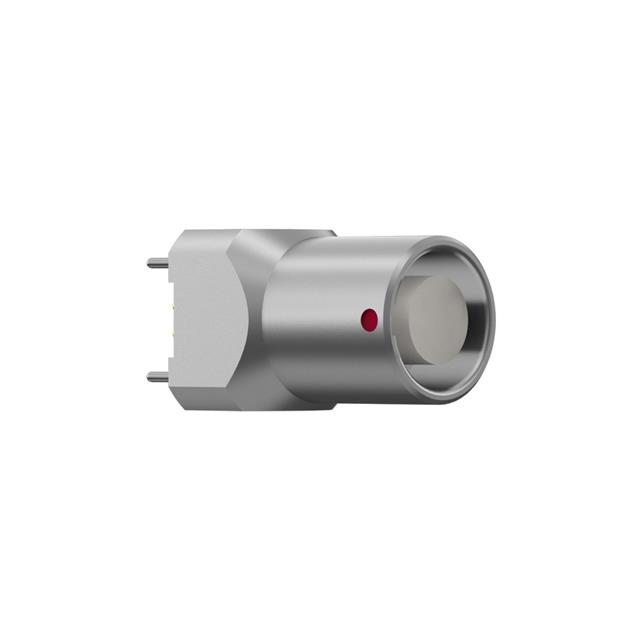

ODU MINI-SNAP RECEPT, STY P, SZ
| Part | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Primary Material | Contact Finish - Mating | Ingress Protection | Number of Positions | Fastening Type | Shell Finish | Orientation | Current Rating (Amps) | Features | Voltage Rating | Applications | Color | Shell Size - Insert | Shell Material | Contact Material | Termination | Connector Type | Insert Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Through Hole | 120 °C | -40 C | Unshielded | Metal | Gold | IP50 - Dust Protected | 4 | Push-Pull | Chrome over Nickel | 0 | 4 A | Ground | 300 VDC | Industrial Medical Military Testing Equipment & Measurement | Silver | 00 | Brass | Brass | Solder | Receptacle Female Sockets | Polyetheretherketone (PEEK) |
